S46B Liftgate Unlatch Switch (TB4)
|
|

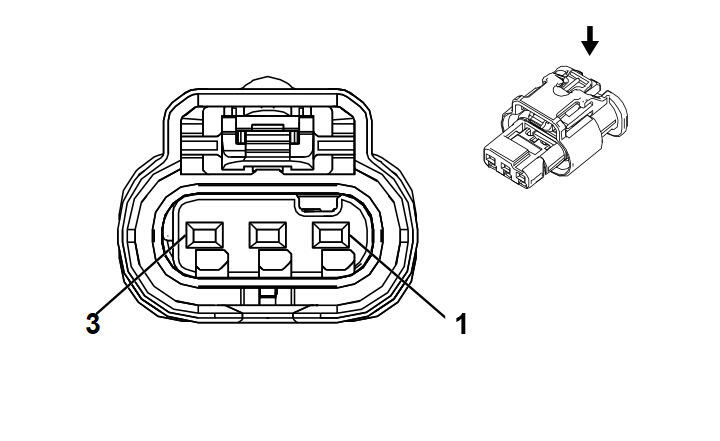

Connector Part Information
- Harness Type: Rear Bumper
- OEM Connector: 13868589
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 Multiple Contact Point Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN/BN |
4118 |
Local Interconnect Network Serial Data Bus 18 |
I |
- |
| 2 |
0.5 |
RD/L-GN |
3140 |
Battery Positive Voltage |
I |
- |
| 3 |
0.5 |
BK |
1450 |
Ground |
I |
- |
