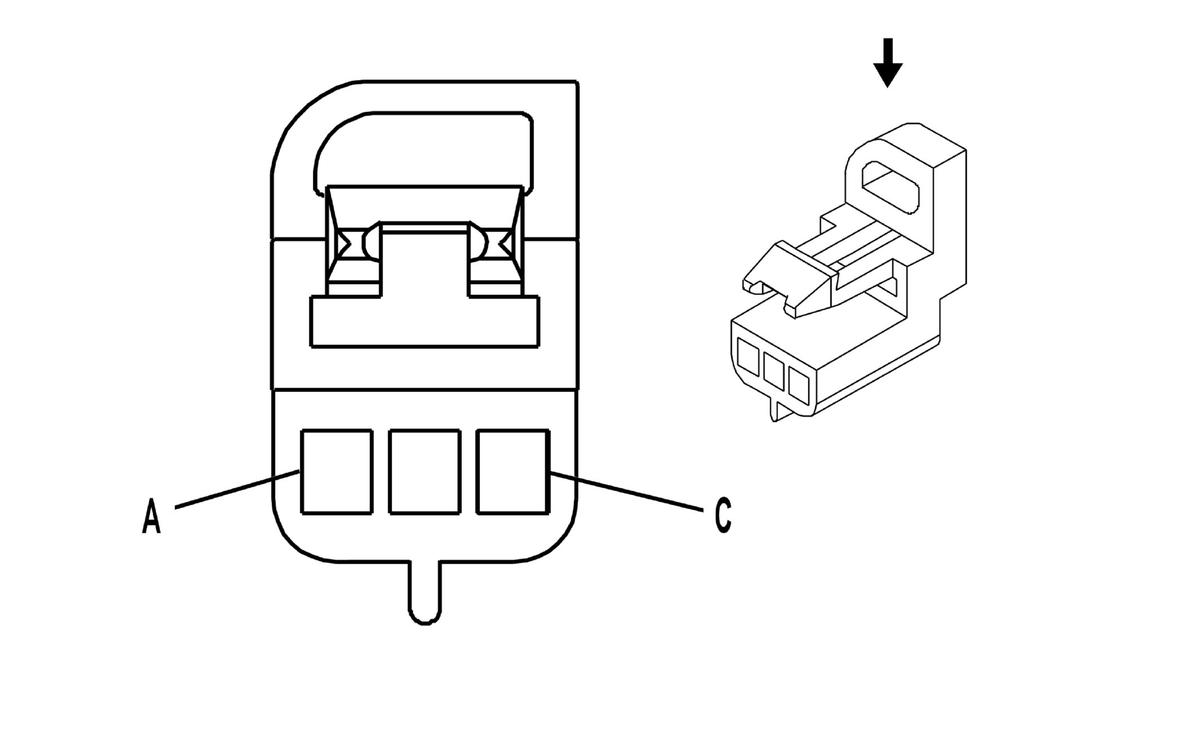

Q8 Control Solenoid Valve Assembly X3 (MYB, MYC or MYD)
|
|
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 13539487
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Metri Pack 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.35 |
GN |
- |
Input Speed Sensor (ISS) Signal |
I |
- |
| B |
0.35 |
RD |
- |
ISS/OSS Supply Voltage |
I |
- |
| C |
0.35 |
BK |
- |
Output Speed Sensor (OSS) Signal |
I |
- |
