P22B Video Display - 3rd Row
|
|

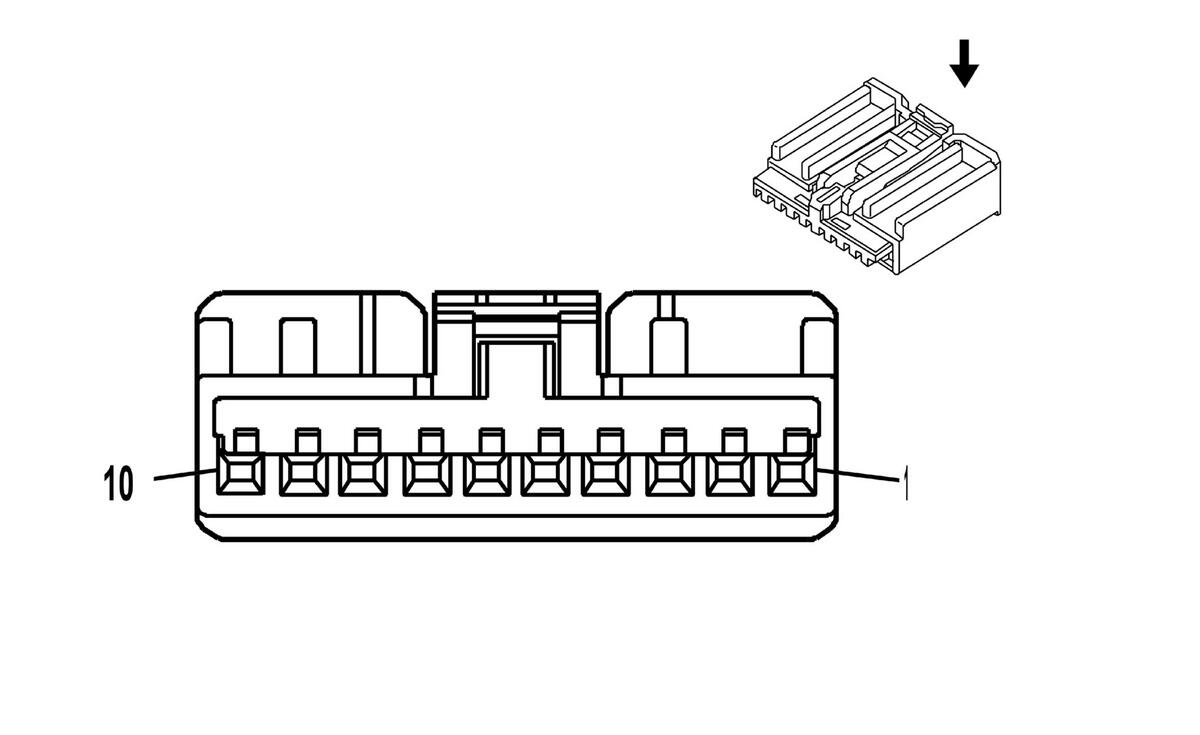

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13631701
- Service Connector: 19329934
- Description: 10-Way F 0.64 Kaizen Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13327119 |
J-35616-64B (L-BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT/L-GN |
7558 |
LED Ambient Lighting Control 2 |
I |
- |
| 2 |
0.5 |
BK |
1050 |
Ground |
I |
- |
| 3 |
0.5 |
GY |
157 |
Interior Lamp Control |
I |
- |
| 4 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
| 5 |
0.5 |
WH/BN |
6815 |
Inadvertent Power Control |
I |
- |
| 6-7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK |
2550 |
Ground |
I |
- |
| 9 |
0.5 |
L-GN/YE |
7066 |
Entertainment Remote Enable Signal |
I |
- |
| 10 |
0.5 |
RD/L-GN |
1540 |
Battery Positive Voltage |
I |
- |
