Instrument Cluster Wiring Schematics: Gages

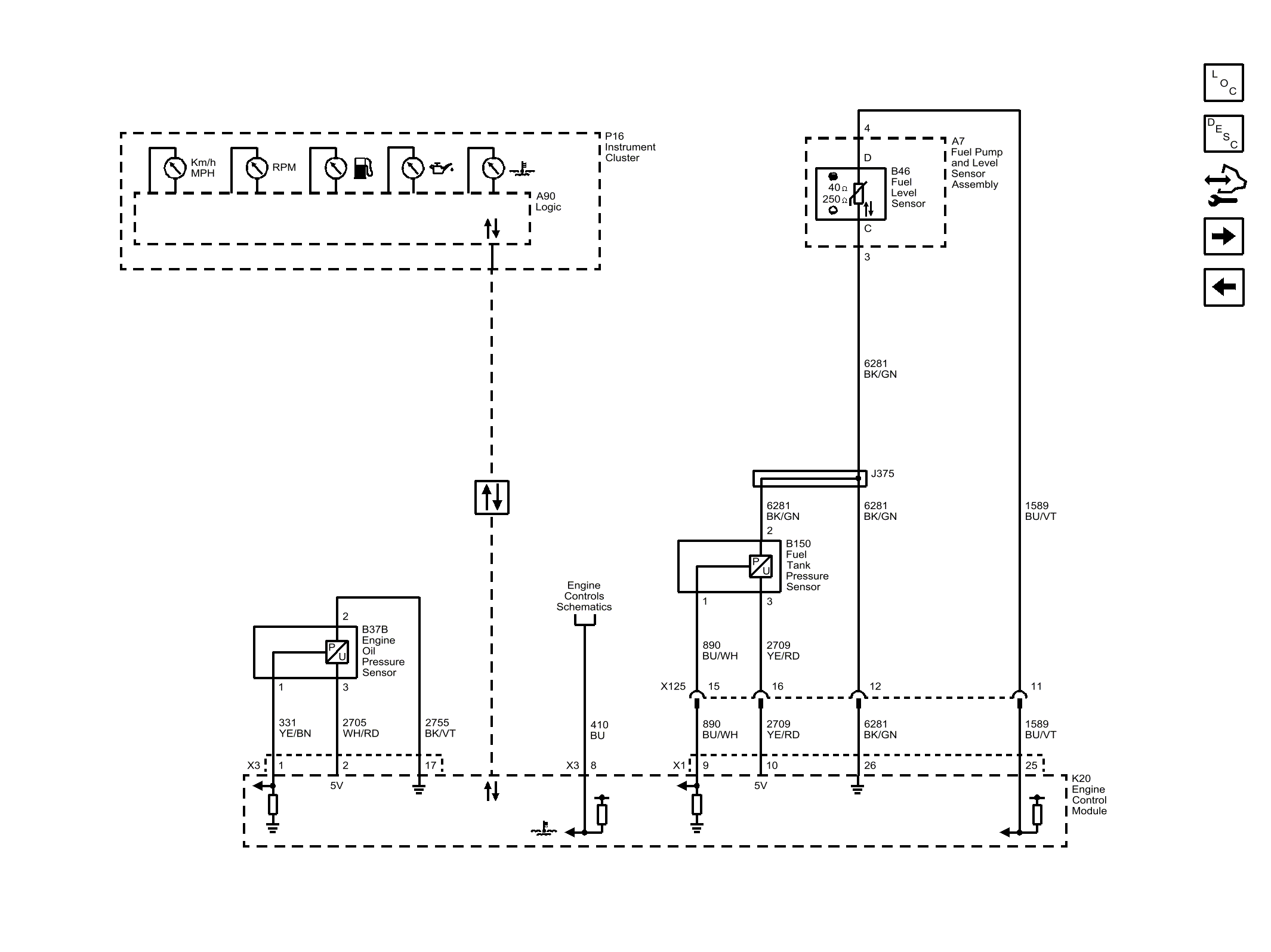

Fig 1: Gages

GM3636937

Courtesy of GENERAL MOTORS COMPANY
