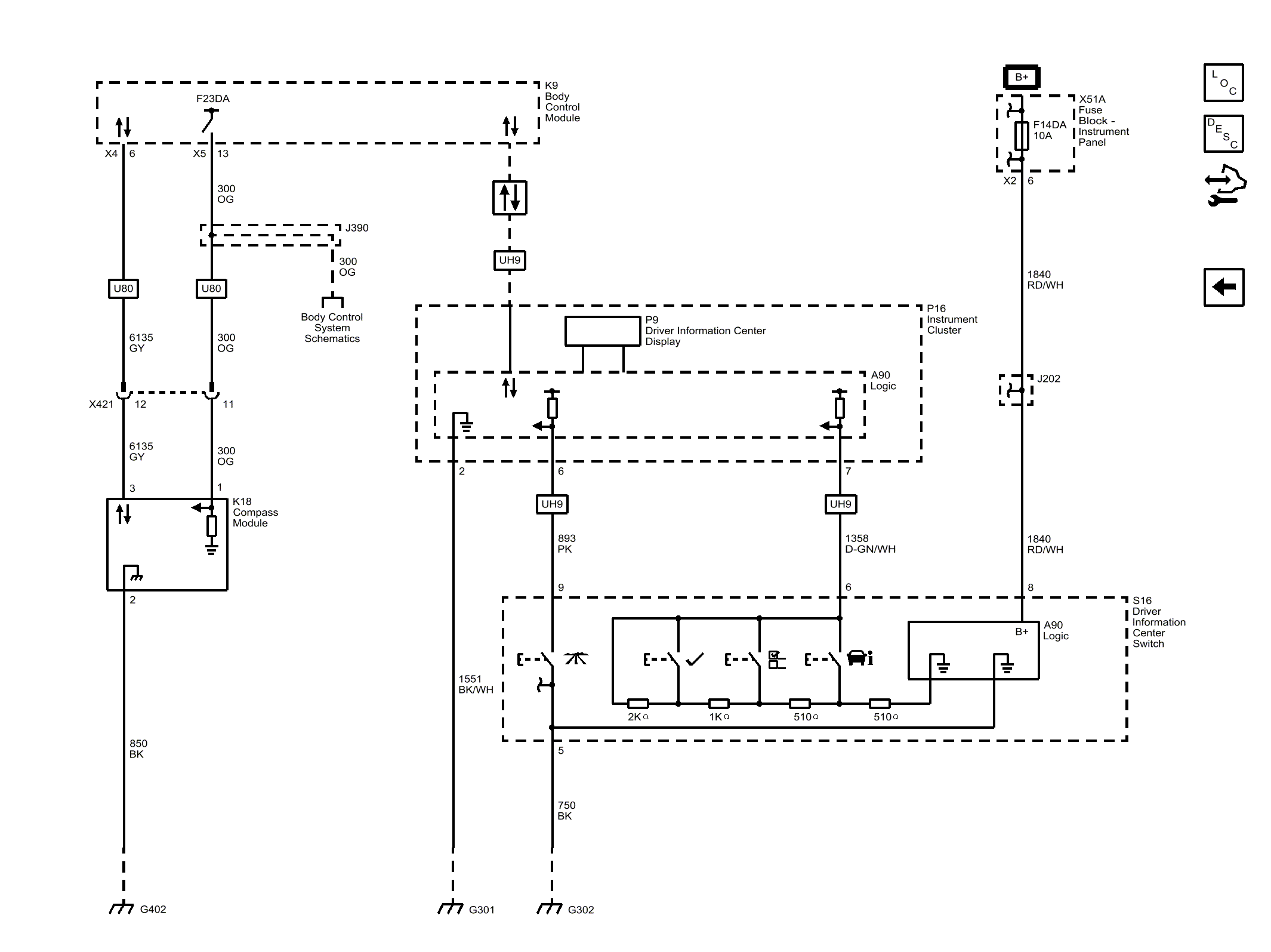

Home >> GMC >> 2015 >> Acadia SLT, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic and Wiring Diagrams >> Instrument Cluster Wiring Schematics >> UH9 and U80
