F7DA, F8DA, F9DA, F11DA, F12DA, F17DA and F18DA

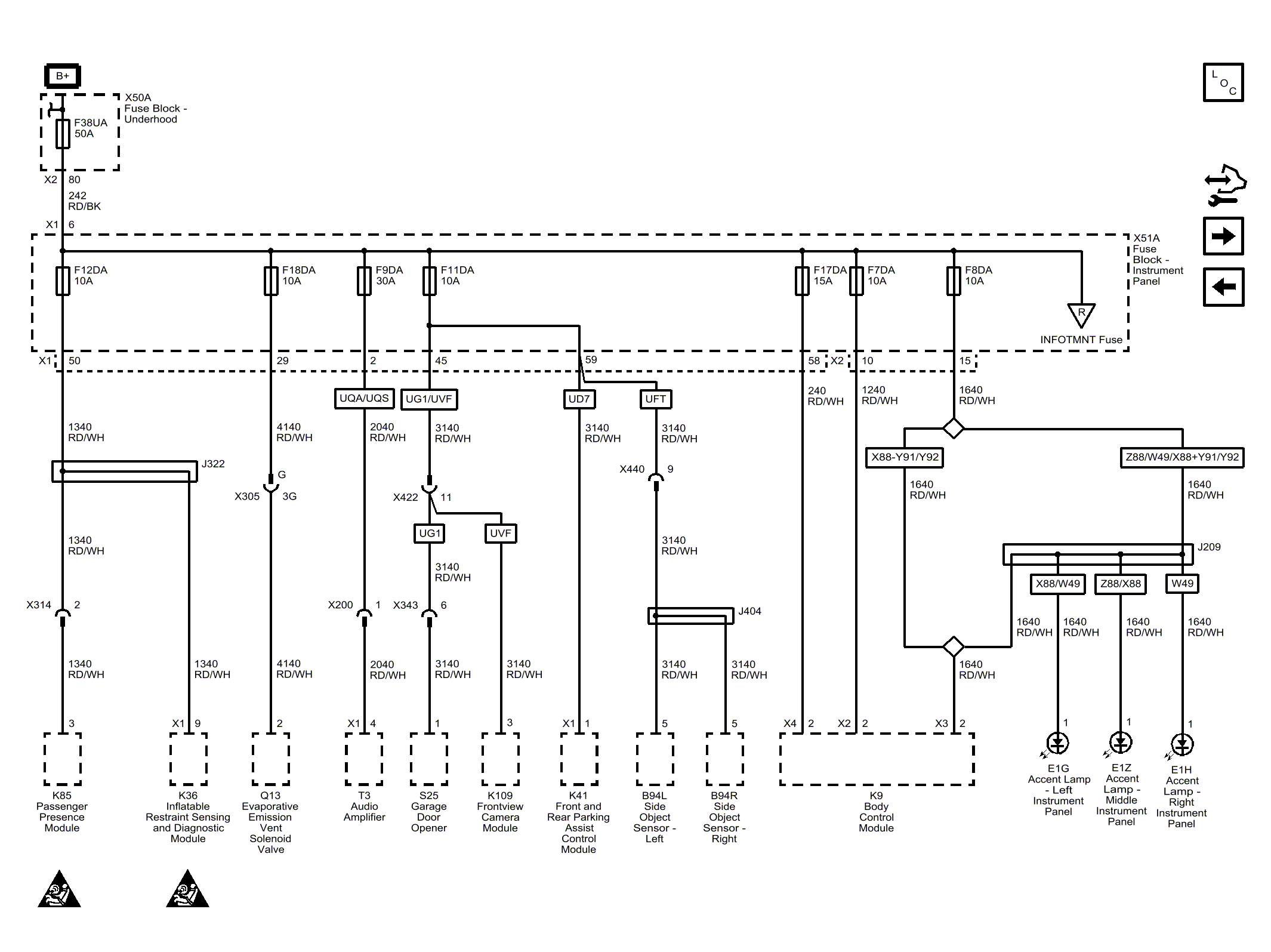

Fig 1: F7DA, F8DA, F9DA, F11DA, F12DA, F17DA and F18DA

GM3717831

Courtesy of GENERAL MOTORS COMPANY
