F6UA, F8UA, F14UA, F15UA, F20UA, F21UA, F30UA, F36UA, F42UA, F44UA, F46UA, F47UA and F50UA

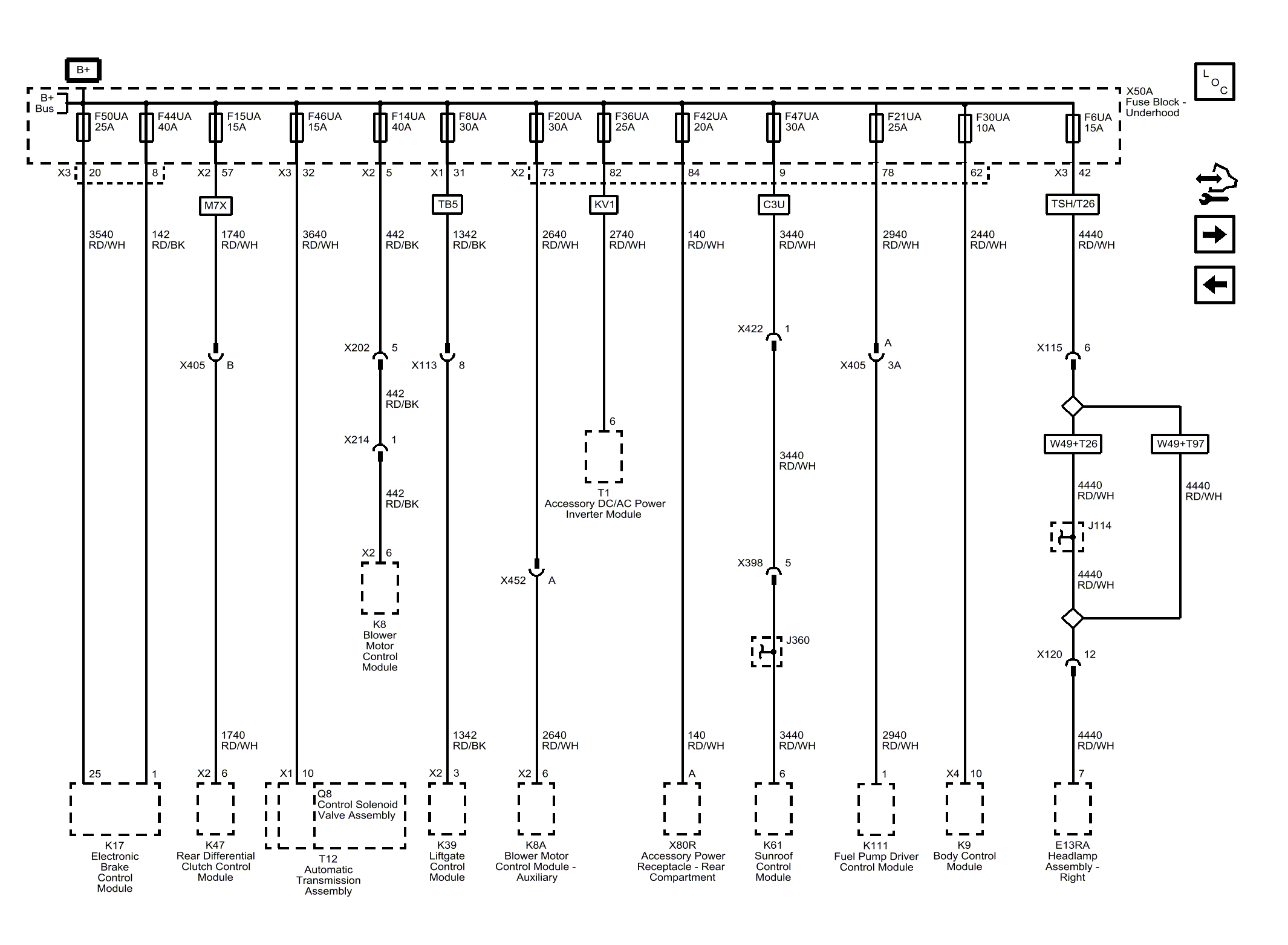

Fig 1: F6UA, F8UA, F14UA, F15UA, F20UA, F21UA, F30UA, F36UA, F42UA, F44UA, F46UA, F47UA and F50UA
GM3717839Courtesy of GENERAL MOTORS COMPANY
