F2DA, F3DA, F4DA, F5DA, F6DA, F27DA, F28DA and F30DA

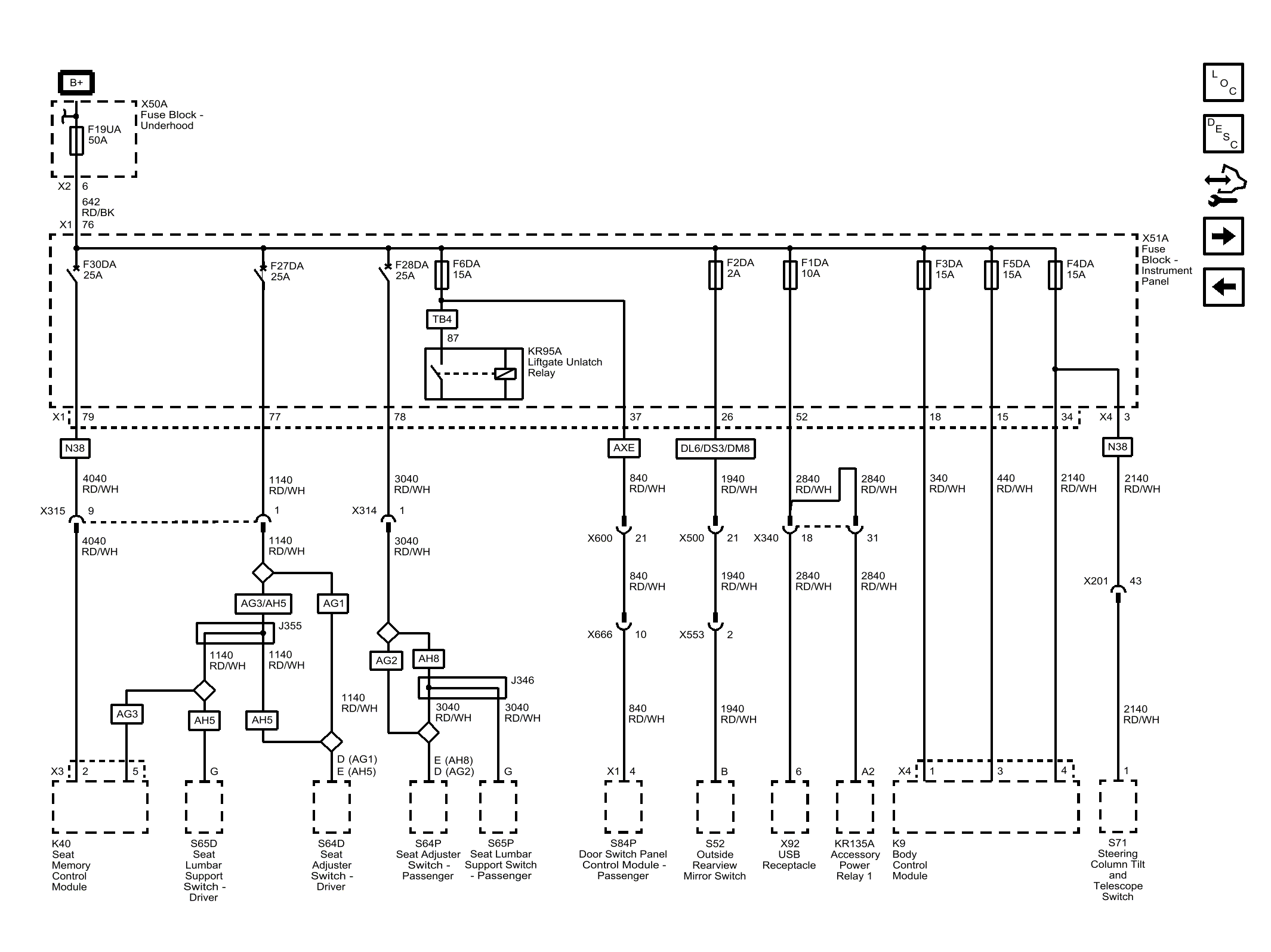

Fig 1: F2DA, F3DA, F4DA, F5DA, F6DA, F27DA, F28DA and F30DA

GM3717833

Courtesy of GENERAL MOTORS COMPANY
