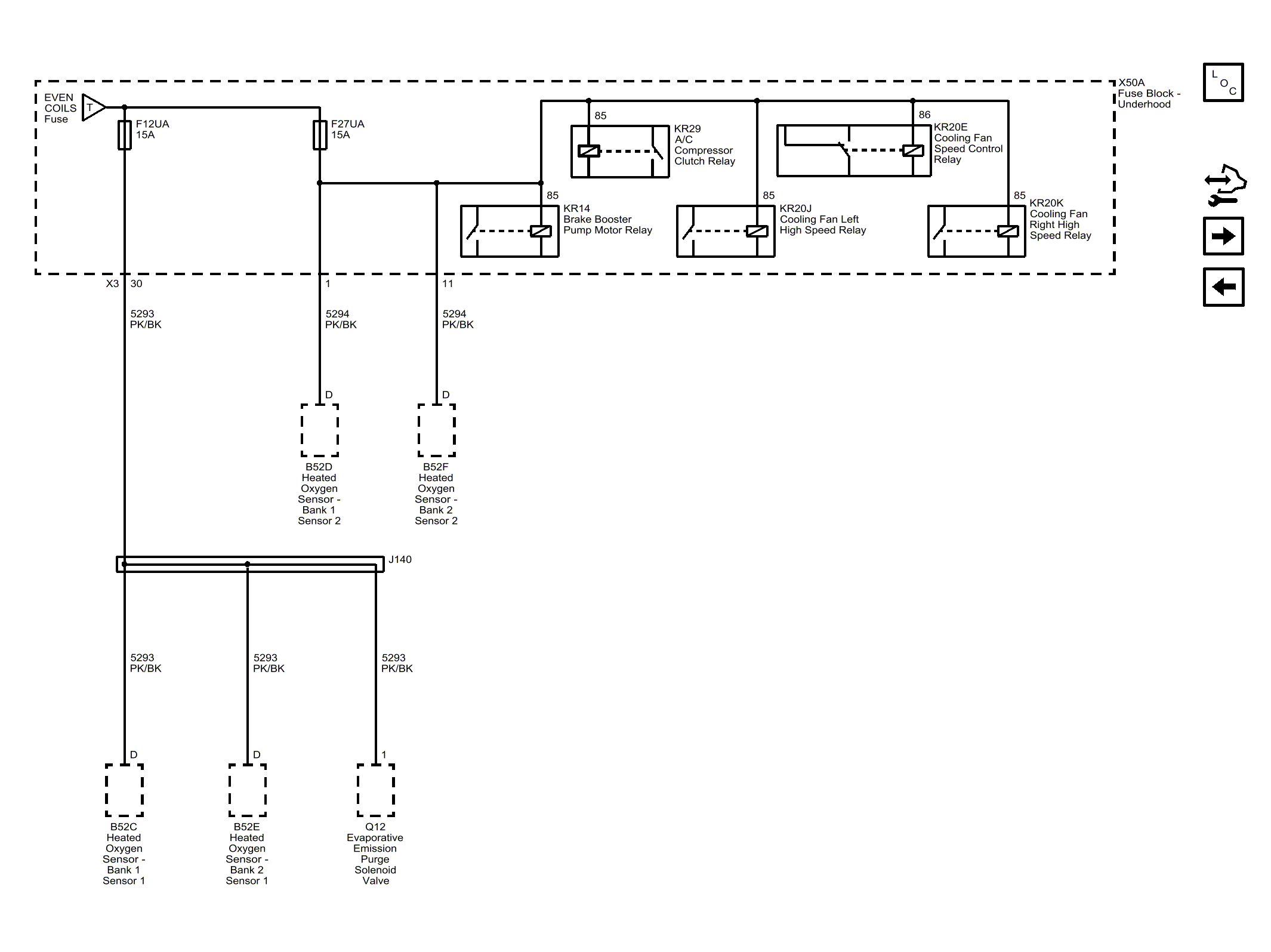

Home >> GMC >> 2015 >> Acadia Denali, FWD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Wiring Harness Routing Diagrams And Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Power Distribution Schematics >> F12UA and F27UA
