Steering Column Harness Routing

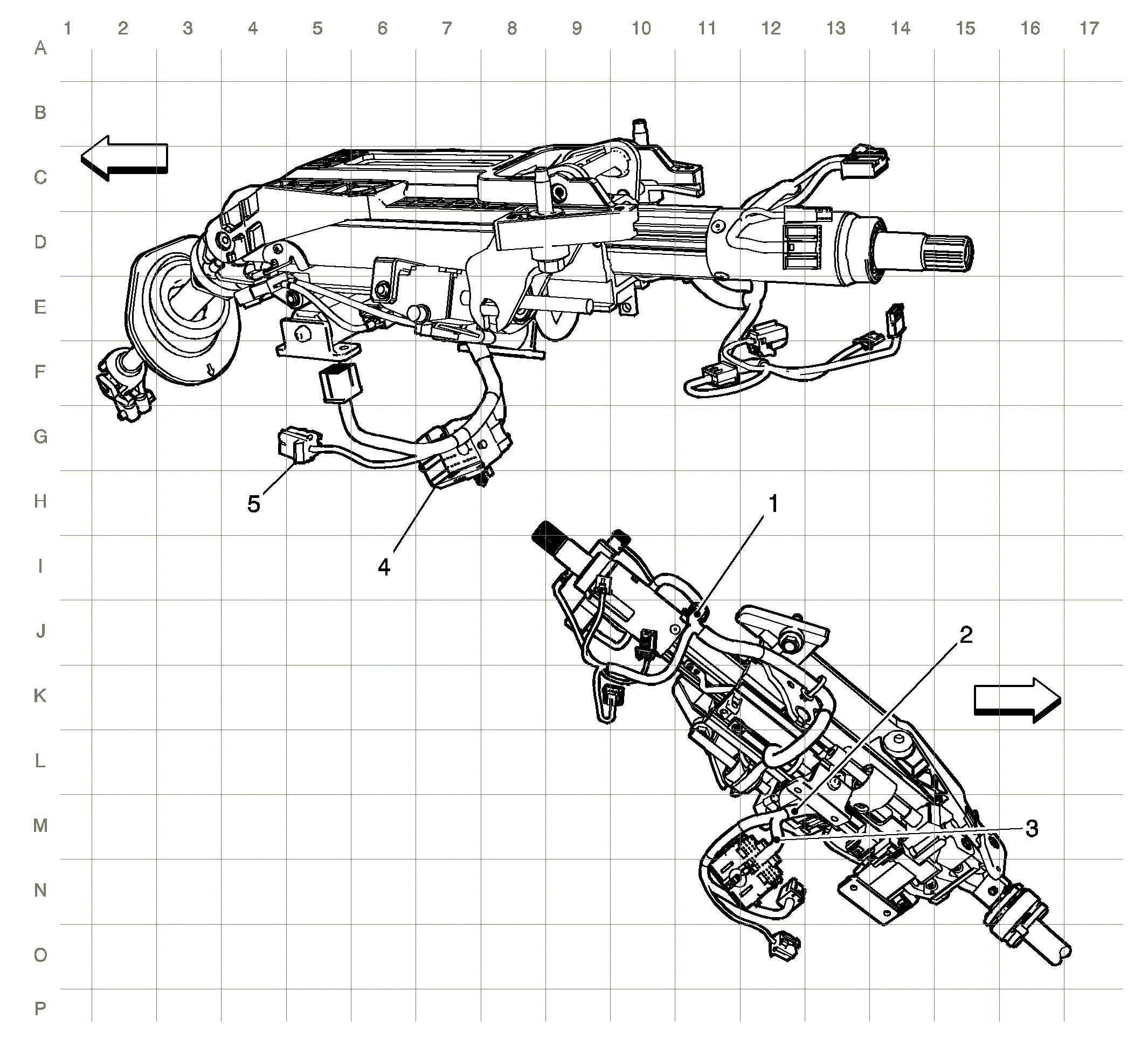

Fig 1: Steering Column Harness Routing
GM2867687Courtesy of GENERAL MOTORS COMPANY
Items
1:  J293
2:  J271
3:  J253
4:  X201 X201 Instrument Panel Harness to Steering Column Harness
5:  X211 X211 Body Harness to Steering Column Harness
