Instrument Panel Outer Air Outlet Bezel Replacement (Enclave)

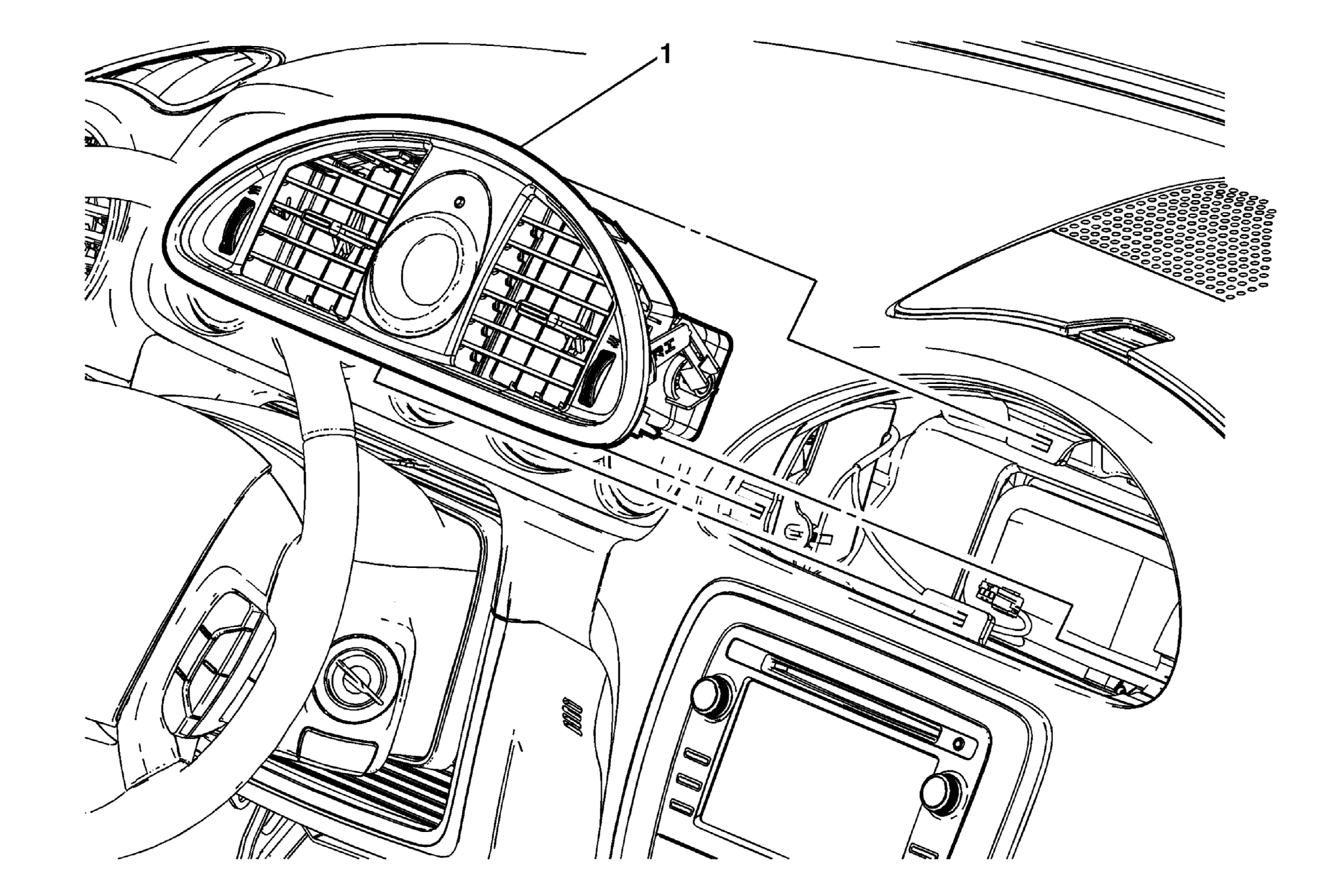

Fig 1: Instrument Panel Outer Air Outlet Bezel (Enclave)
GM2885346Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Outer Air Outlet Bezel Replacement (Enclave)

Callout Component Name
1 Instrument Panel Outer Air Outlet Bezel

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel outer air outlet bezel to the instrument panel assembly.
  2. Disconnect electrical connection.
