Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia W/ RPO UV6)

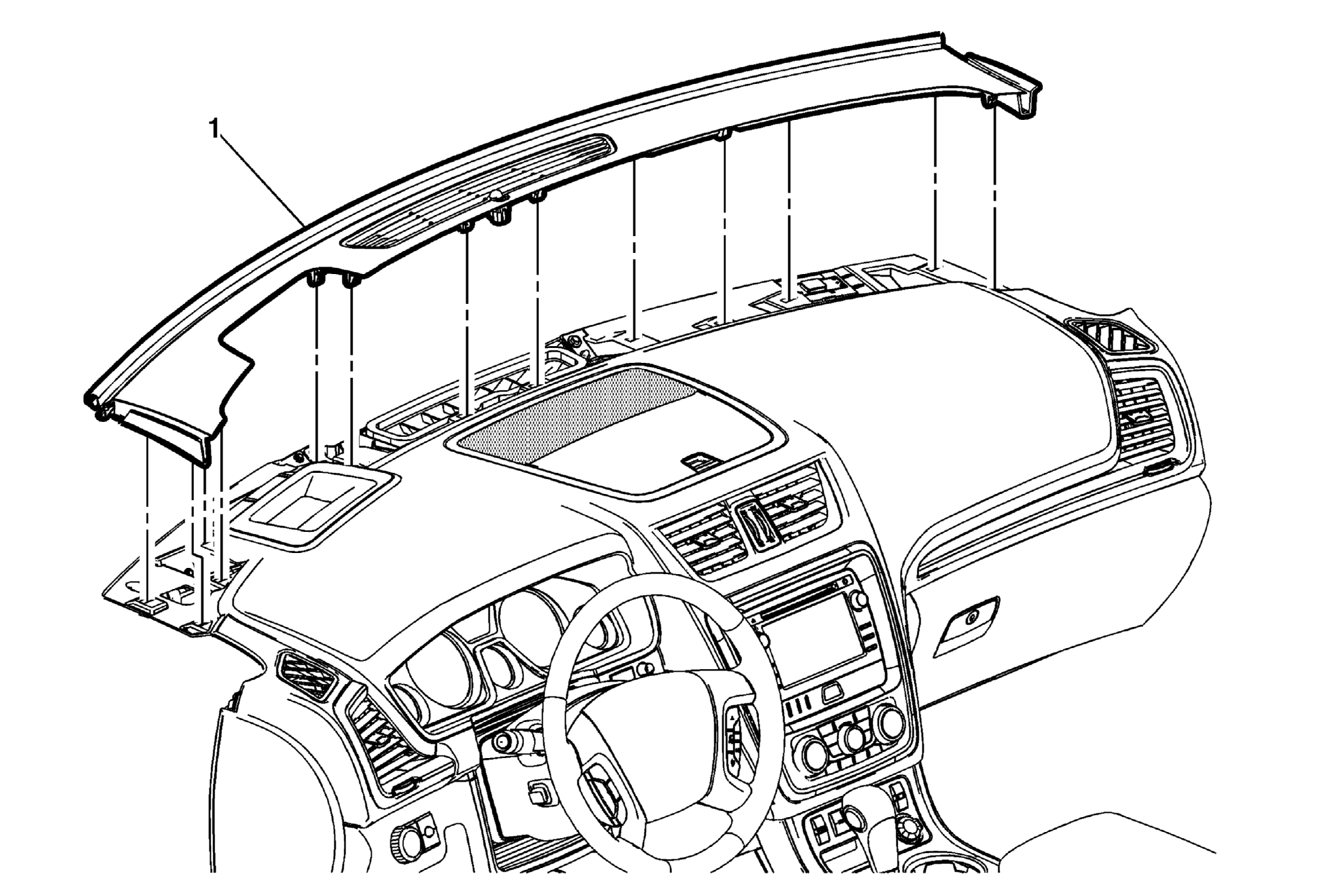

Fig 1: Instrument Panel Upper Trim Panel With Windshield Defroster Nozzle Grille (Acadia W/ RPO UV6)

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/ RPO UV6)

Callout	Component Name
Preliminary Procedure Remove the windshield garnish moldings. Refer to Windshield Garnish Molding Replacement - Left Side and Windshield Garnish Molding Replacement - Right Side .
1	Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Procedure Use a flat-bladed plastic trim tool in order to release the upper trim panel from the instrument panel assembly. Disconnect the electrical connections. When replacing the upper trim panel, transfer all necessary components.

Callout

Component Name

Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle

Procedure

Use a flat-bladed plastic trim tool in order to release the upper trim panel from the instrument panel assembly.
Disconnect the electrical connections.
When replacing the upper trim panel, transfer all necessary components.
