Instrument Panel Compartment Trim Plate Replacement (Traverse)

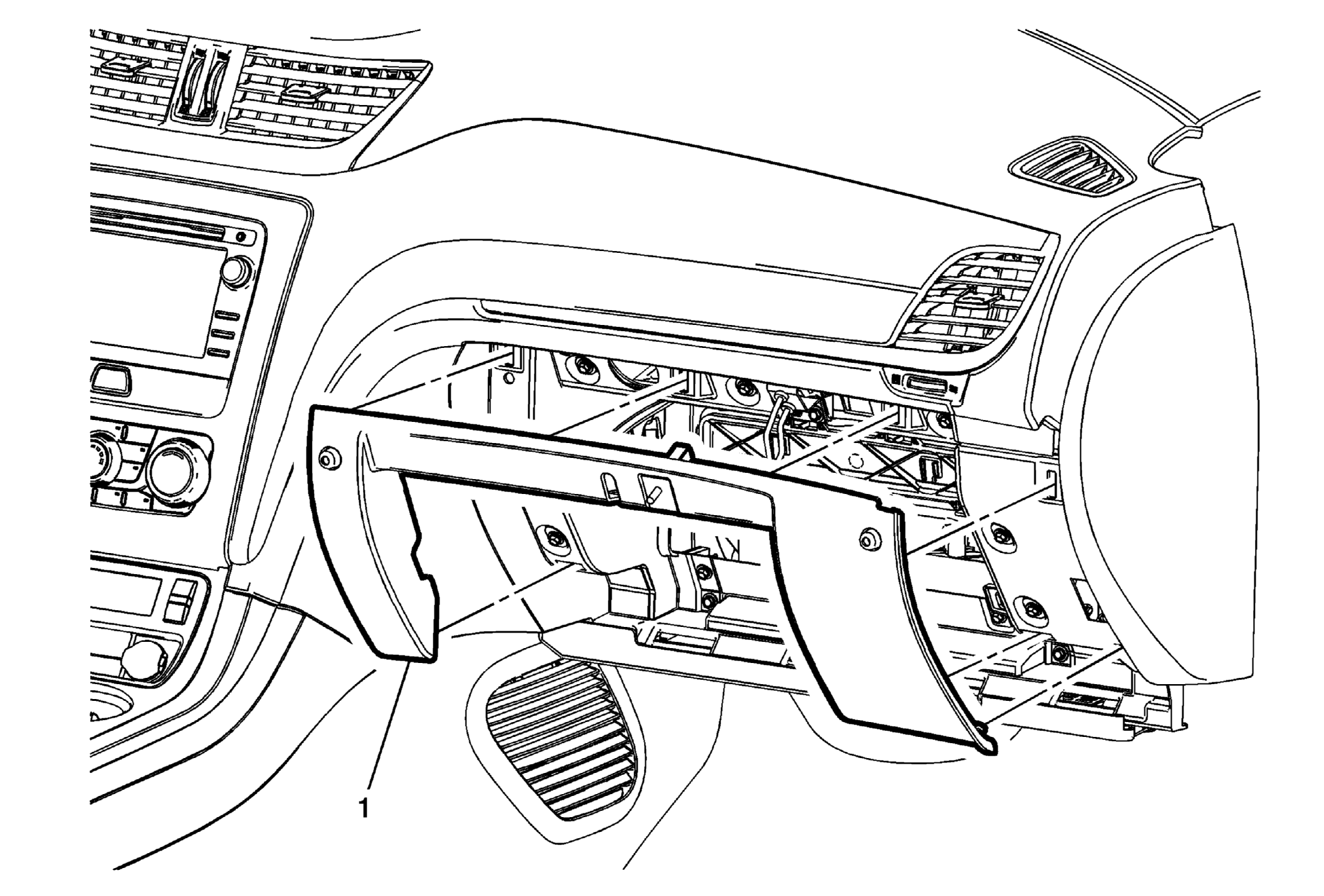

Fig 1: Instrument Panel Compartment Trim Plate (Traverse)
GM2877390Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Trim Plate Replacement (Traverse)

Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Traverse) .
1 Instrument Panel Compartment Trim Plate

Procedure

  1. Carefully use a flat bladed plastic trim tool to release the retainer securing the instrument panel compartment trim plate to the instrument panel.
  2. Disconnect the electrical connections.
  3. When replacing the instrument panel compartment trim plate, transfer all necessary components.
