Front Floor Console Harness Routing

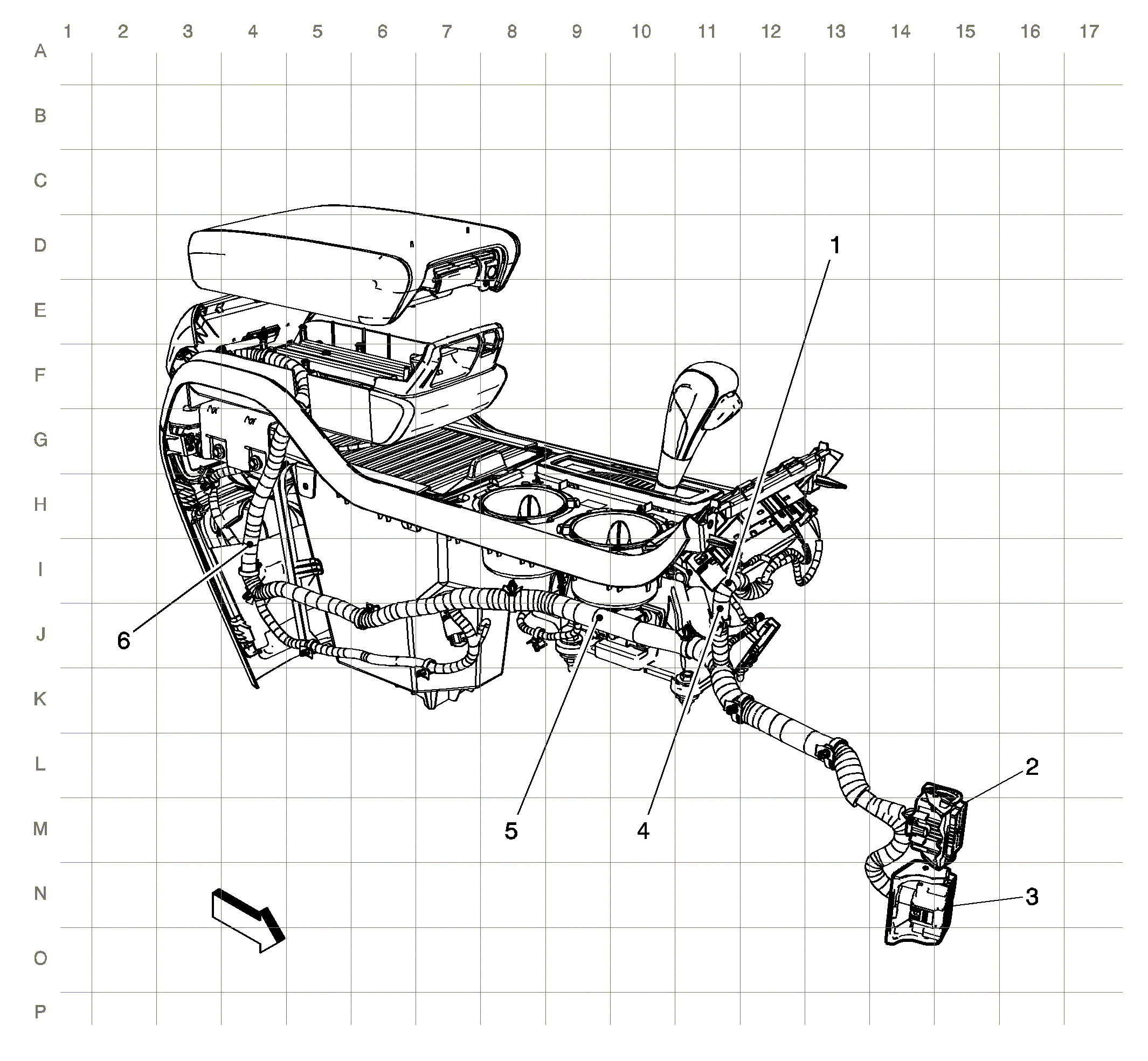

Fig 1: Front Floor Console Harness Routing
GM2867679Courtesy of GENERAL MOTORS COMPANY
Items
1:  J371 ((without KA1 or ULD))
2:  X240 X240 Instrument Panel Harness to Floor Console Harness
3:  X340 X340 Floor Console Harness to Body Harness
4:  J377
5:  J379 ((without ULD))
6:  J375
