Front Bumper Fascia Replacement (Traverse)
Courtesy of GENERAL MOTORS COMPANY Front Bumper Fascia Replacement (Traverse)

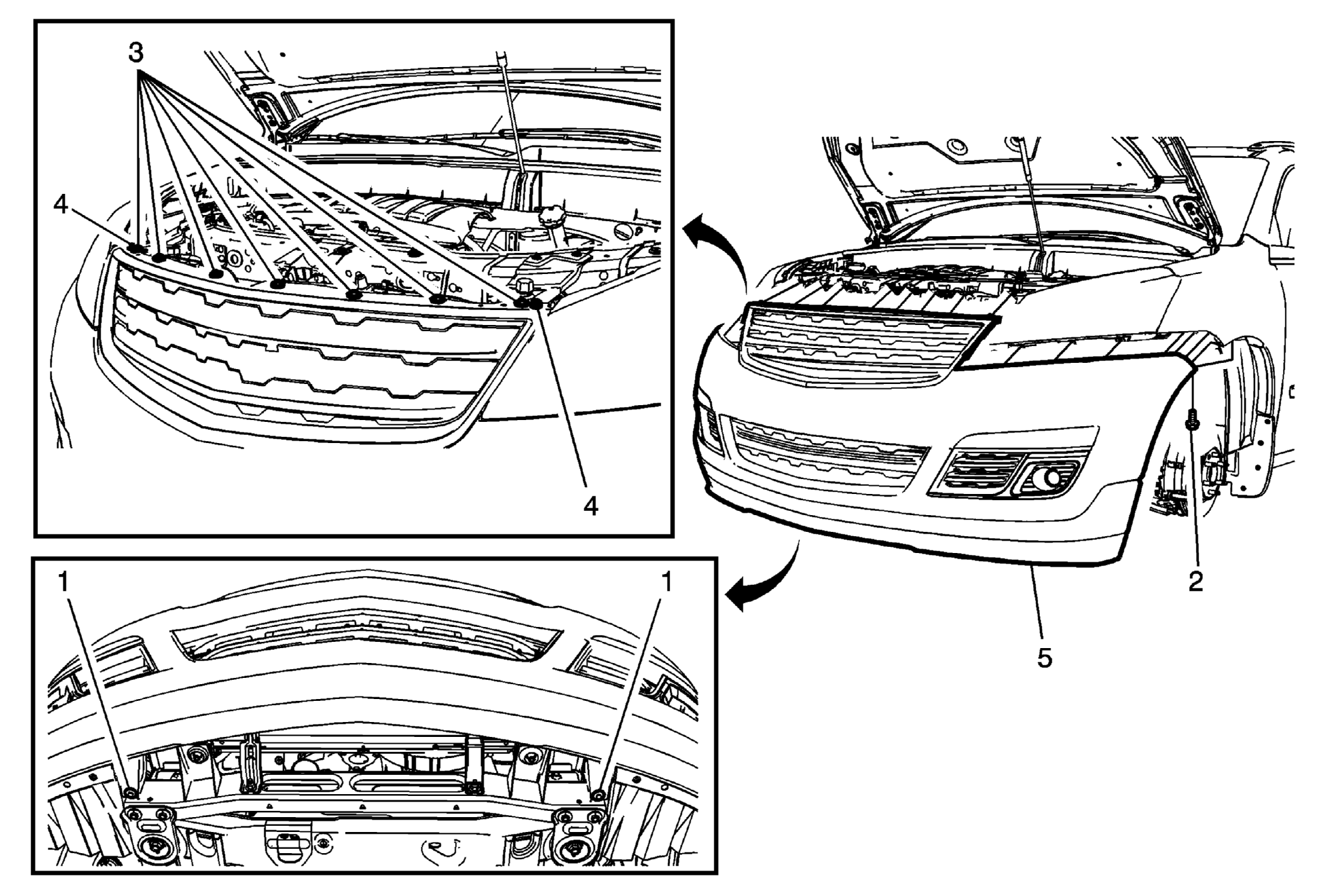

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse)
.
- Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Traverse)
.
|
| 1 |
Front Bumper Fascia Lower Bolt (Qty: 2)
|
| 2 |
Front Bumper Fascia Bolt (Qty: 2) |
| 3 |
Front Bumper Fascia Upper Screw (Qty: 7) |
| 4 |
Front Bumper Fascia Upper Bolt (Qty: 2) |
| 5 |
Front Fascia Procedure
- Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.
- Disconnect any electrical connectors.
- Transfer components as necessary.
|
