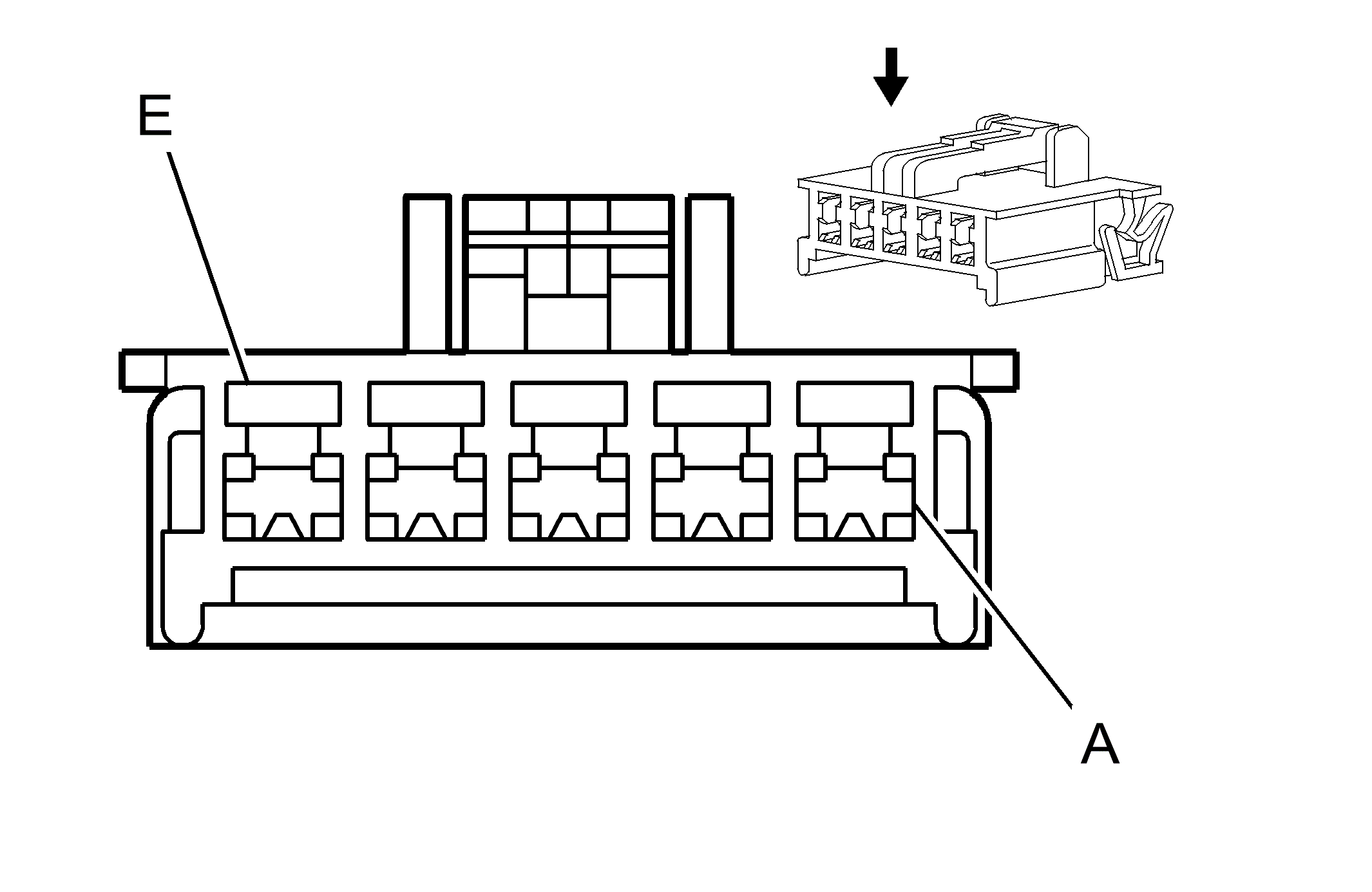

M51P Seat Horizontal Motor - Passenger (AG2 or AH8)
|
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 6098-0344
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way F HD 090 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
J-35616-14 (GN) |
J-38125-553 |
8240-4652 |
22 |
2 |
4 |
M51P Seat Horizontal Motor - Passenger (AG2 or AH8)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
TN |
296 |
Passenger Seat Horizontal Motor Forward Control |
I |
- |
| B-D |
- |
- |
- |
Not Occupied |
- |
- |
| E |
2 |
L-GN |
290 |
Passenger Seat Horizontal Motor Rearward Control |
I |
- |
