Low and Reverse Clutch Piston Removal

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

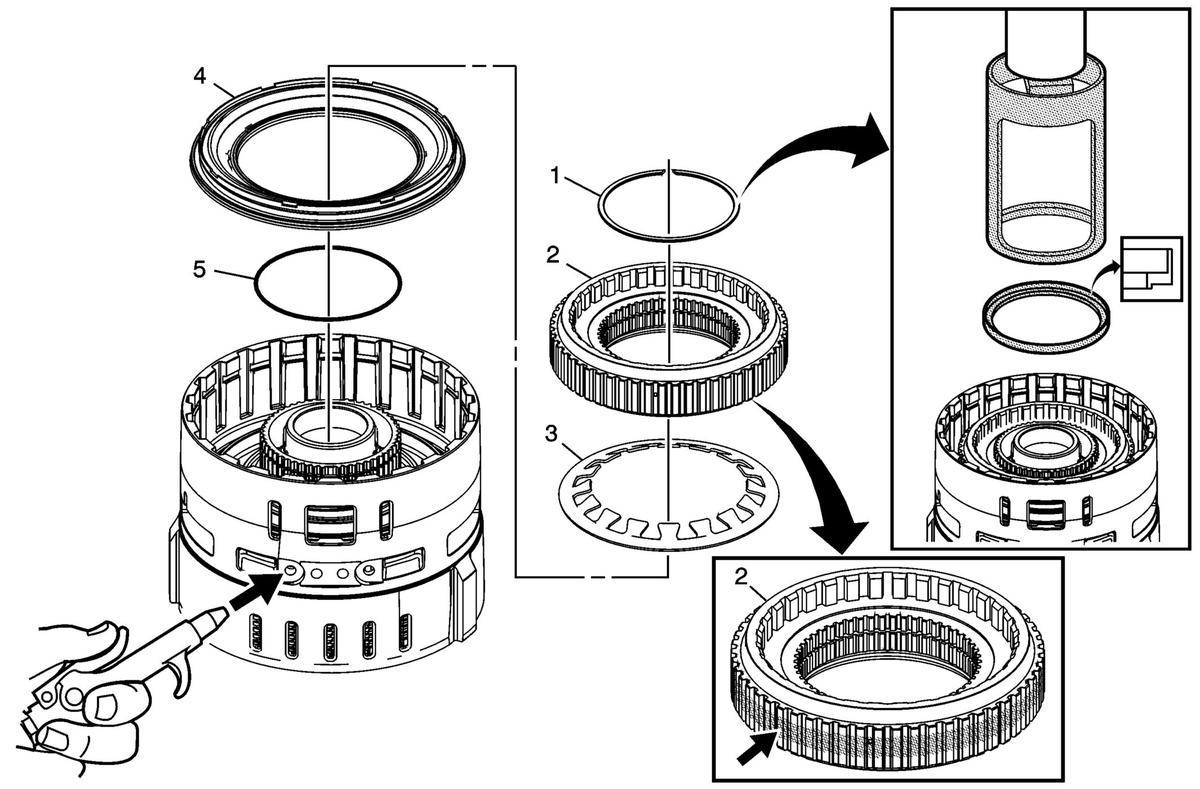

Fig 1: Low And Reverse Clutch Piston Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Low and Reverse Clutch Spring Retaining Ring NOTE: Ensure the DT-48069 contacts the sprag assembly and not the sprag retaining ring or damage to the sprag may result. Special Tool: DT-48069 Low Clutch Spring Compressor. See Special Tools .
2	Low Clutch Sprag Assembly
3	Low and Reverse Clutch Spring
4	Low and Reverse Clutch Piston Assembly Tip: It may be necessary to apply air to the apply passage in order to unseat the piston.
5	Low Clutch Sprag Seal NOTE: Refer to Seal Reuse Notice .
