WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

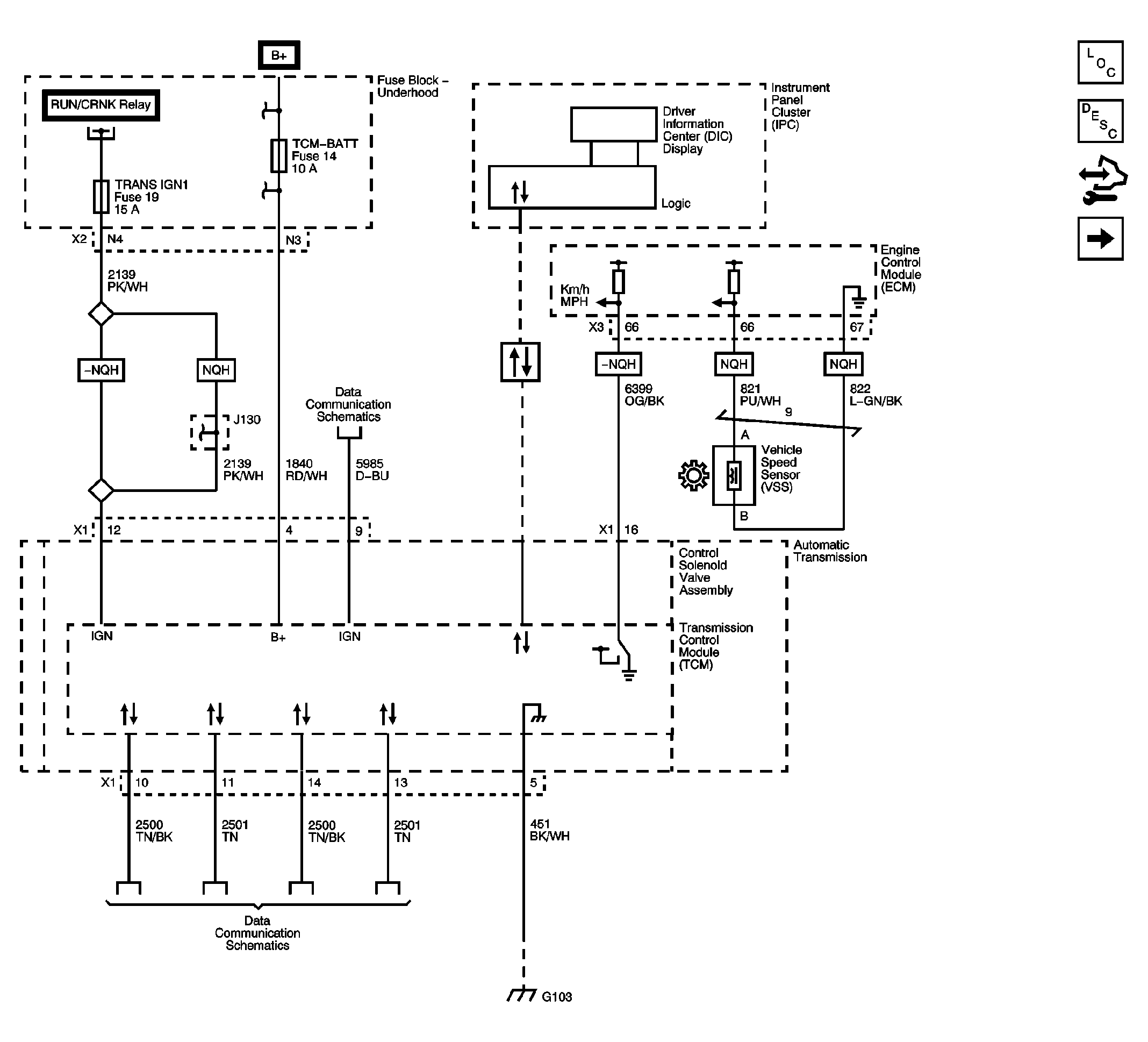

Fig 1: Module Power, Ground, Data Communication, and MIL
Courtesy of GENERAL MOTORS CORP.

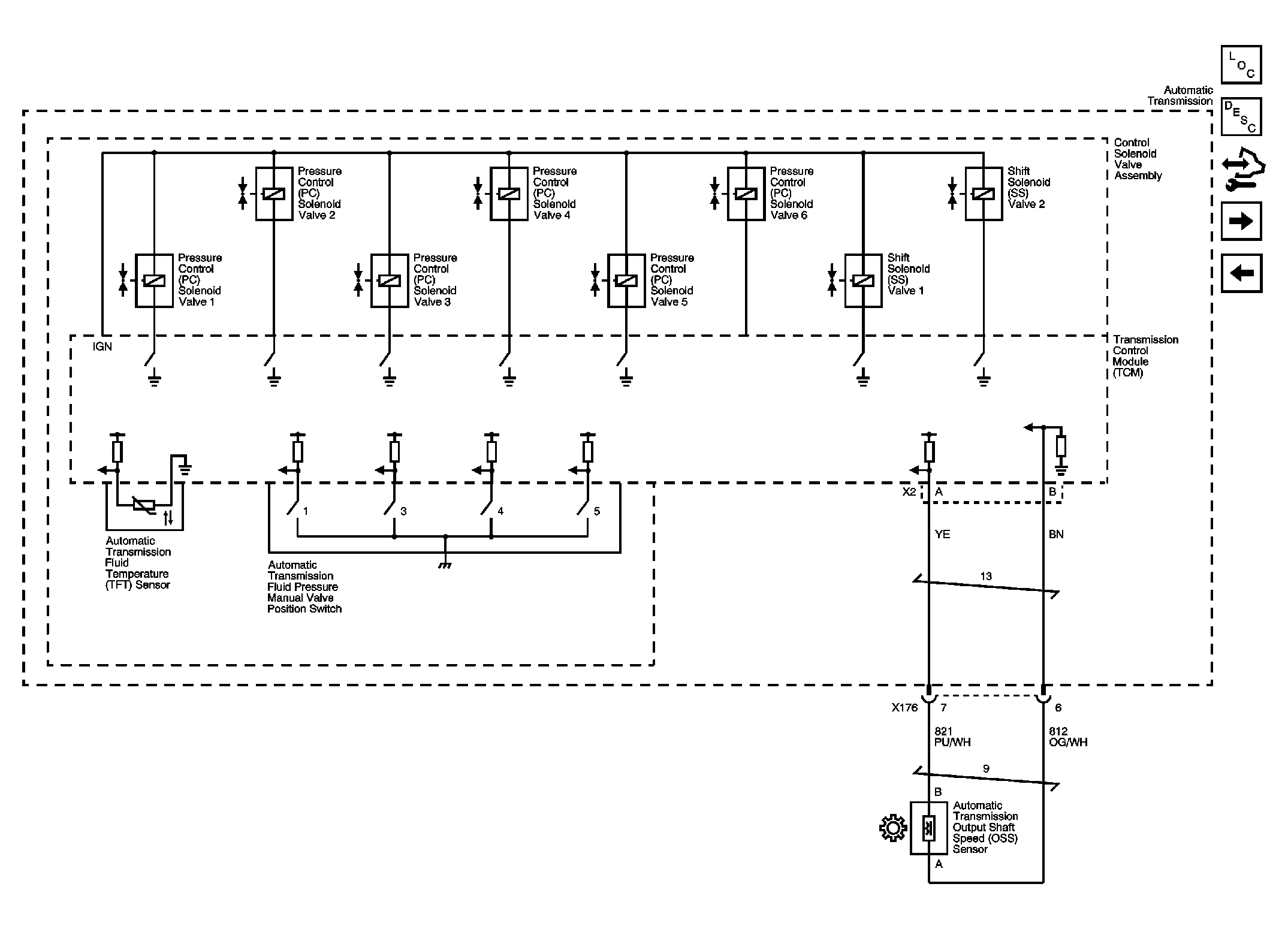

Fig 2: OSS, TFP, TFT, Pressure Controls, and Shift Controls
