Power Distribution Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

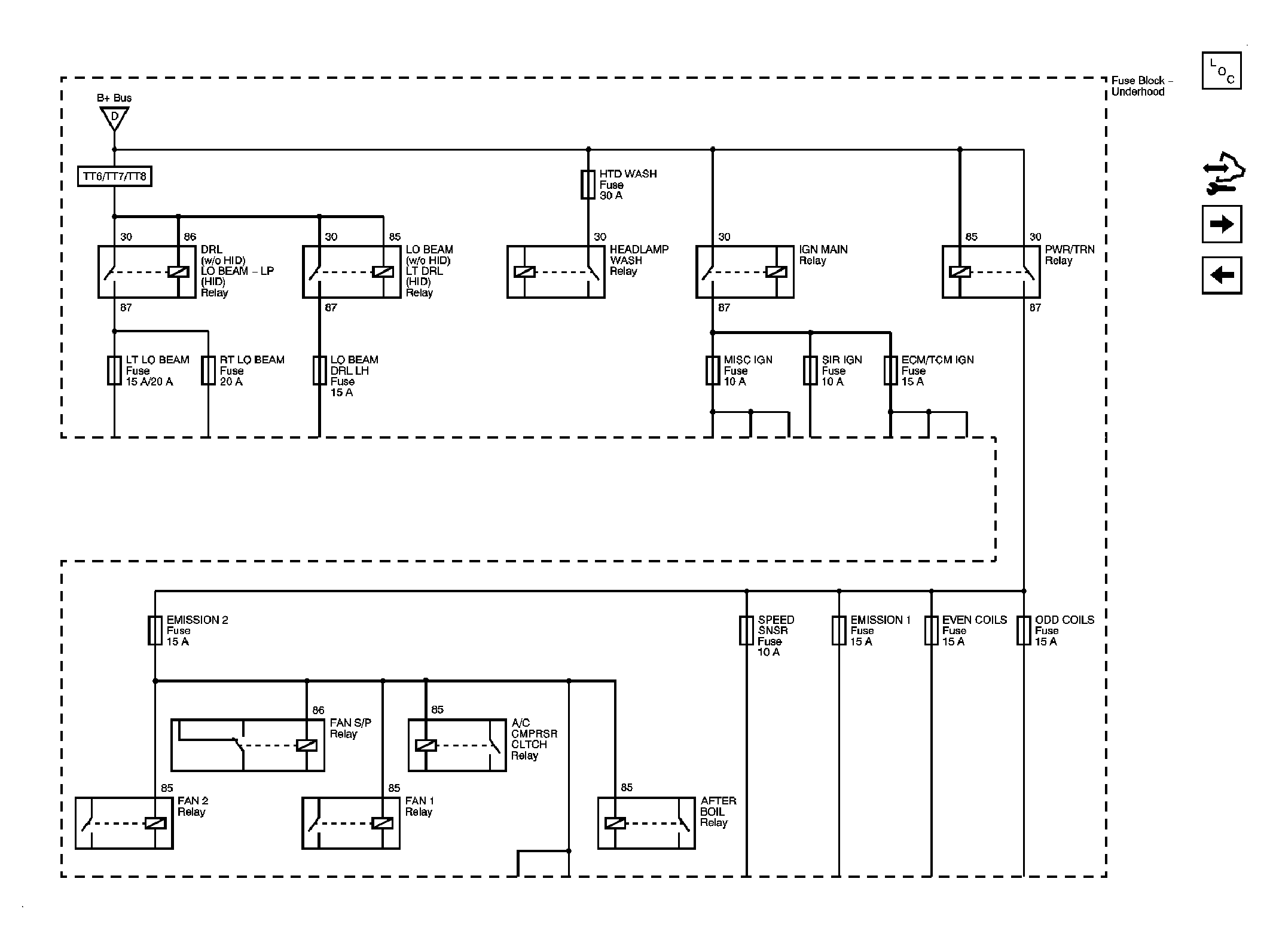

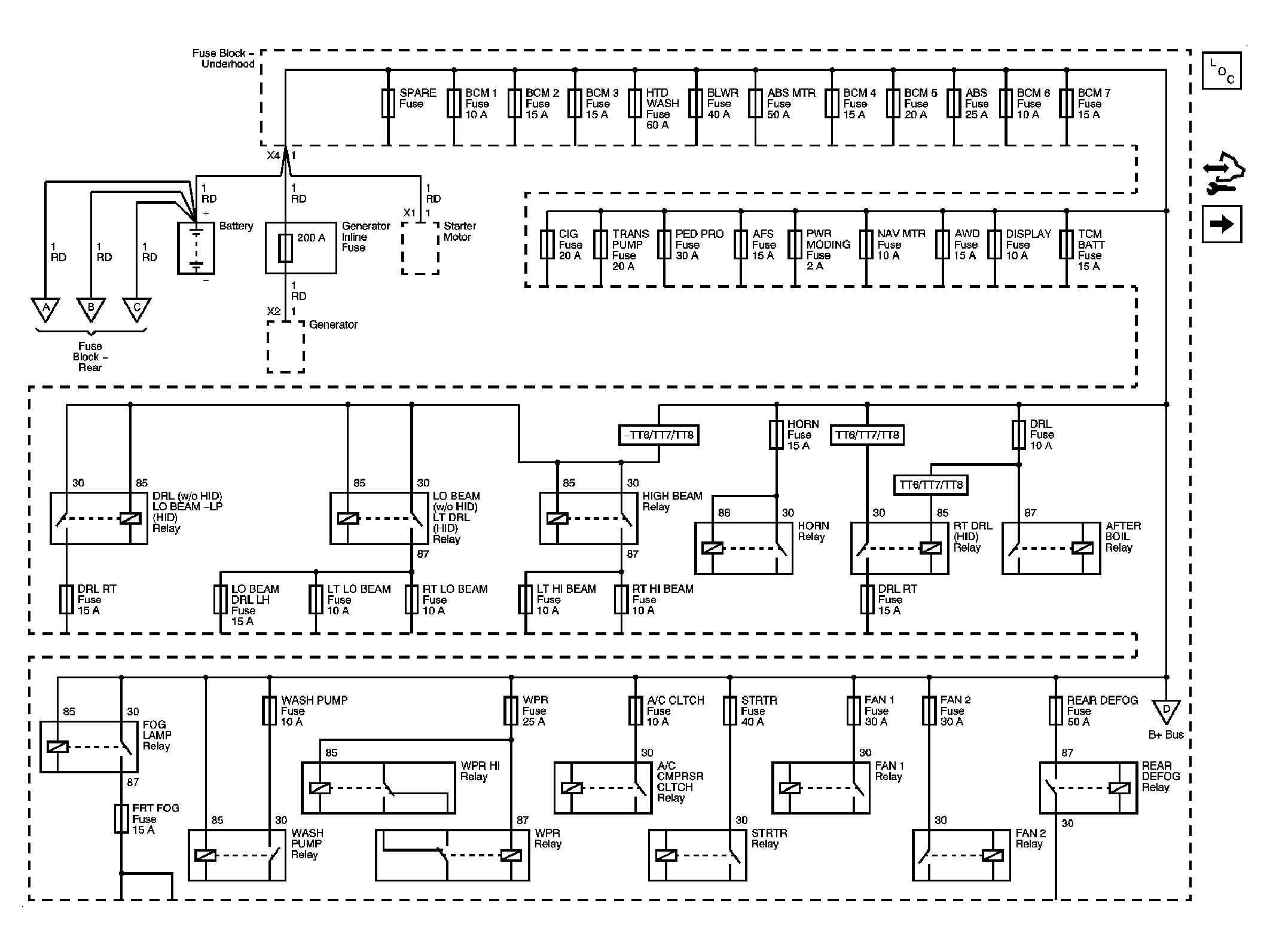

Fig 1: B+ Bus 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus 2 of 2

Courtesy of GENERAL MOTORS CORP.

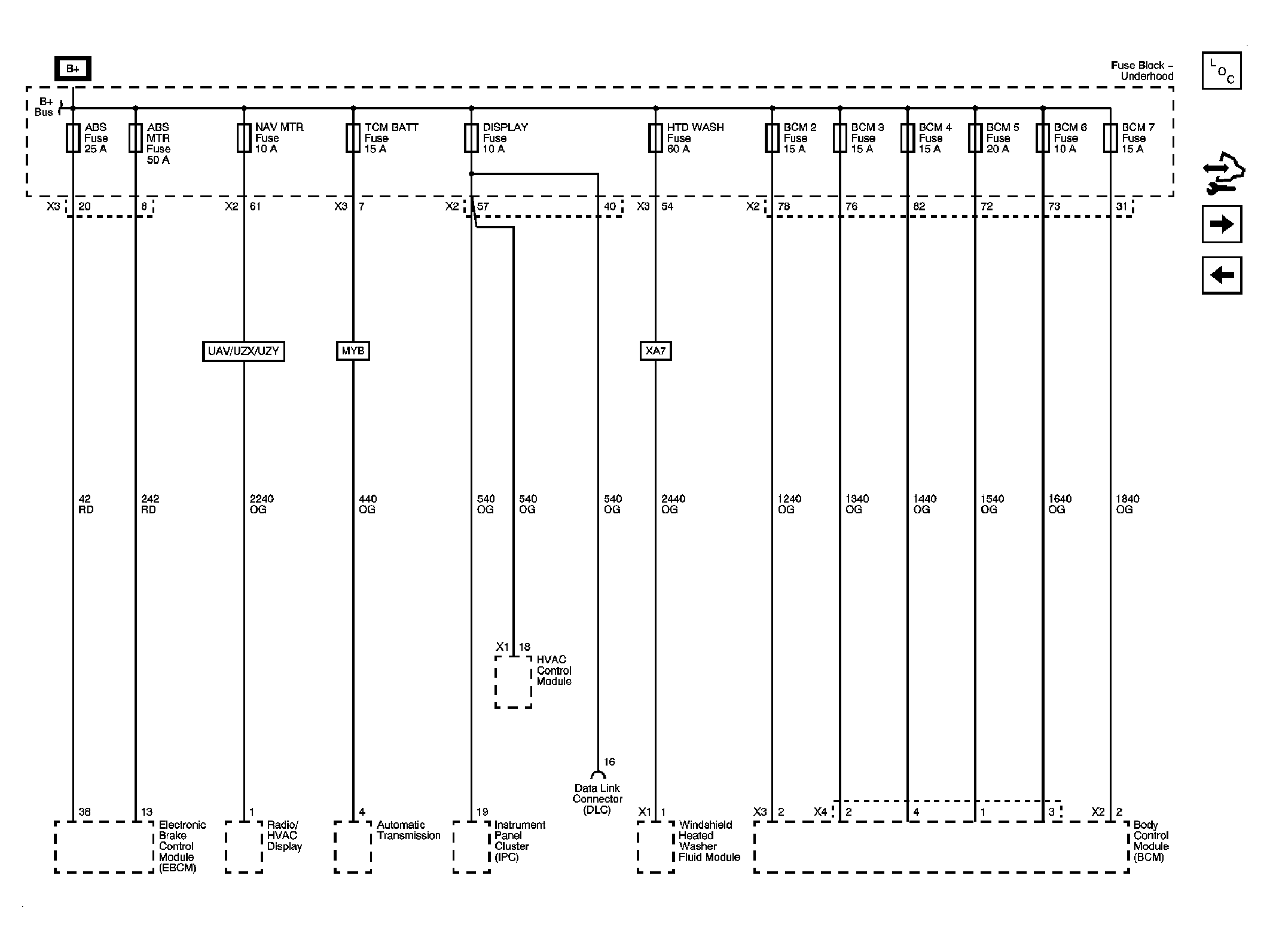

Fig 3: ABS, ABS MTR, BCM 2, BCM 3, BCM 4, BCM 5, BCM 6, BCM 7, DISPLAY, HTD WASH, NAV MTR, and TCM BATT Fuses

Courtesy of GENERAL MOTORS CORP.

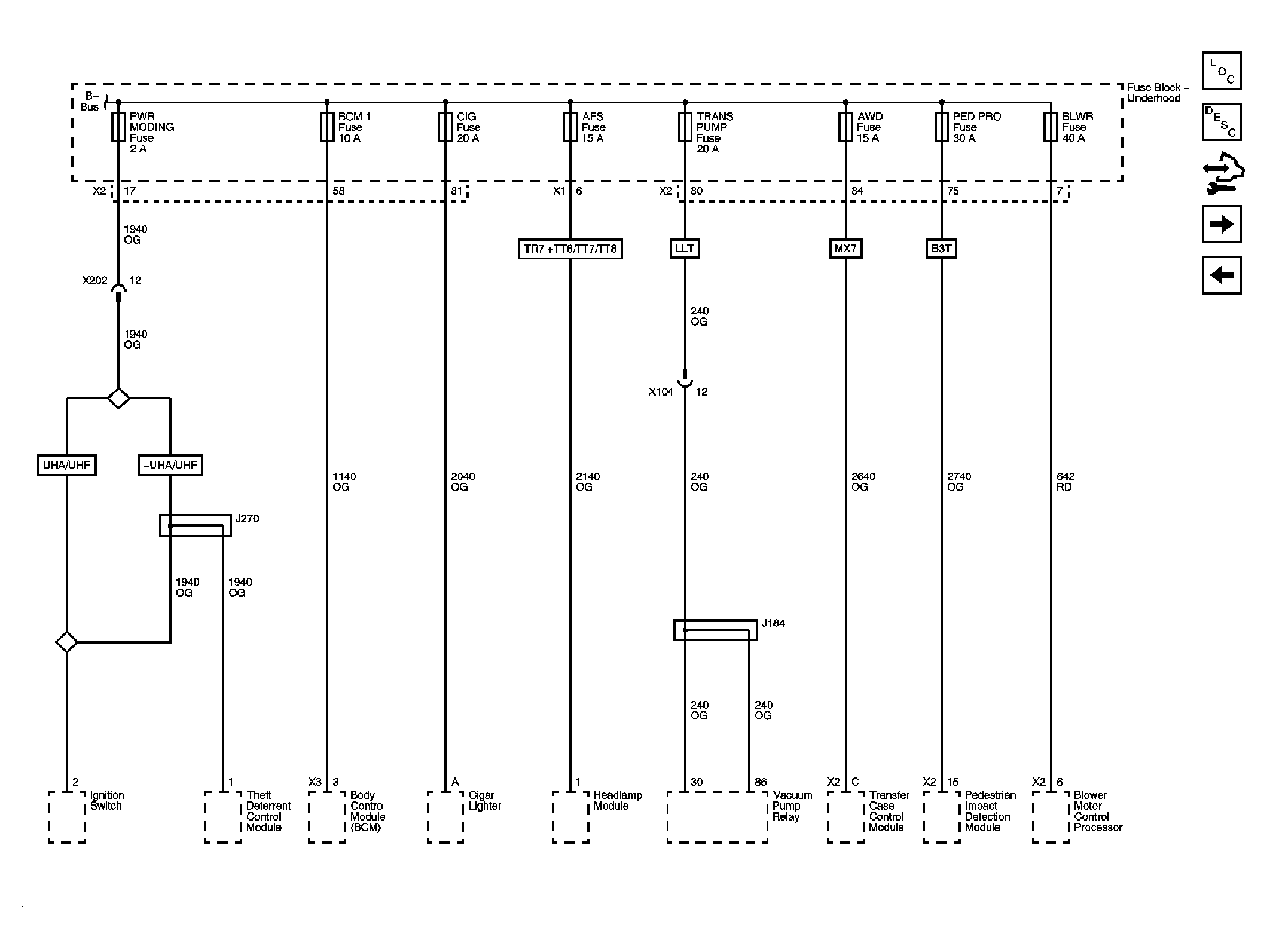

Fig 4: AFS, AWD, BCM 1, BLWR, CIG, PED PRO, PWR MODING, and TRANS PUMP Fuses

Courtesy of GENERAL MOTORS CORP.

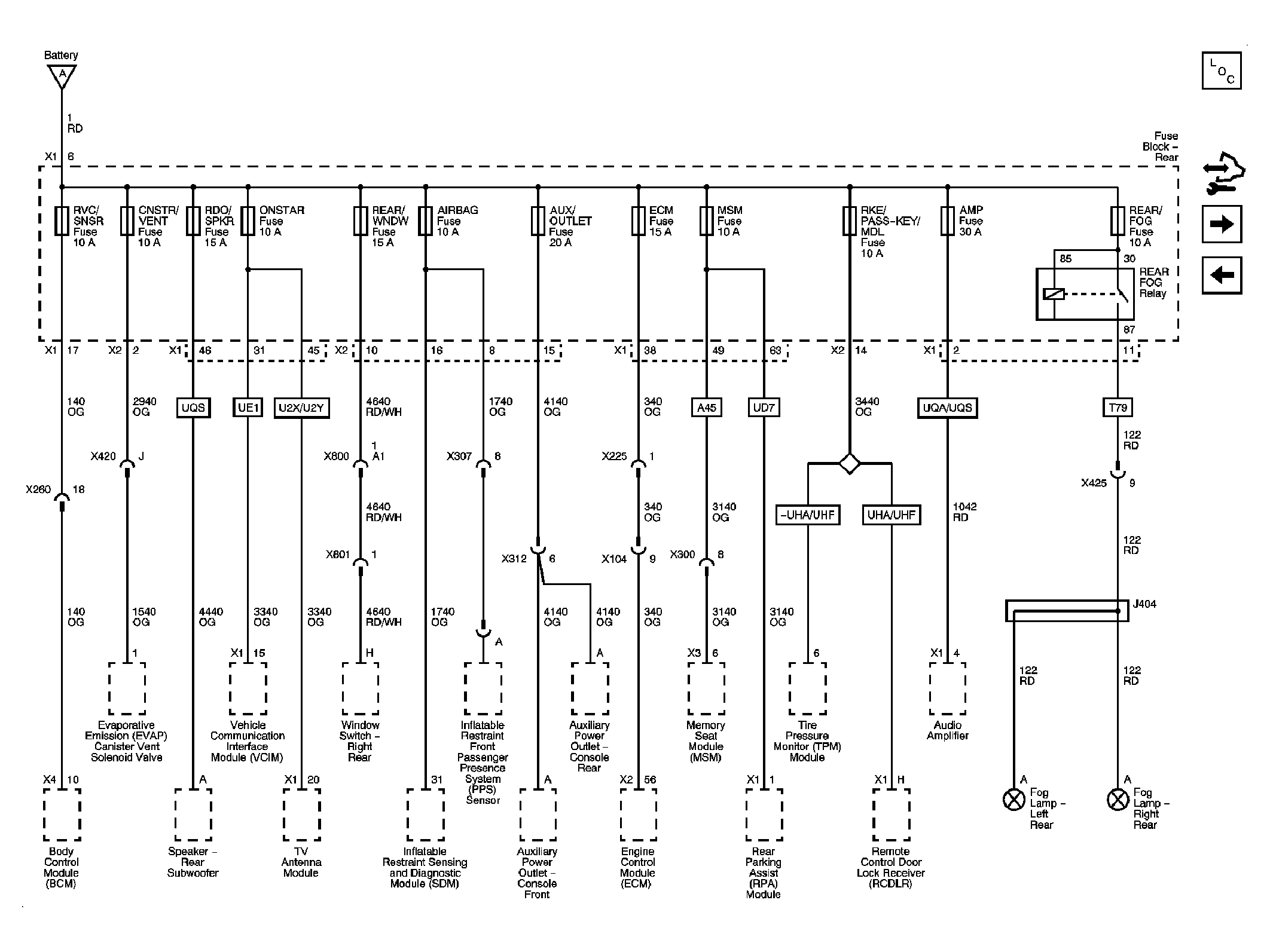

Fig 5: AIRBAG, AMP, AUX OUTLET, CNSTR/VENT, ECM, MSM, ONSTAR, RDO/SPKR, REAR FOG, REAR/WNDW, RKE/PASS-KEY/MDL, and RVC/SNSR Fuses

Courtesy of GENERAL MOTORS CORP.

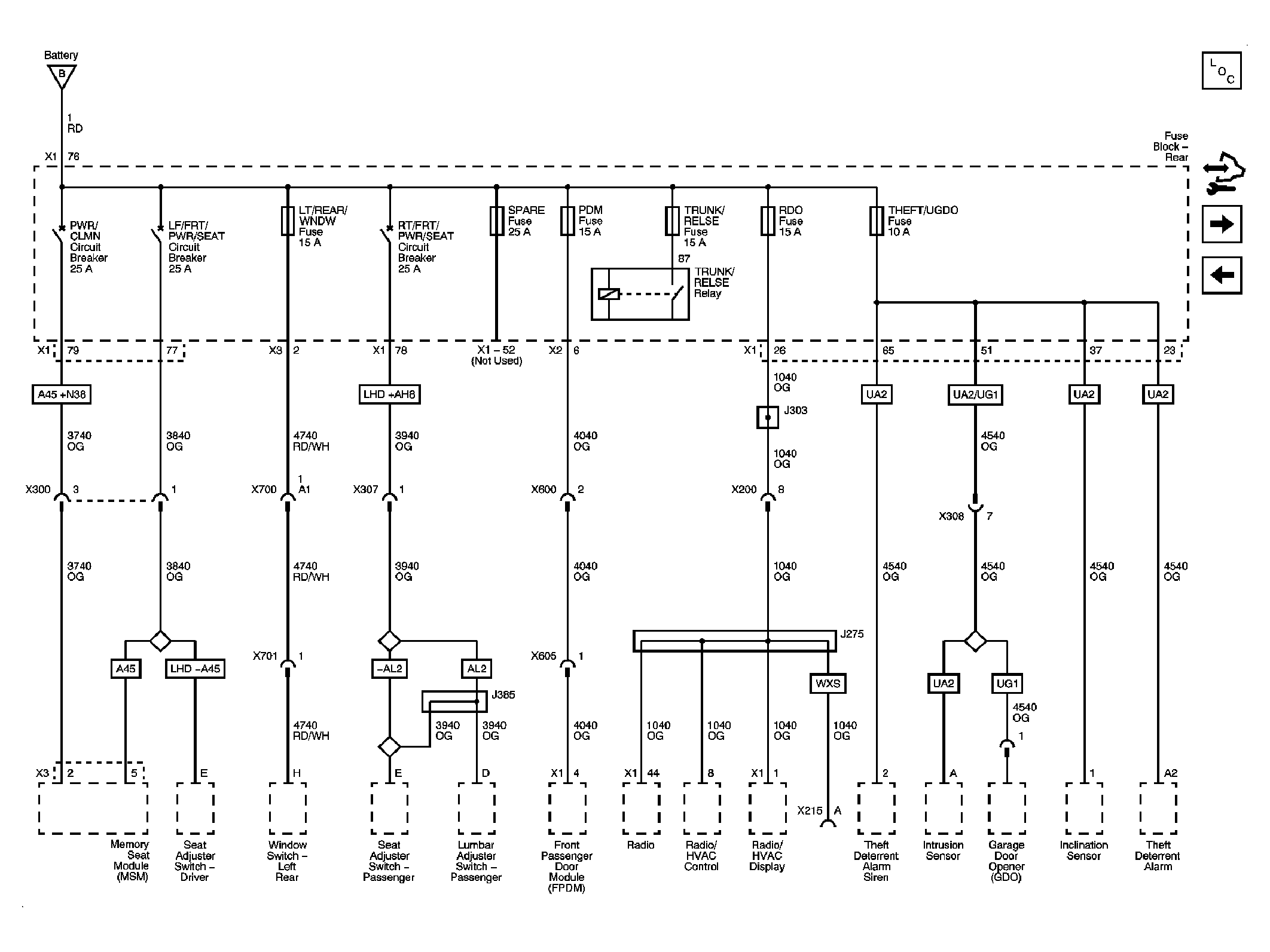

Fig 6: LT/REAR/WNDW, PDM, RDO, SPARE, THEFT/UGDO, and TRUNK RELSE Fuses, LF/FRT/PWR/SEAT, PWR CLMN and RT/FRT/PWR/SEAT Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

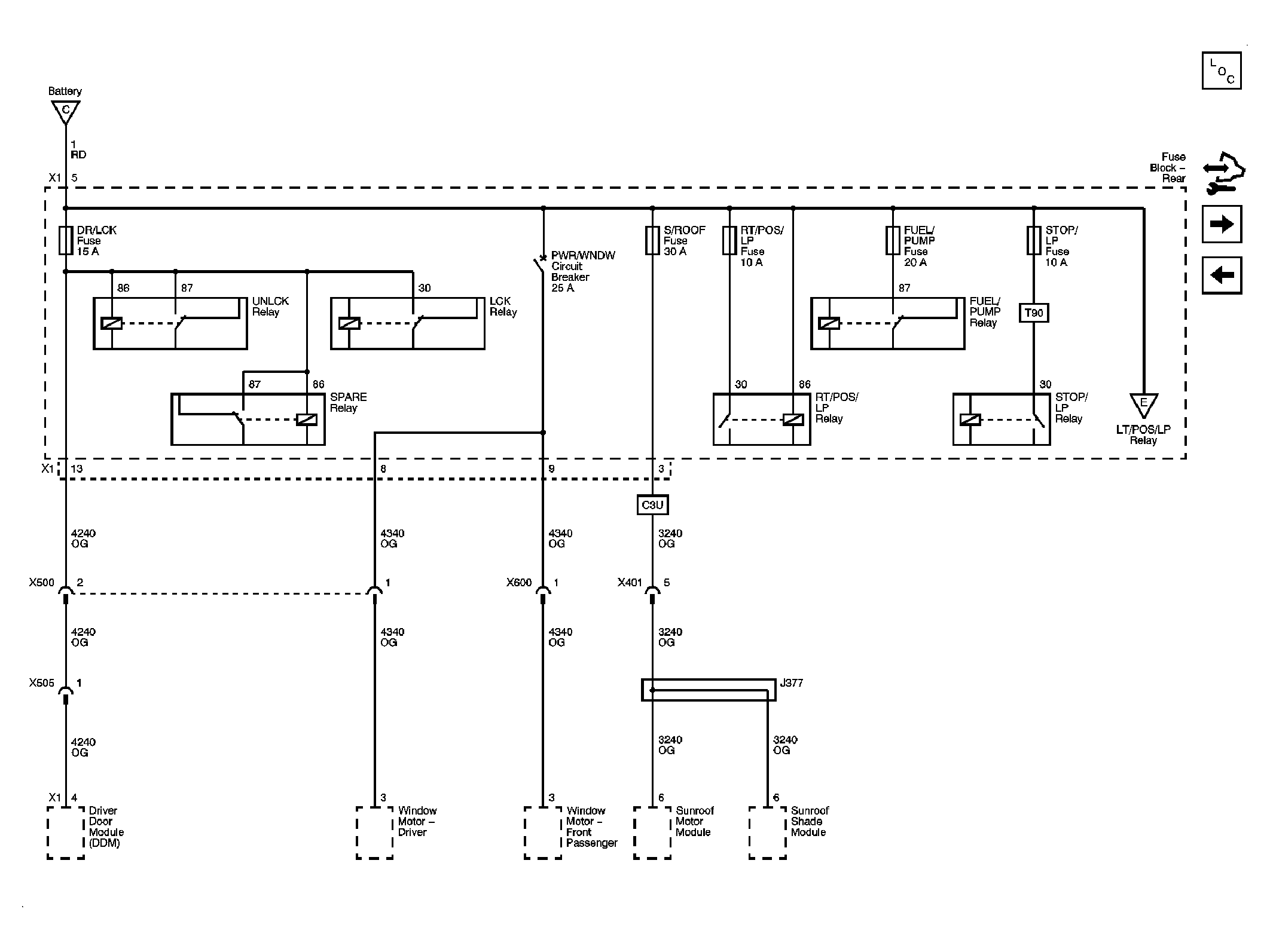

Fig 7: DR/LCK, FUEL PUMP, RT/POS/LP, S/ROOF and STOP/LP Fuses, PWR/WNDW Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

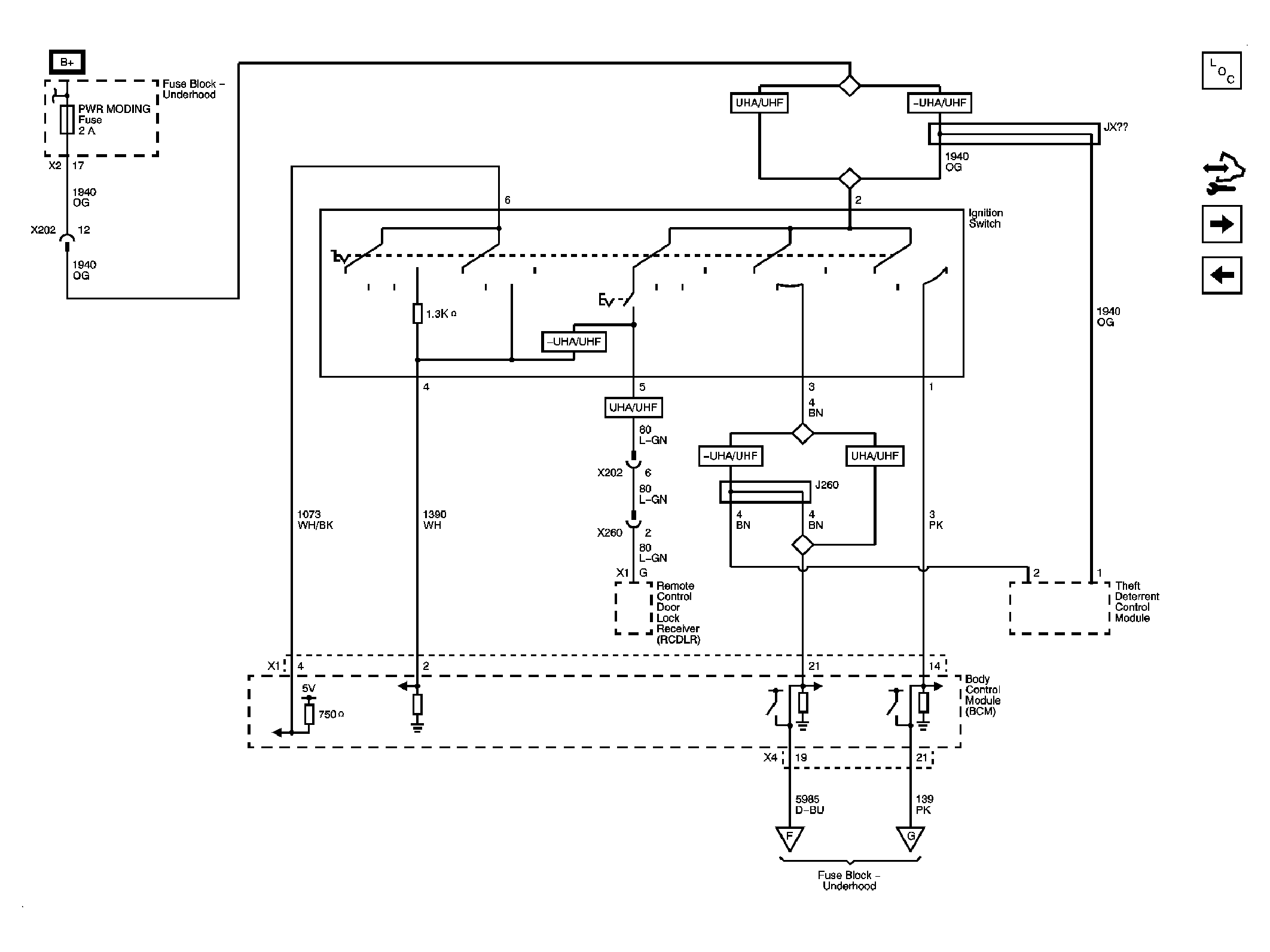

Fig 8: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

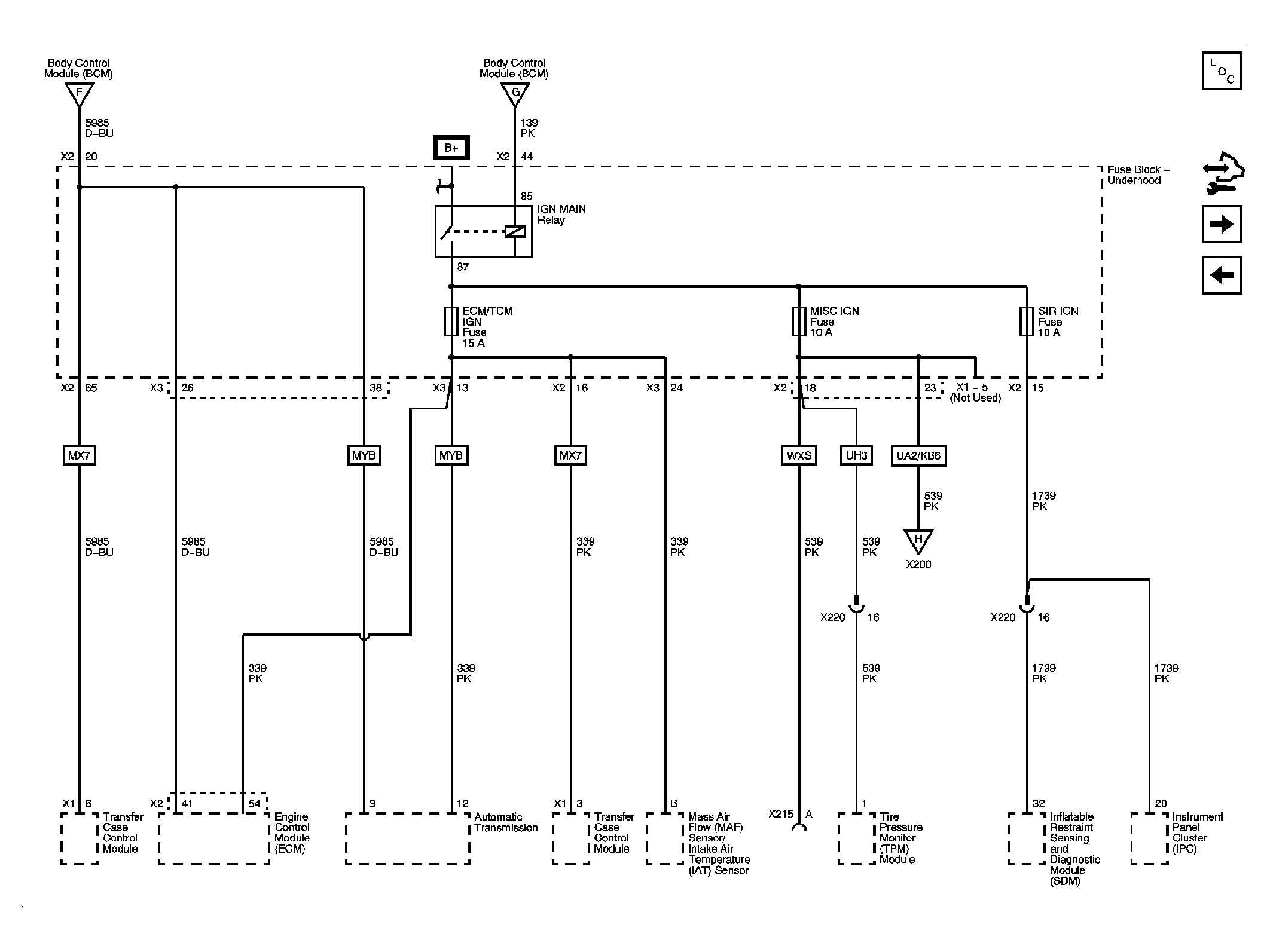

Fig 9: ECM/TCM, MISC IGN 1 of 2 and SIR IGN Fuses, IGN I/II and II/III

Courtesy of GENERAL MOTORS CORP.

Fig 10: MISC IGN Fuse 2 of 2

Courtesy of GENERAL MOTORS CORP.

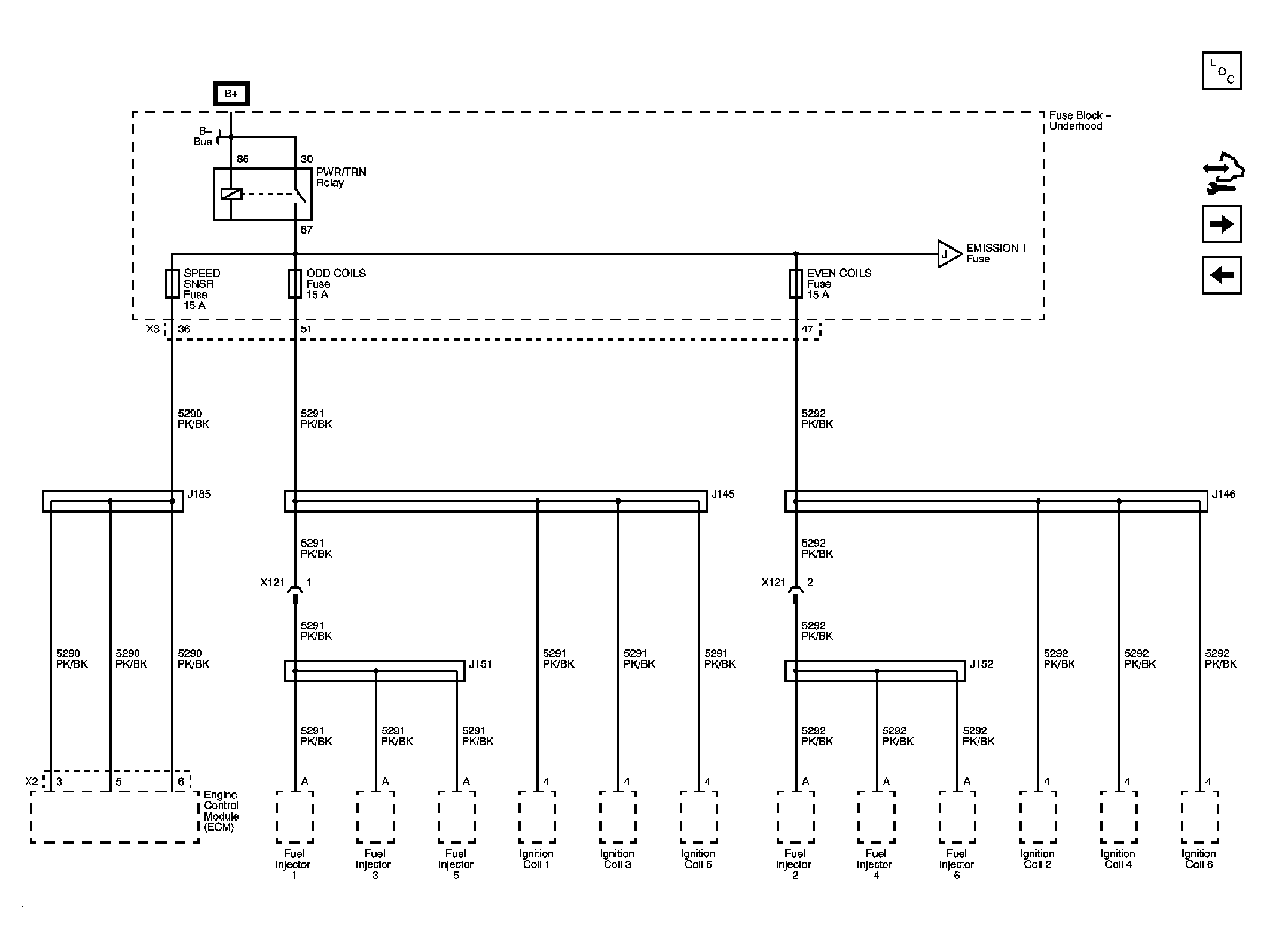

Fig 11: EVEN COILS, ODD COILS and SPEED SNSR Fuses - LLT

Courtesy of GENERAL MOTORS CORP.

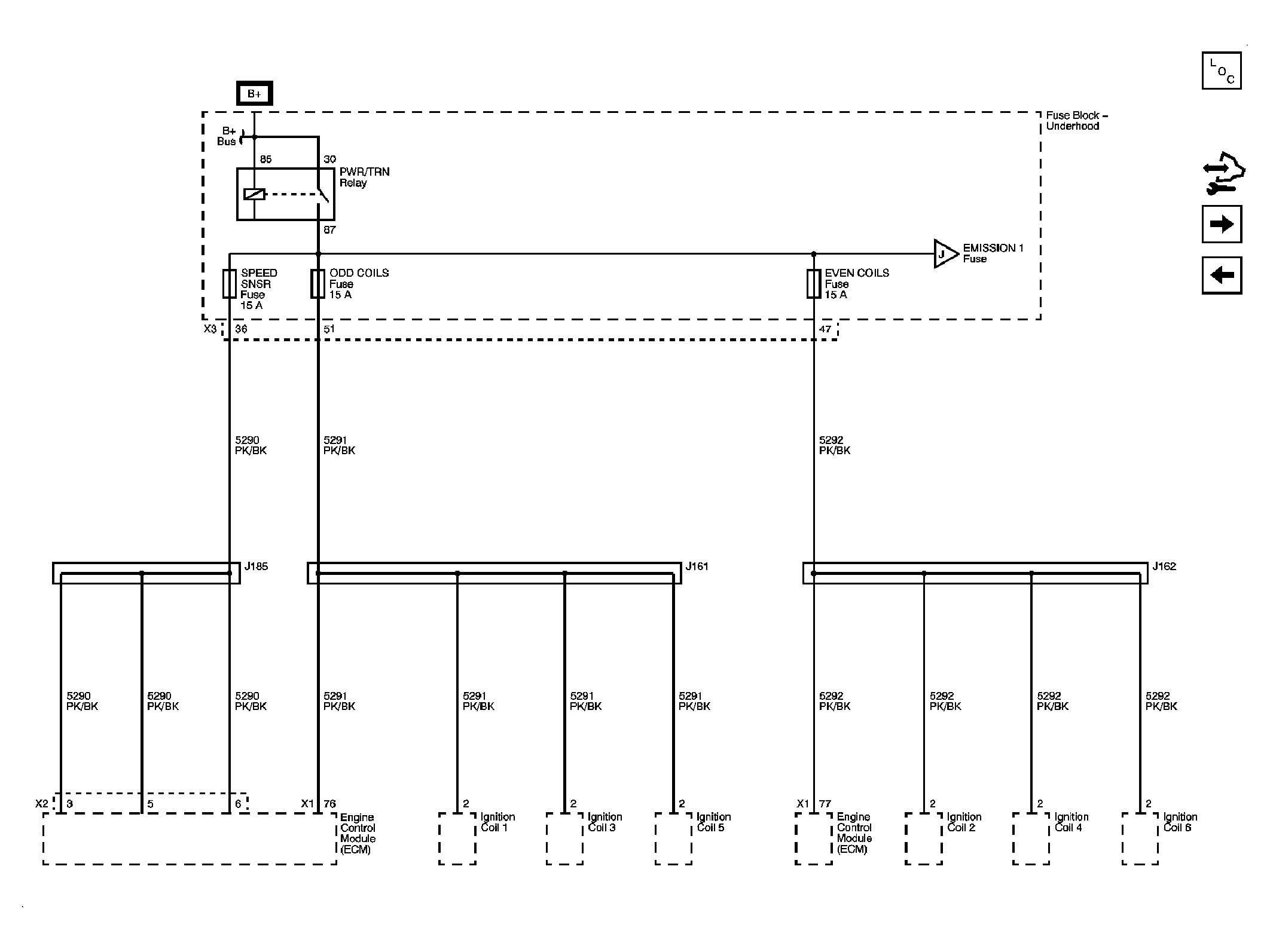

Fig 12: EVEN COILS, ODD COILS and SPEED SNSR Fuses - LP1/LY7

Courtesy of GENERAL MOTORS CORP.

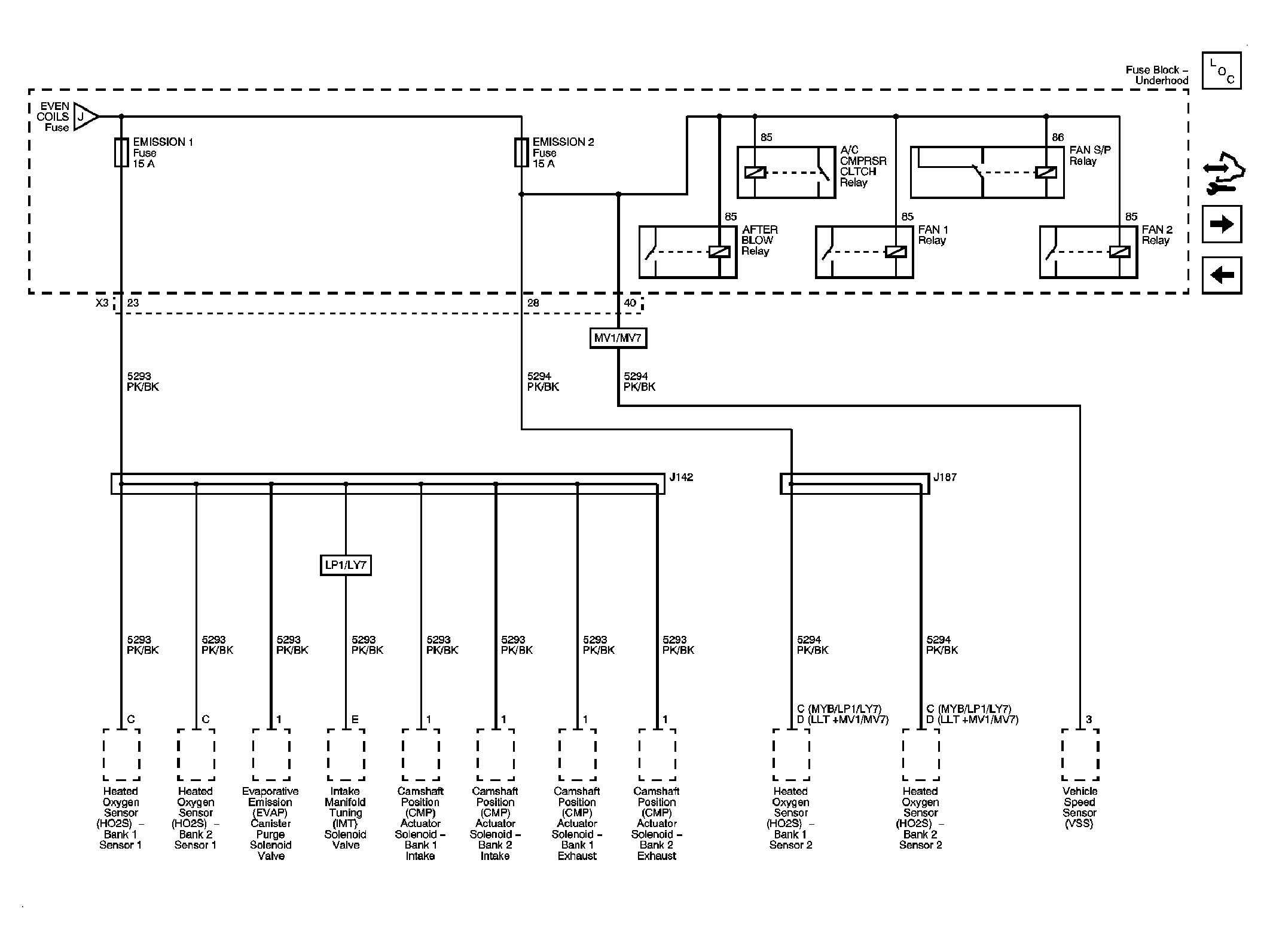

Fig 13: EMISSION 1 and EMISSION 2 Fuses

Courtesy of GENERAL MOTORS CORP.

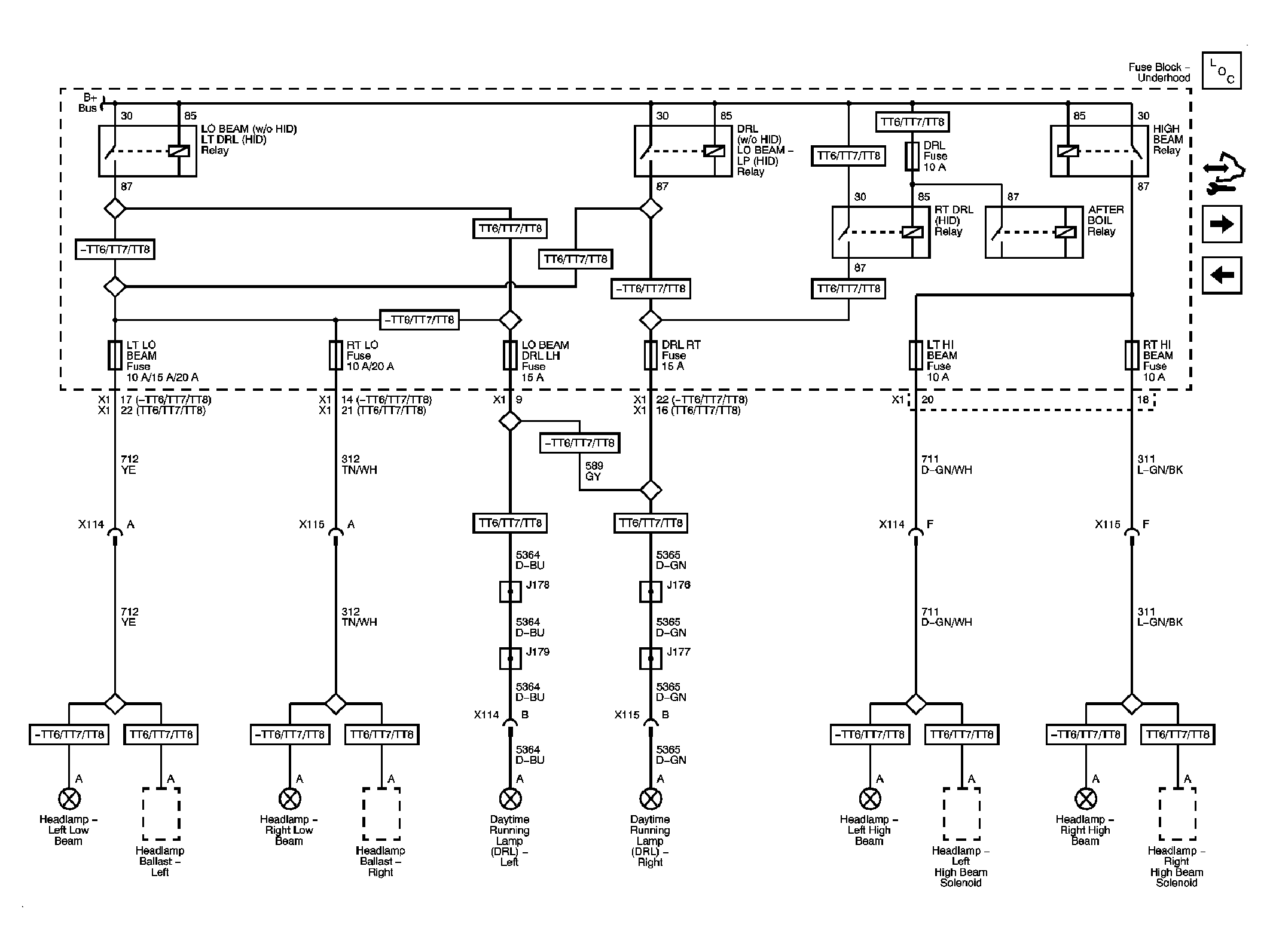

Fig 14: DRL, DRL RT, LO BEAM DRL LH, LT HI BEAM, LT LO BEAM, RT HI BEAM and RT LO Fuses

Courtesy of GENERAL MOTORS CORP.

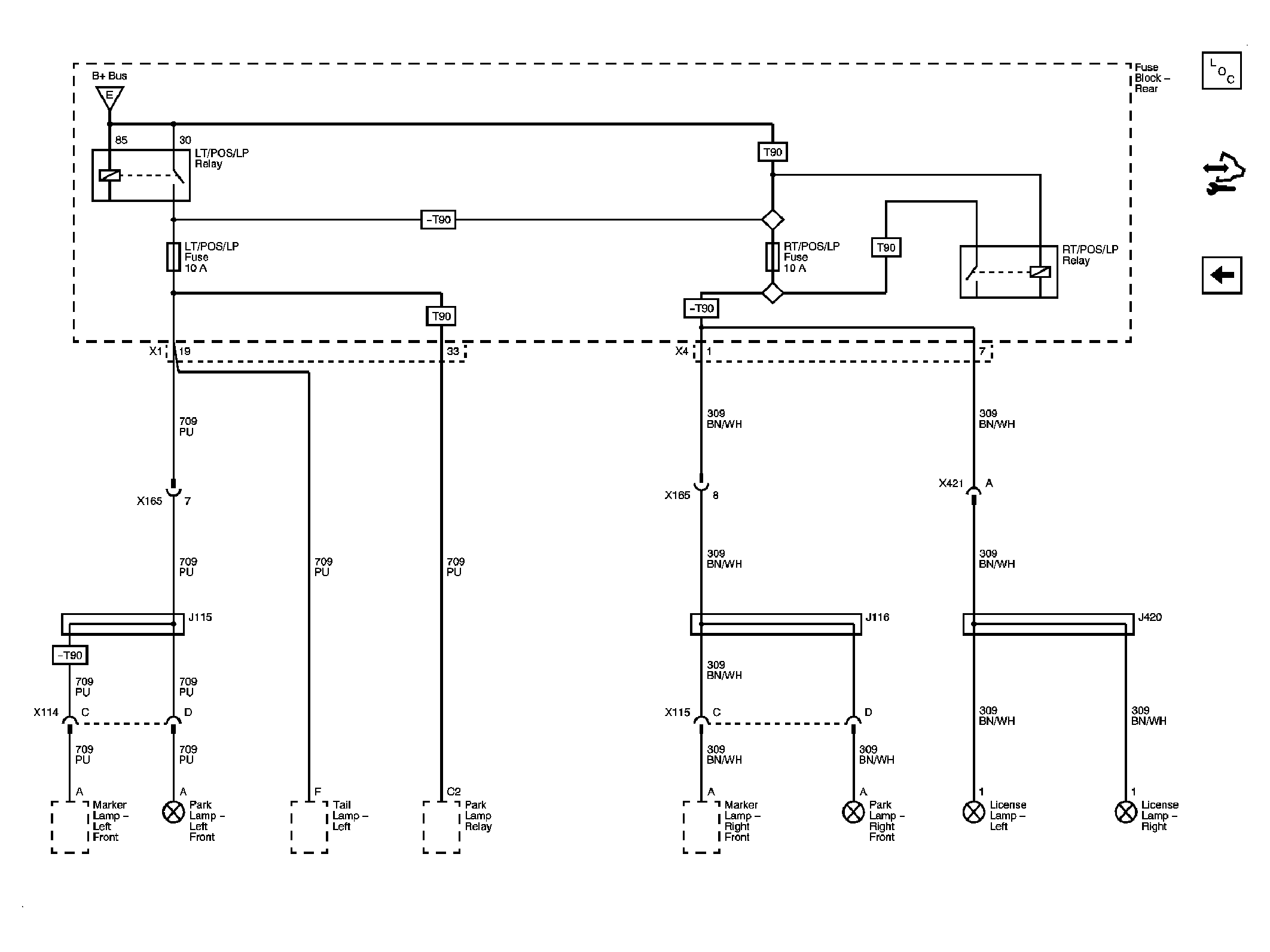

Fig 15: LT/POS/LP and RT/POS/LP Fuses

Courtesy of GENERAL MOTORS CORP.
