Instrument Cluster Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

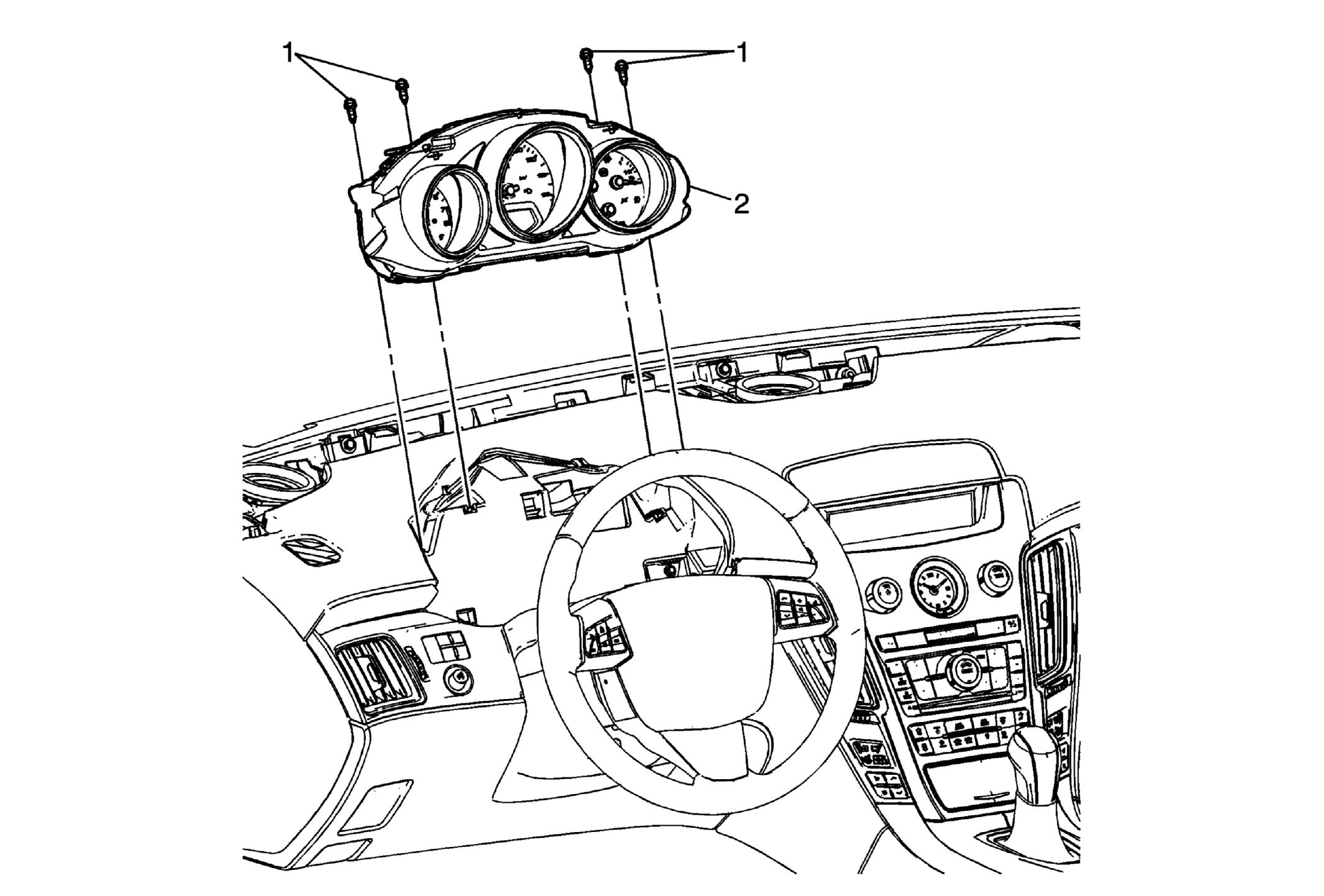

Fig 1: Instrument Cluster Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement .
1	Instrument Panel Cluster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and set up of the cluster assembly.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement .

Instrument Panel Cluster Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Cluster Assembly

Procedure

Disconnect the electrical connections.
Refer to Control Module References for programming and set up of the cluster assembly.
