Instrument Panel Compartment Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

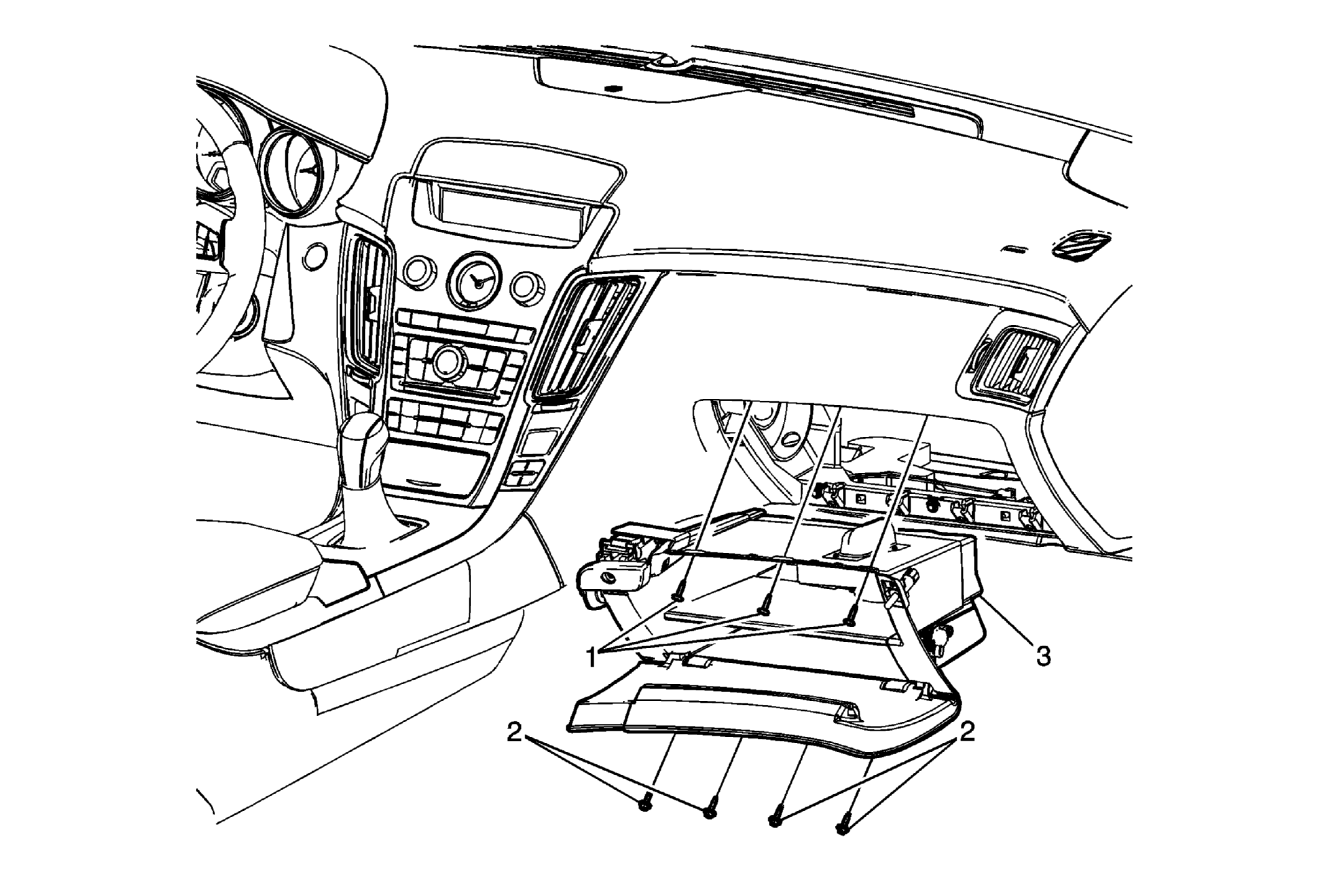

Fig 1: Instrument Panel Compartment Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Bolt (Qty: 4) Tighten: 2.5 N.m (22 lb in)
3	Instrument Panel Compartment Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel compartment assembly, transfer all necessary components.

Callout

Component Name

Instrument Panel Compartment Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Compartment Bolt (Qty: 4)

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Compartment Assembly

Procedure

Disconnect the electrical connections.
When replacing the instrument panel compartment assembly, transfer all necessary components.
