Driver Knee Bolster Bracket Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

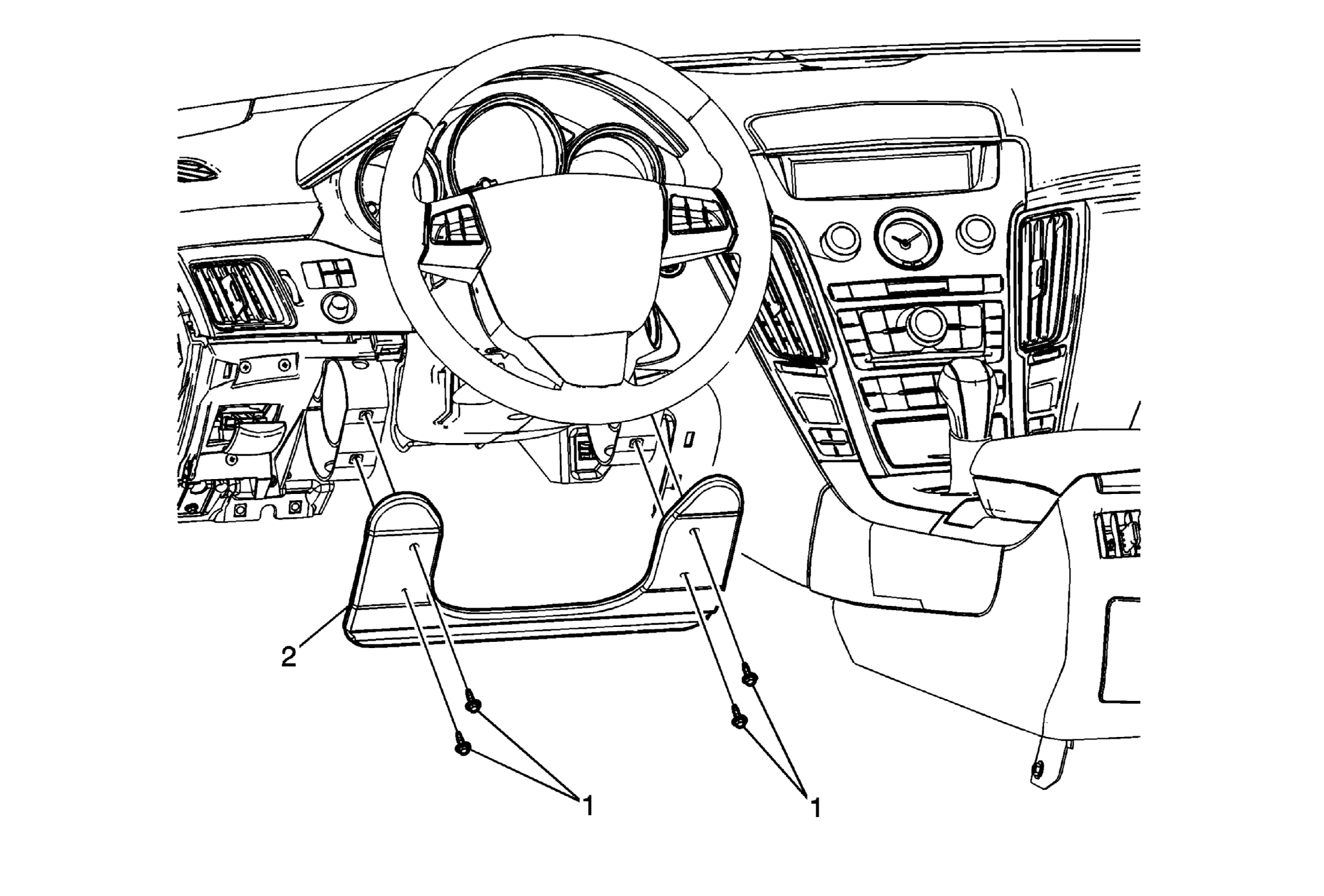

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel driver knee bolster assembly. Refer to Driver Knee Bolster Replacement |
|
| 1 | Instrument Panel Driver Knee Bolster Bracket Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Instrument Panel Driver Knee Bolster Bracket |
