Front Seat Front Finish Panel Replacement

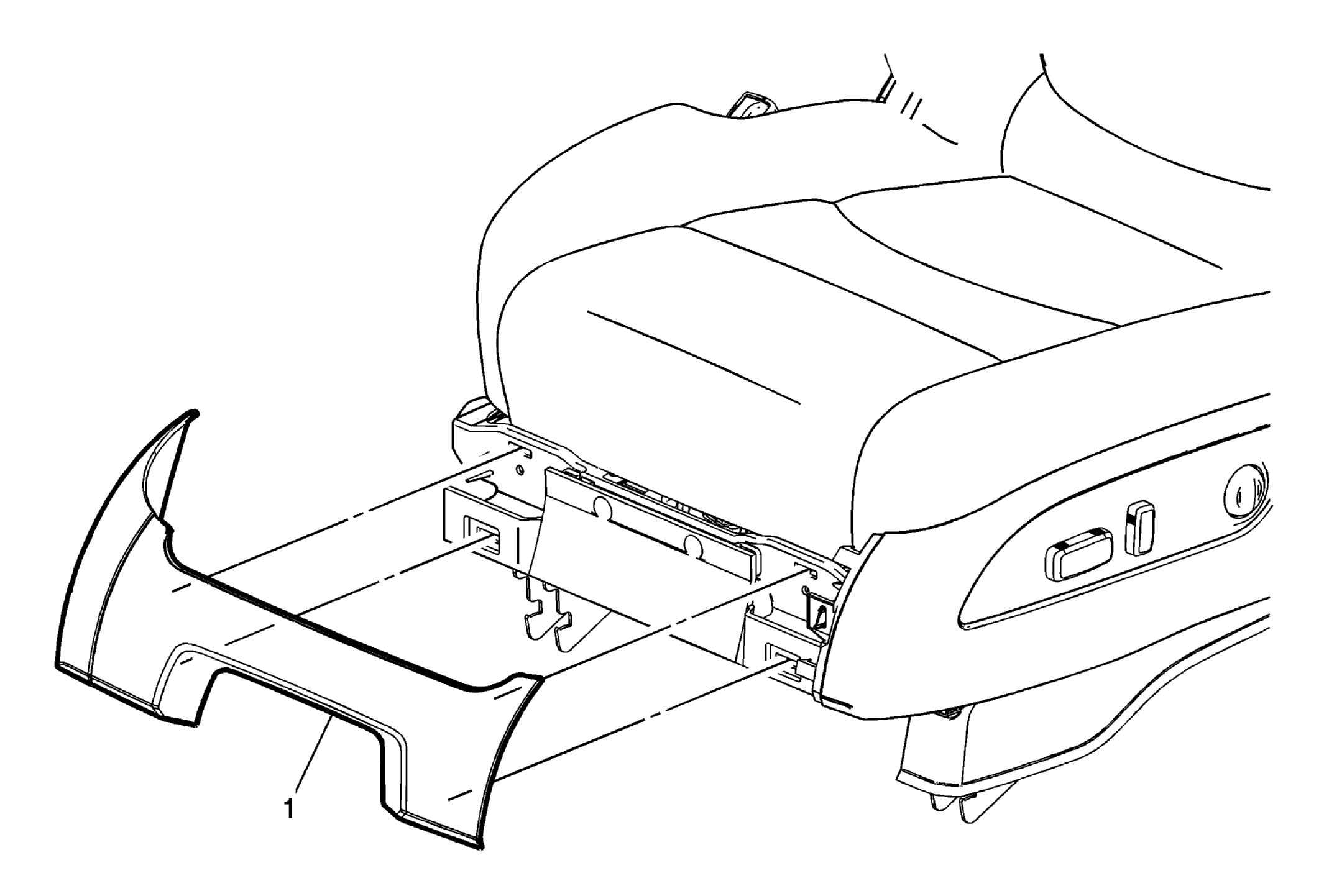

Fig 1: Front Seat Front Finish Panel
GM2876815Courtesy of GENERAL MOTORS COMPANY
Front Seat Front Finish Panel Replacement

Callout Component Name
1 Front Seat Front Finish Panel

Procedure

  1. Gently pull the cover forward to disengage the retainer clips.
  2. Pinch together the retainers that attach the recliner outer trim panel to the front finish panel and pull them apart.
