Roof Rear Console Replacement (Without RPO Cue

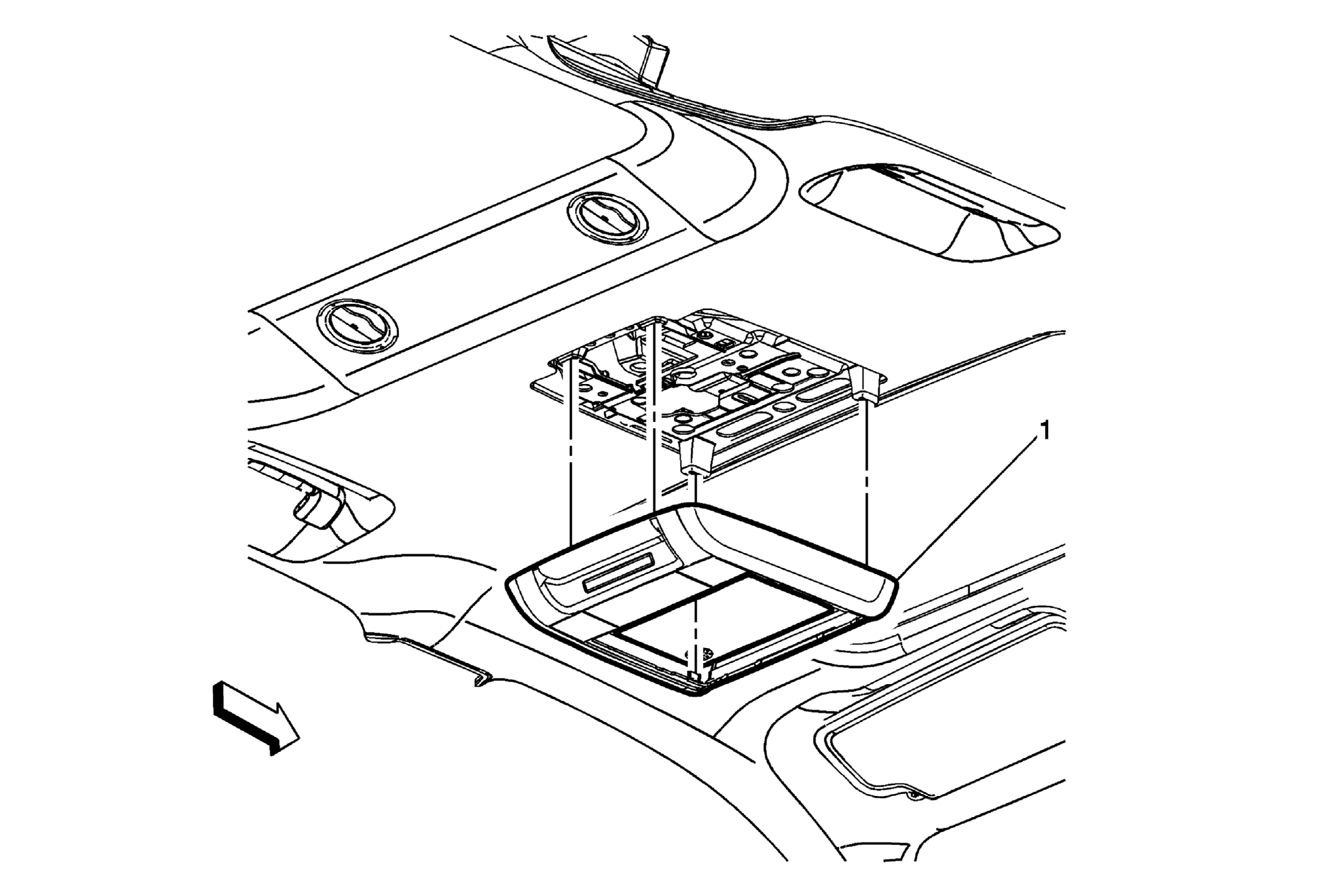

Fig 1: Roof Rear Console (Without RPO Cue

Courtesy of GENERAL MOTORS COMPANY

Roof Rear Console Replacement (without RPO Cue

Callout	Component Name
Preliminary Procedure Remove the video display assembly. Refer to Video Display Replacement U1241 and Video Display Replacement (U42/C3U) .
1	Roof Console Assembly Procedure Pull down to disengage the retainer clips. Disconnect the electrical connectors. If replacing the rear roof console, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the video display assembly. Refer to Video Display Replacement U1241 and Video Display Replacement (U42/C3U) .

Roof Console Assembly

Procedure
