Instrument Panel Compartment Access Hole Cover Replacement (Enclave)
Instrument Panel Compartment Access Hole Cover Replacement (Enclave)

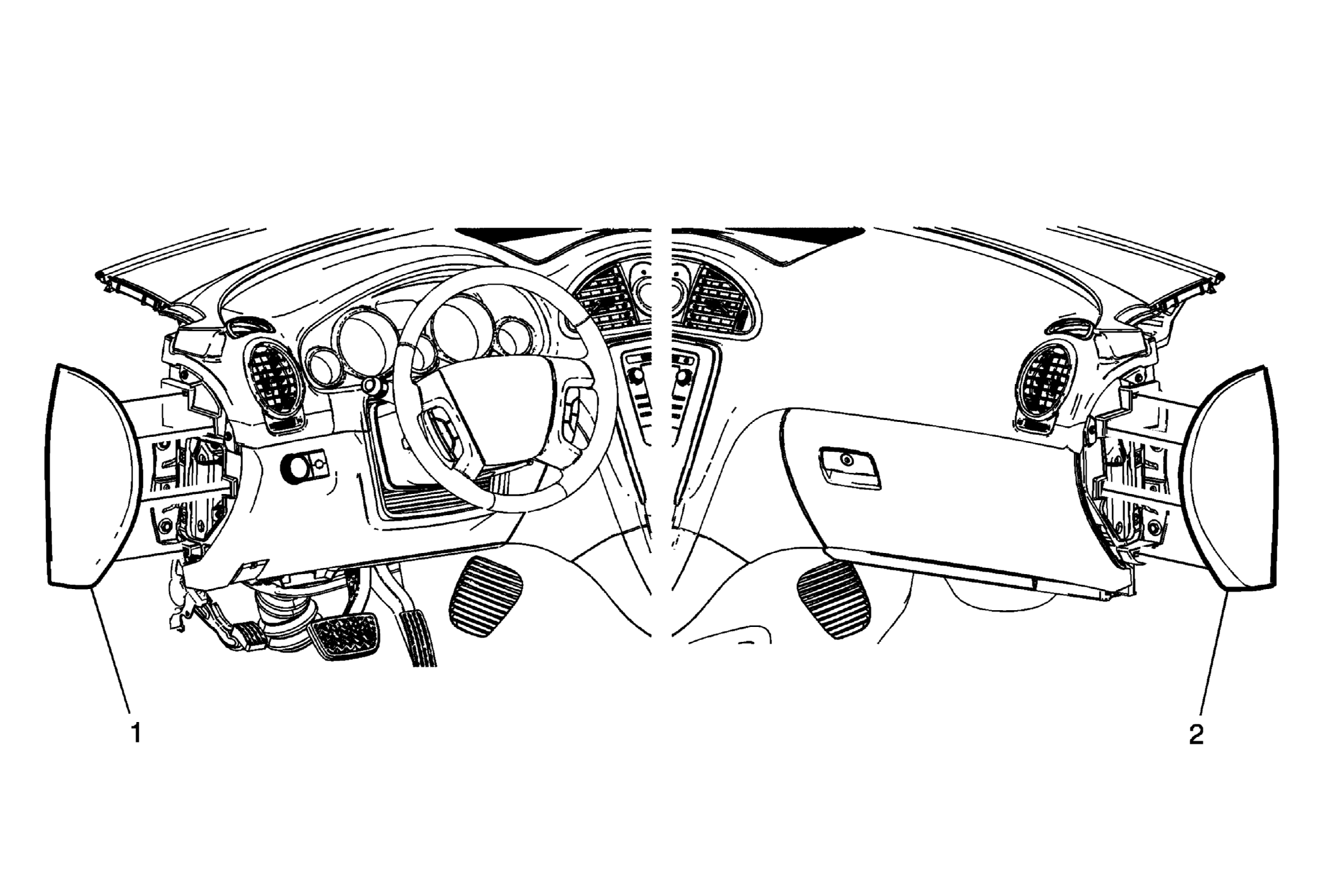

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Compartment Access Hole Cover - Left Side Procedure Use a flat bladed plastic trim tool in order to disengage the retainers securing the instrument panel outer trim cover to the instrument panel assembly. |
| 2 | Instrument Panel Compartment Access Hole Cover - Right Side Procedure Use a flat bladed plastic trim tool in order to disengage the retainers securing the instrument panel outer trim cover to the instrument panel assembly. |
