Instrument Panel Cluster Trim Plate Replacement (Traverse)
Instrument Panel Cluster Trim Plate Replacement (Traverse)

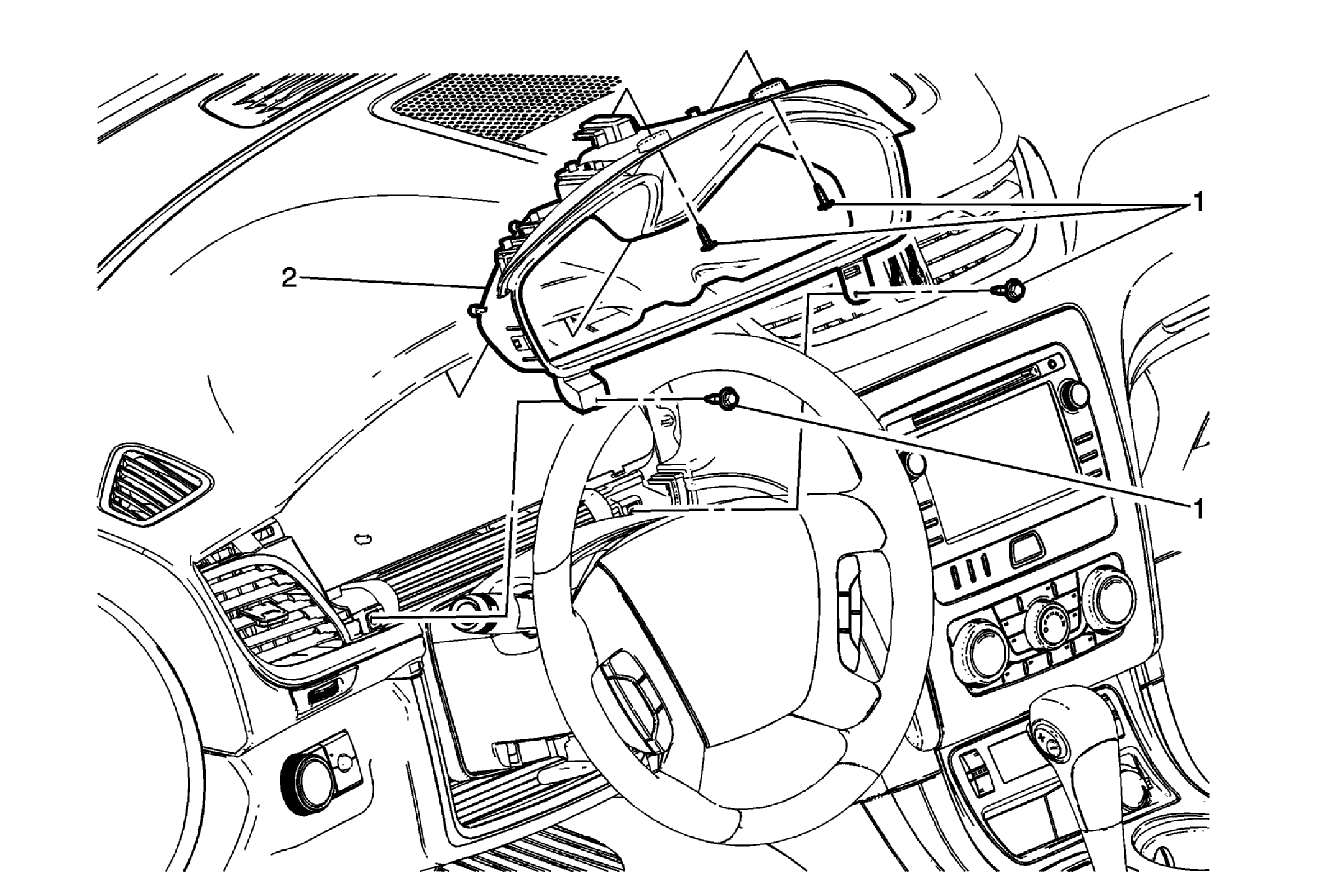

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel accessory trim pad. Refer to Instrument Panel Accessory Trim Pad Replacement (Traverse) . |
|
| 1 | Instrument Panel Cluster Trim Plate Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Cluster Trim Plate Assembly |
