Instrument Panel Cluster Trim Plate Replacement (Enclave)

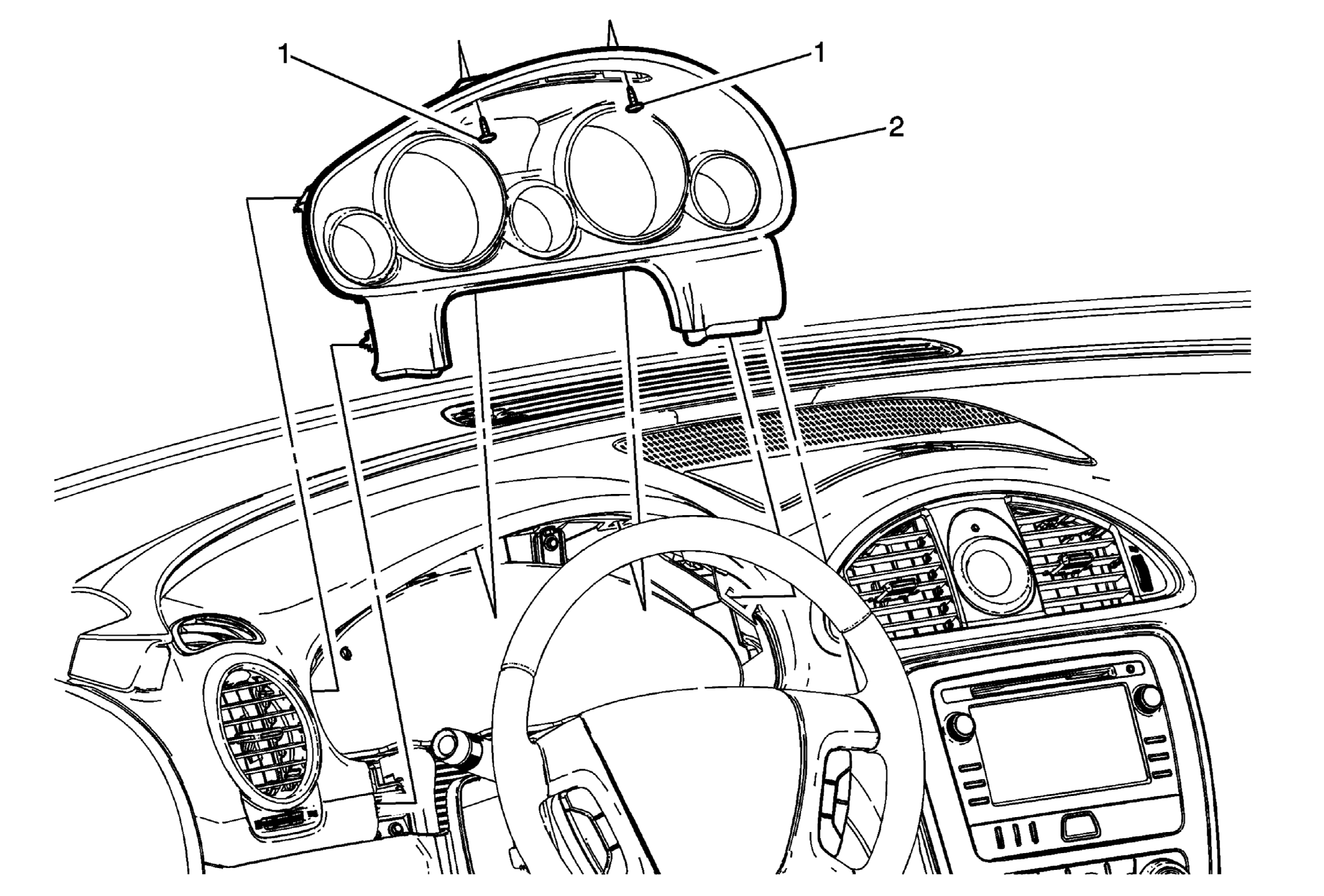

Fig 1: Instrument Panel Cluster Trim Plate (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement (Enclave) .
1	Instrument Panel Cluster Trim Plate Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Cluster Trim Plate Assembly Procedures Starting from the top, use a plastic trim tool to release the retainers from the instrument panel trim pad. Pull up on the trim plate to clear the driver knee bolster.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate cover. Refer to Instrument Panel Cluster Trim Plate Cover Replacement (Enclave) .

Instrument Panel Cluster Trim Plate Screw (Qty: 2)

CAUTION:

Instrument Panel Cluster Trim Plate Assembly

Procedures

Starting from the top, use a plastic trim tool to release the retainers from the instrument panel trim pad.
Pull up on the trim plate to clear the driver knee bolster.
