Instrument Panel Cluster Trim Plate Replacement (Acadia)

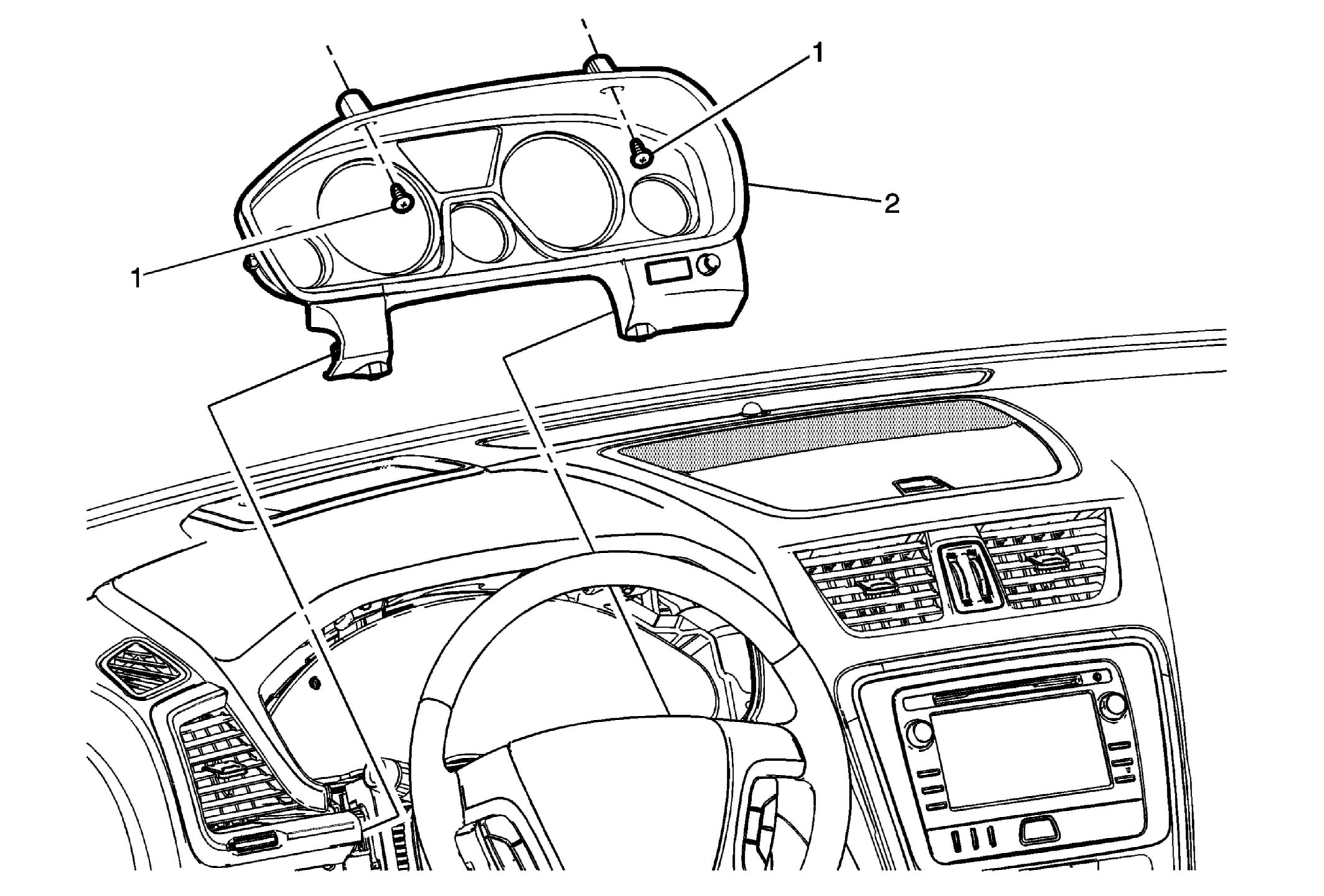

Fig 1: Instrument Panel Cluster Trim Plate (Acadia)
GM2866523Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Cluster Trim Plate Replacement (Acadia)

Callout Component Name
Preliminary Procedure
Remove the drivers knee bolster. Refer to Driver Knee Bolster Replacement (Acadia) , Driver Knee Bolster Replacement (Enclave)  or Driver Knee Bolster Replacement (Traverse) .
1 Instrument Panel Cluster Trim Plate Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Cluster Trim Plate Assembly

Procedures

  1. Disconnect the electrical connection.
  2. Transfer all necessary components.
