Instrument Panel Center Compartment Replacement (Acadia)

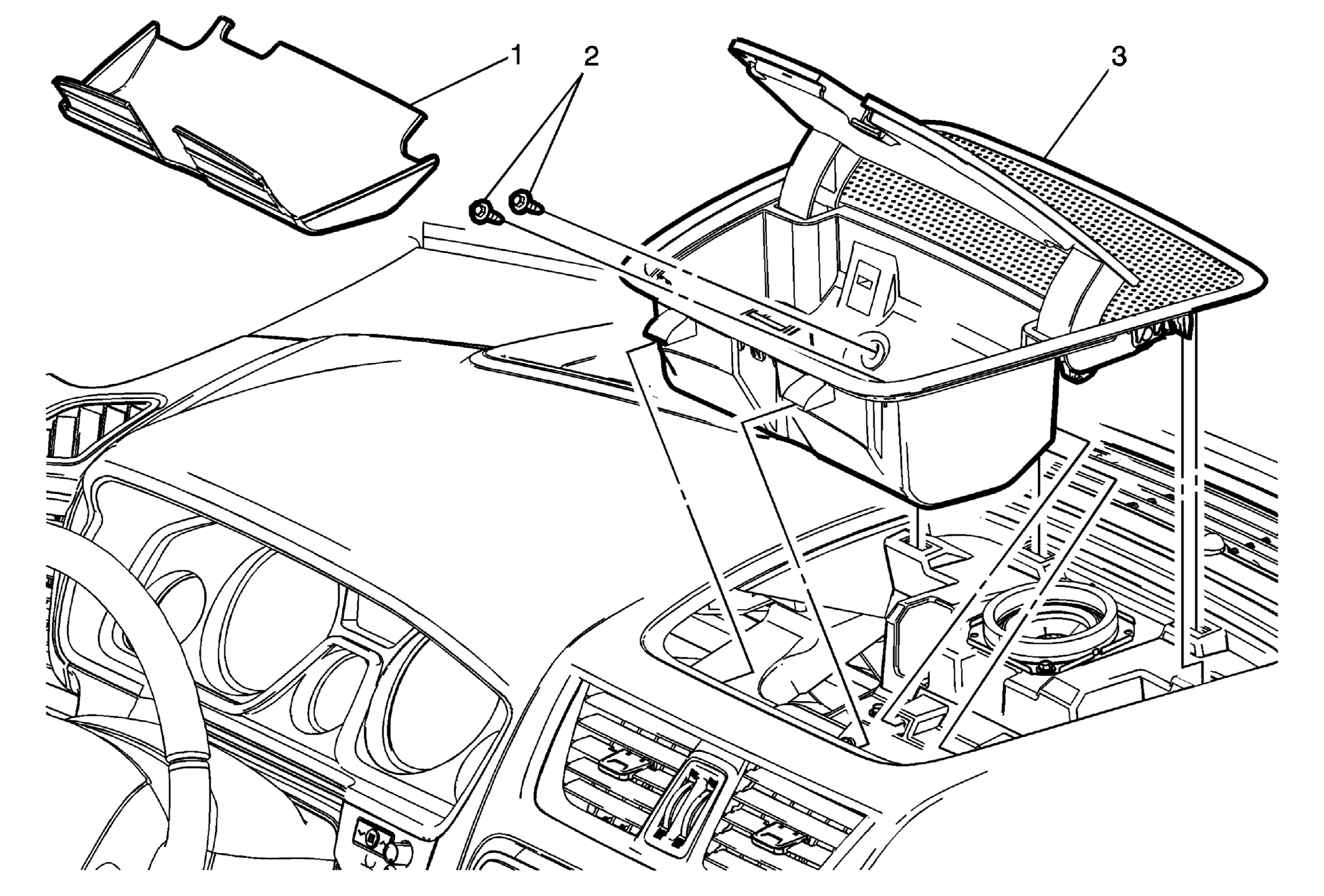

Fig 1: Instrument Panel Center Compartment (Acadia)
GM2835939Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Compartment Replacement (Acadia)

Callout Component Name
1 Instrument Panel Center Compartment Liner
2 Instrument Panel Center Compartment Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Instrument Panel Center Compartment Assembly

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel center compartment to the instrument panel assembly.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
