Head-Up Display Schematics: UV6

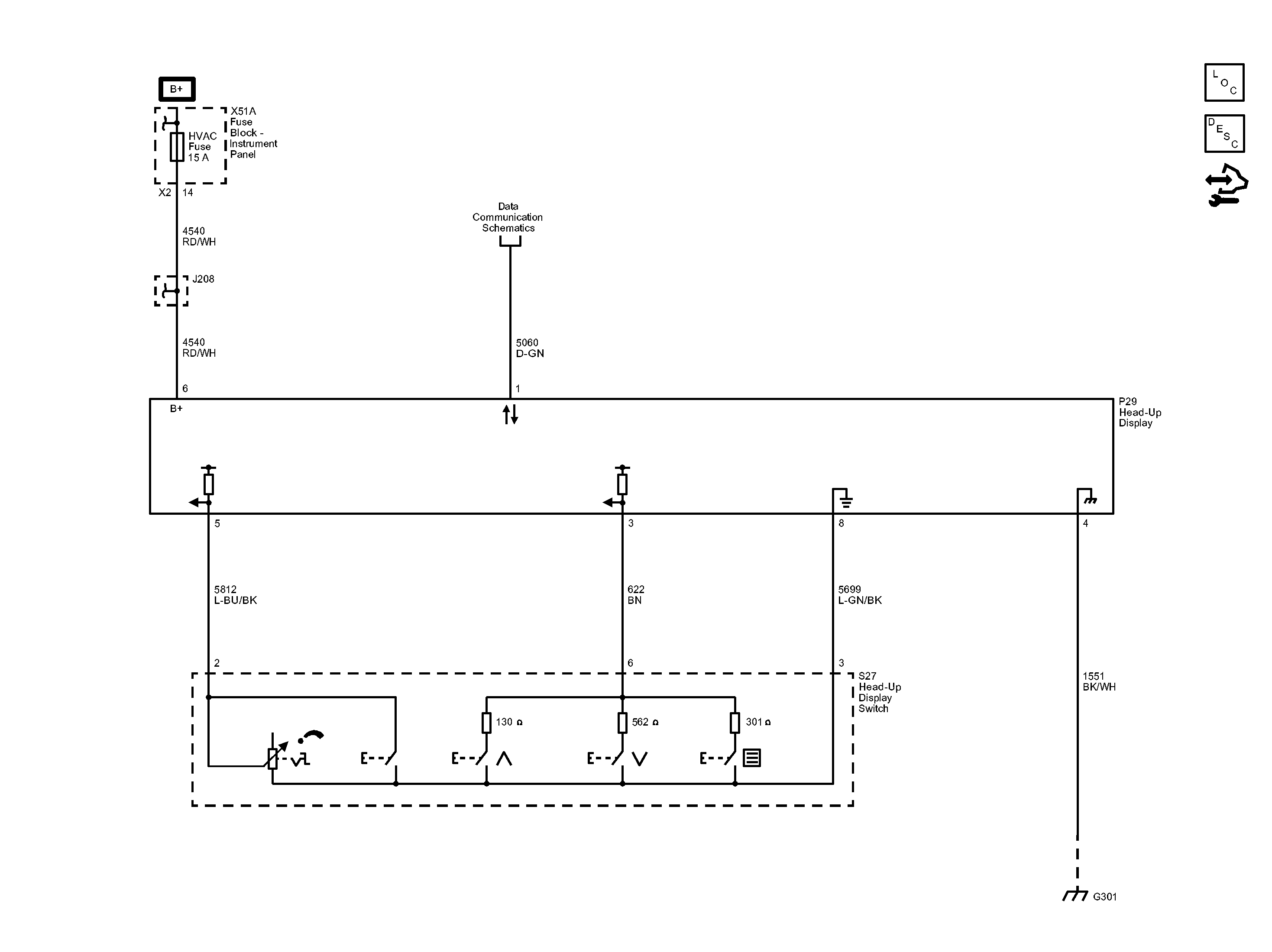

Fig 1: Head-Up Display (UV6) Wiring Schematic

GM2867298

Courtesy of GENERAL MOTORS COMPANY
