Driver Information System Schematics: W49

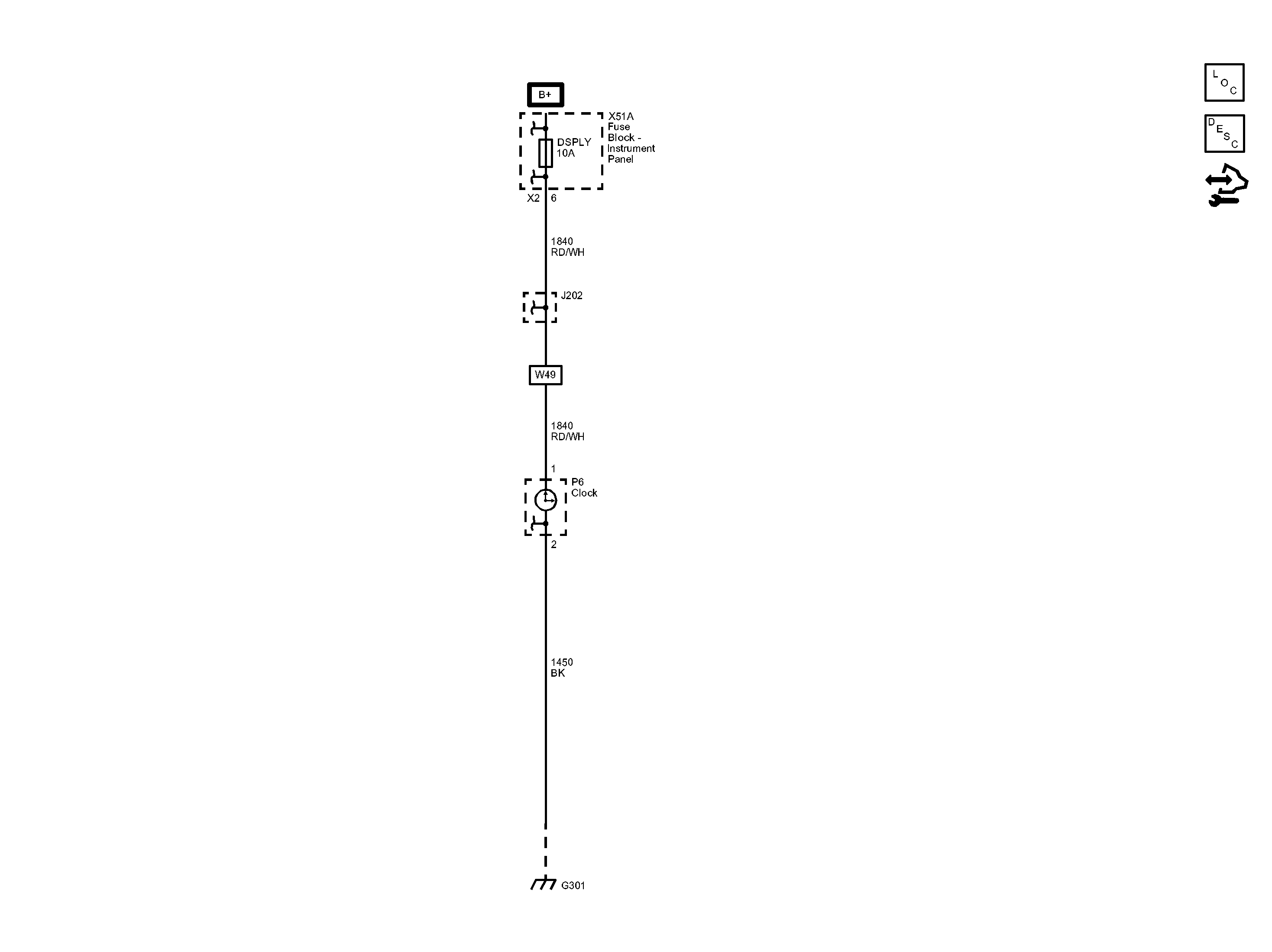

Fig 1: Driver Information System (W49) Wiring Schematic

GM2867289

Courtesy of GENERAL MOTORS COMPANY
