Underhood Electrical Center or Junction Block Replacement

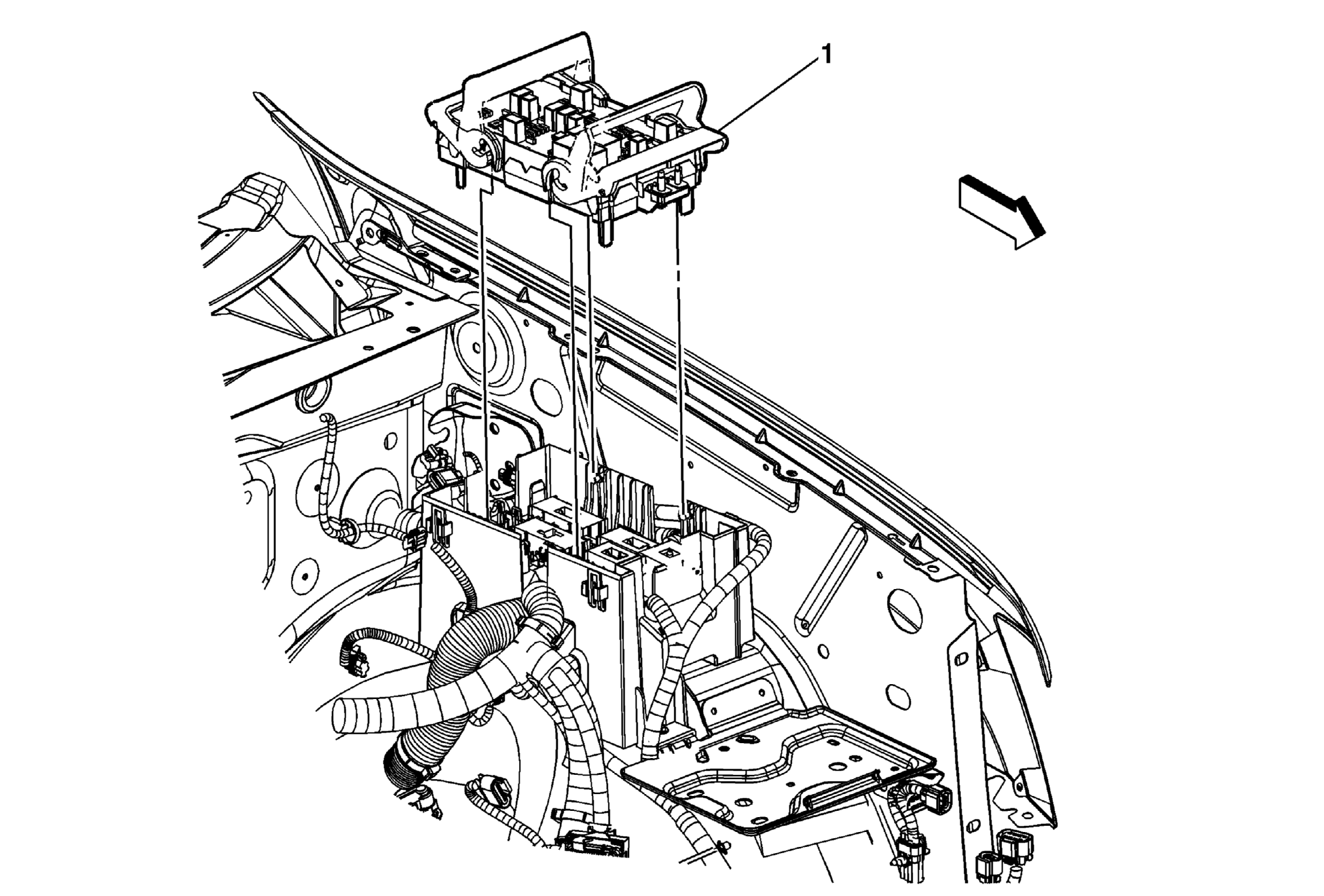

Fig 1: View Of Underhood Electrical Center/Junction Block
GM1827690Courtesy of GENERAL MOTORS COMPANY
Underhood Electrical Center or Junction Block Replacement

Callout Component Name
Preliminary Procedure
Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection .
1 Underhood Electrical Center/Junction Block
  • Remove the cover.
  • Release the retainers securing the junction block to the bracket.
