G300 (1 of 2), G302, G311 (HP2), G312 (HP2), G313 (HP2) and G314 (HP2) Wiring Schematics

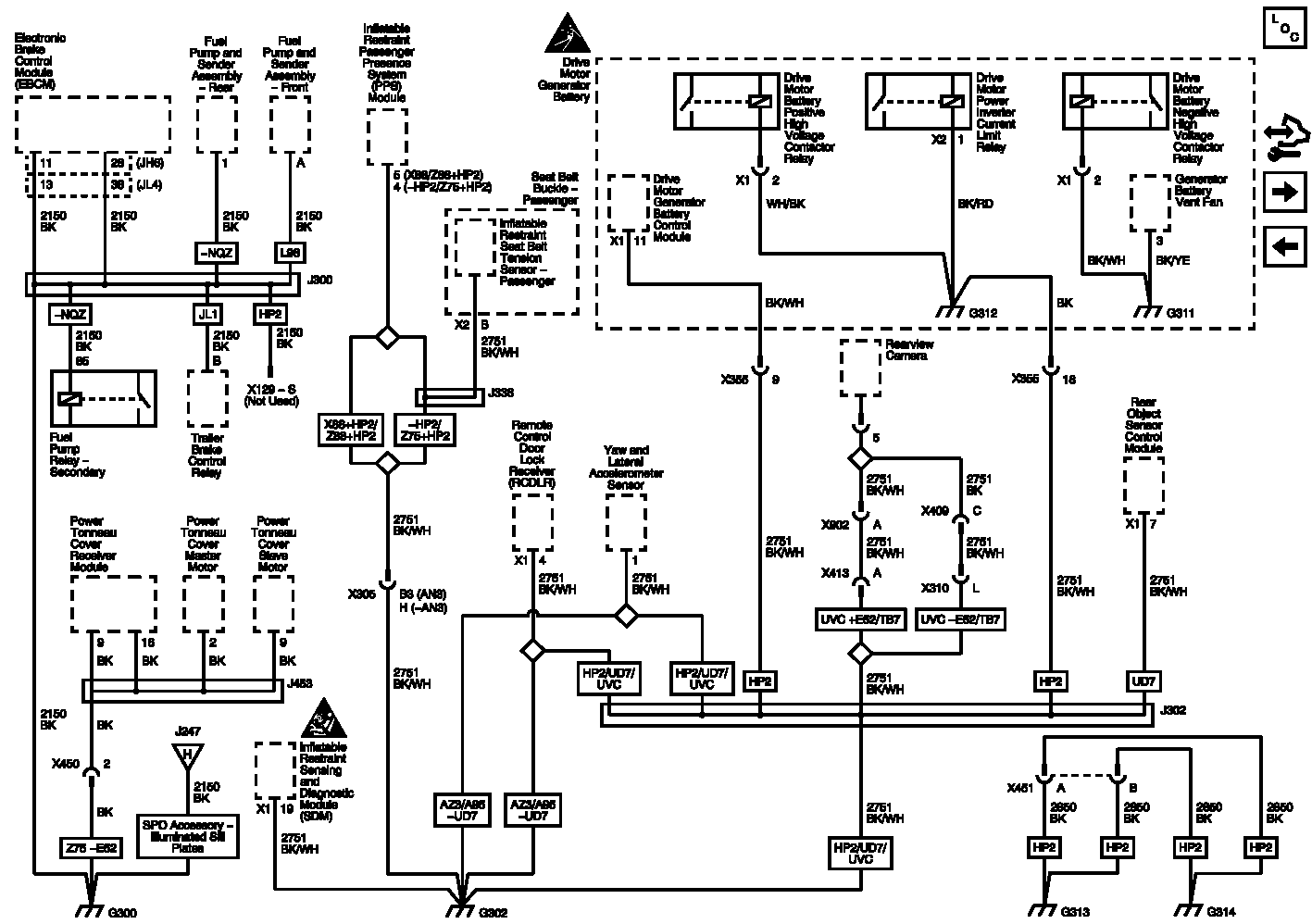

Fig 1: G300 (1 of 2), G302, G311 (HP2), G312 (HP2), G313 (HP2) and G314 (HP2) Wiring Schematics
GM2635202Courtesy of GENERAL MOTORS COMPANY
