Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)
 Courtesy of
|

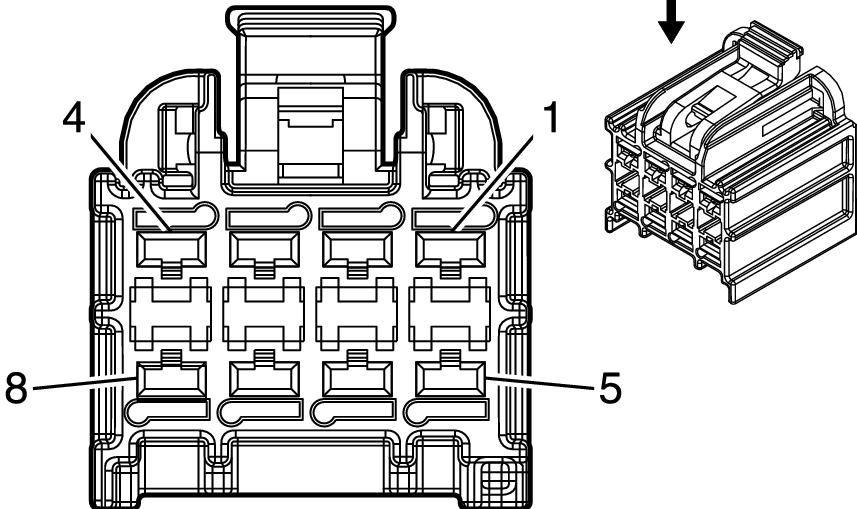

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13544529
- Service Connector: 13503877
- Description: 8-Way F GT FBT 280 Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13503877
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: Pins 1-3, 7 - 13544536/Not Available
- Terminal/Tray: Pins 4, 8 - 13544537/Not Available
- Core/Insulation Crimp: Not Available
|
Audio Amplifier X1 (UQA with Y91 or with STZ or UQS)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 D-BU/WH |
346 |
Left or Rear Subwoofer Speaker Output (+) |
| 2 |
0.8 L-GN/BK |
1794 |
Left or Rear Subwoofer Speaker Output (-) |
| 3 |
0.8 L-BU/BK |
315 |
Right Subwoofer Speaker Output (-) |
| 4 |
3 RD/WH |
3740 |
Battery Positive Voltage |
| 5-6 |
- |
- |
Not Used |
| 7 |
0.8 D-GN |
1795 |
Right Subwoofer Speaker Output (+) |
| 8 |
3 BK |
2550 |
Ground |
