Removal Procedure

    Fig 1: Spot Lamp Wiring Harness Push-In Retainer & Electrical Connector
    GM556316Courtesy of GENERAL MOTORS COMPANY
  1. Remove the spot lamp wiring harness push-in retainer from the windshield garnish molding, using a small flat bladed tool.
  2. Disconnect the electrical connector.

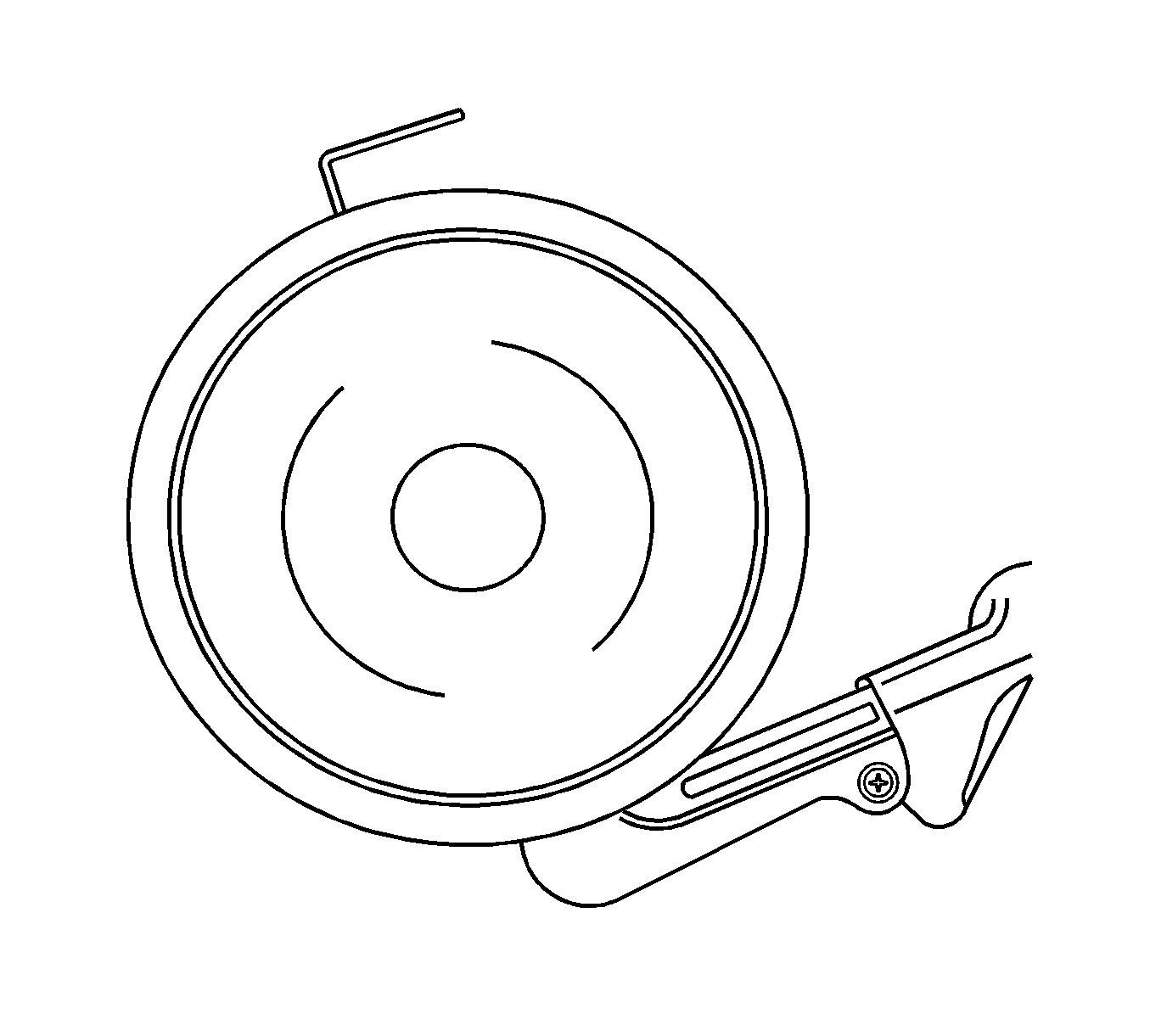

    3. Fig 2: Locating Spot Lamp Bezel Screw (RPO 7X6, 7X7)
    GM899866Courtesy of GENERAL MOTORS COMPANY
  3. Remove the screw from the spot lamp bezel.

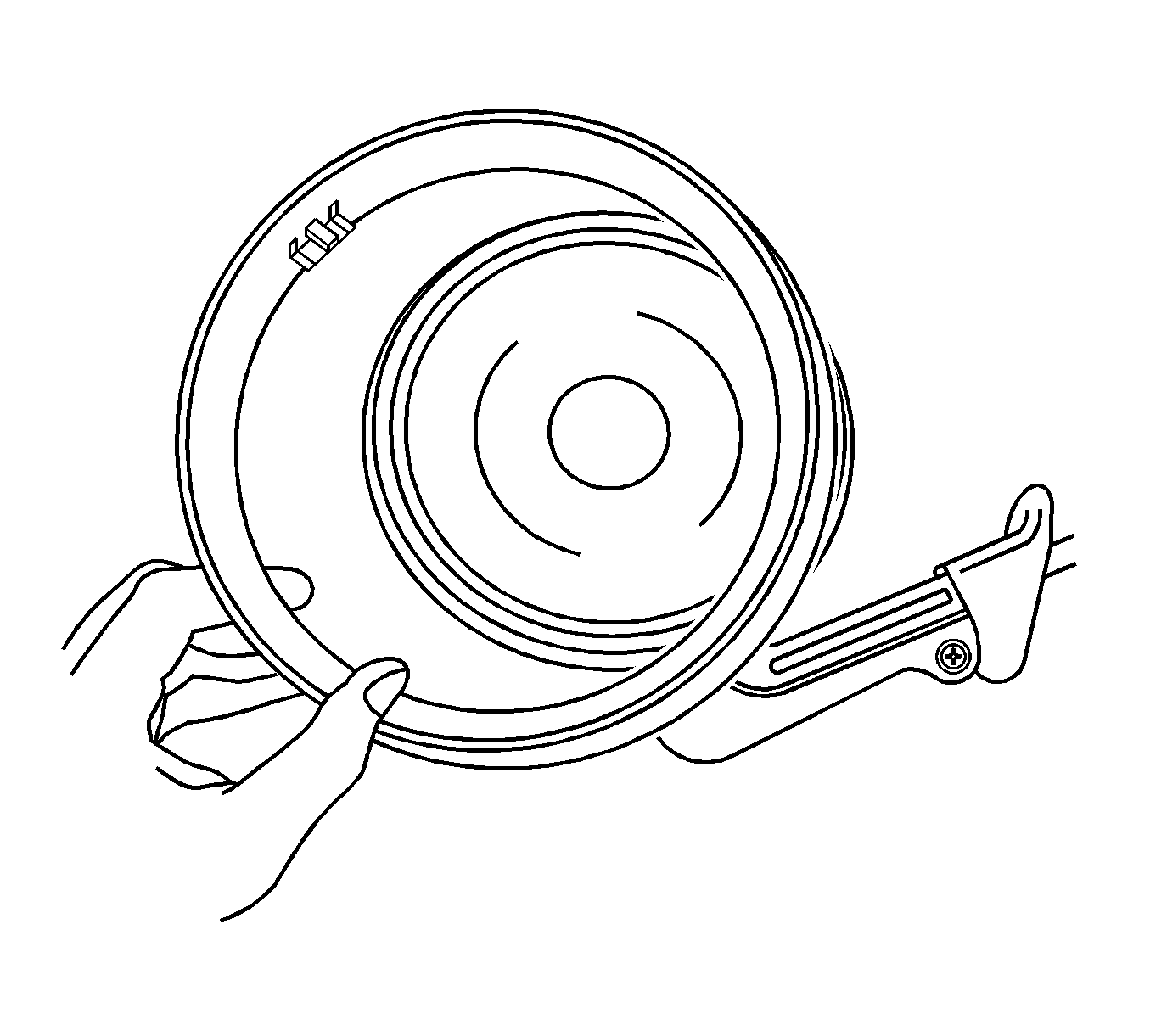

    4. Fig 3: Removing Spot Lamp Bezel (RPO 7X6, 7X7)
    GM899868Courtesy of GENERAL MOTORS COMPANY
  4. Remove the spot lamp bezel from the spot lamp.
    5. Fig 4: Removing Lamp From Spot Lamp (RPO 7X6, 7X7)
    GM557428Courtesy of GENERAL MOTORS COMPANY
  5. Remove the lamp from the spot lamp.

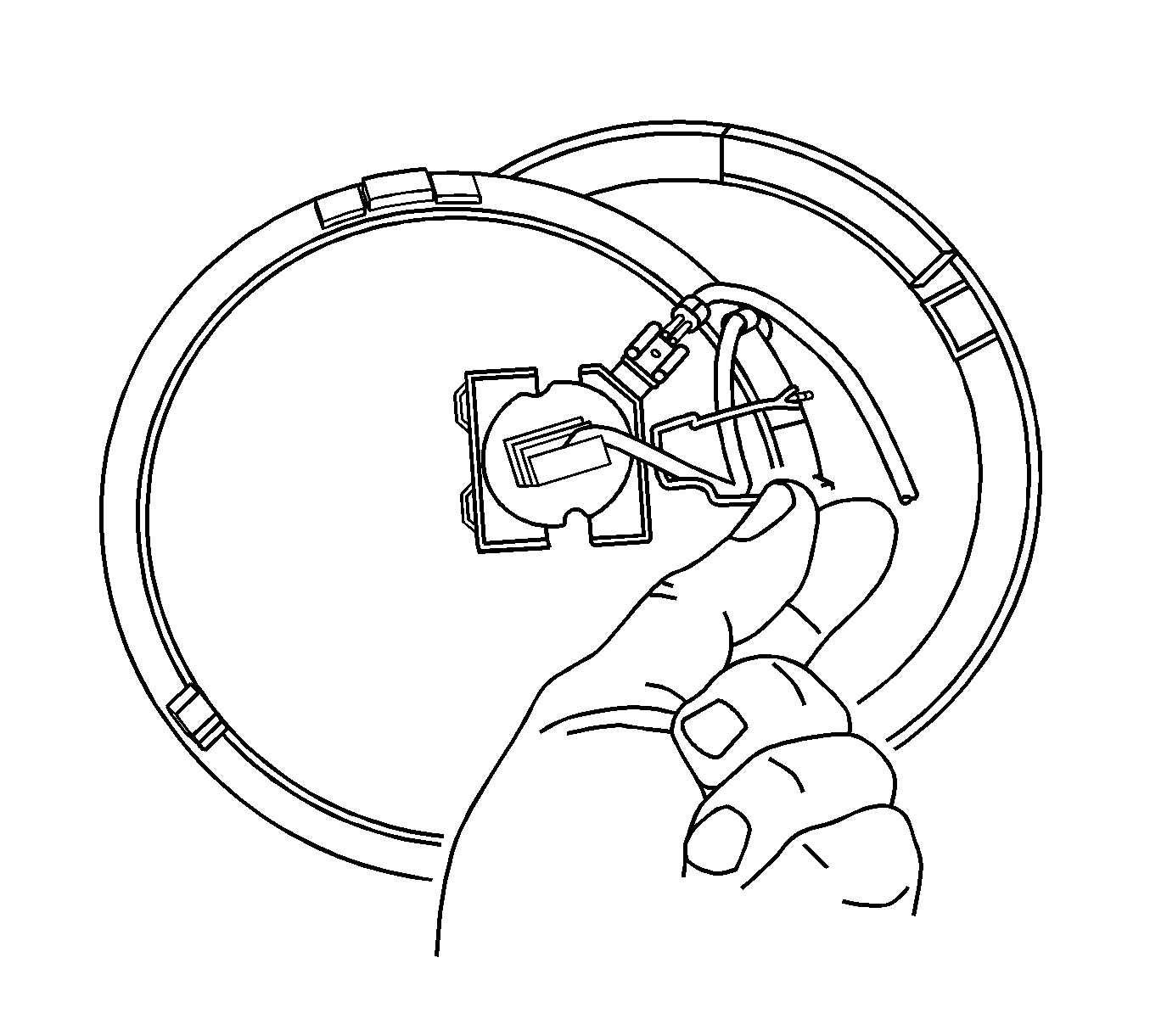

    6. Fig 5: Removing Spot Lamp Retaining Clip (RPO 7X6, 7X7)
    GM899869Courtesy of GENERAL MOTORS COMPANY
  6. Remove spot lamp bulb retaining clip.

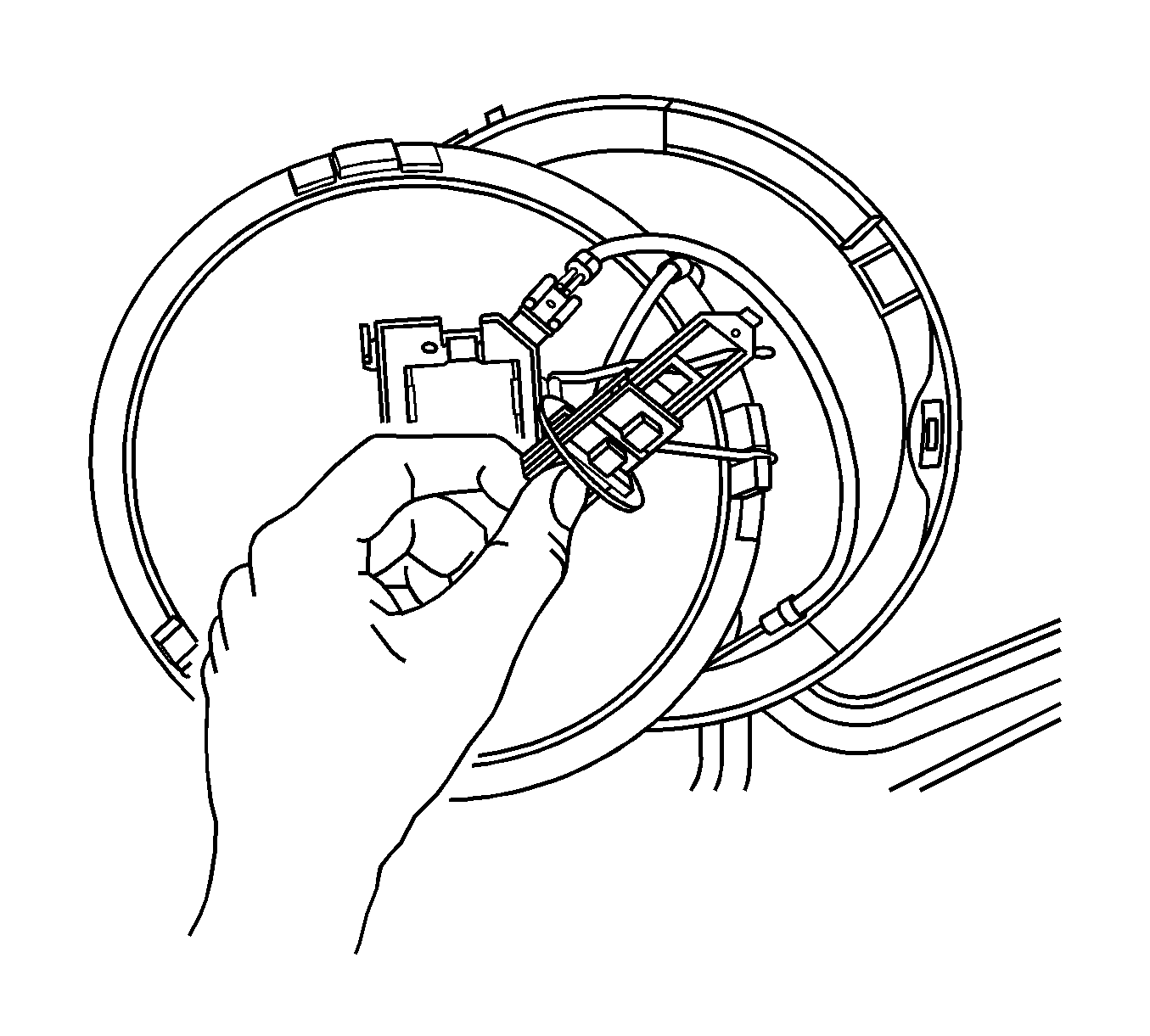

    7. Fig 6: Removing Spot Lamp Bulb From Spot Lamp (RPO 7X6, 7X7)
    GM899870Courtesy of GENERAL MOTORS COMPANY
  7. Remove the spot lamp bulb from the spot lamp.
    8. Fig 7: Disconnecting Spot Lamp Bulb Electrical Connector (RPO 7X6, 7X7)
    GM899872Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the spot lamp bulb electrical connector.
