Home >> GMC >> 2012 >> Terrain FWD V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T30/6T40/6T45/6T50 - Automatic Transmission >> 13. 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement (Gen 2)

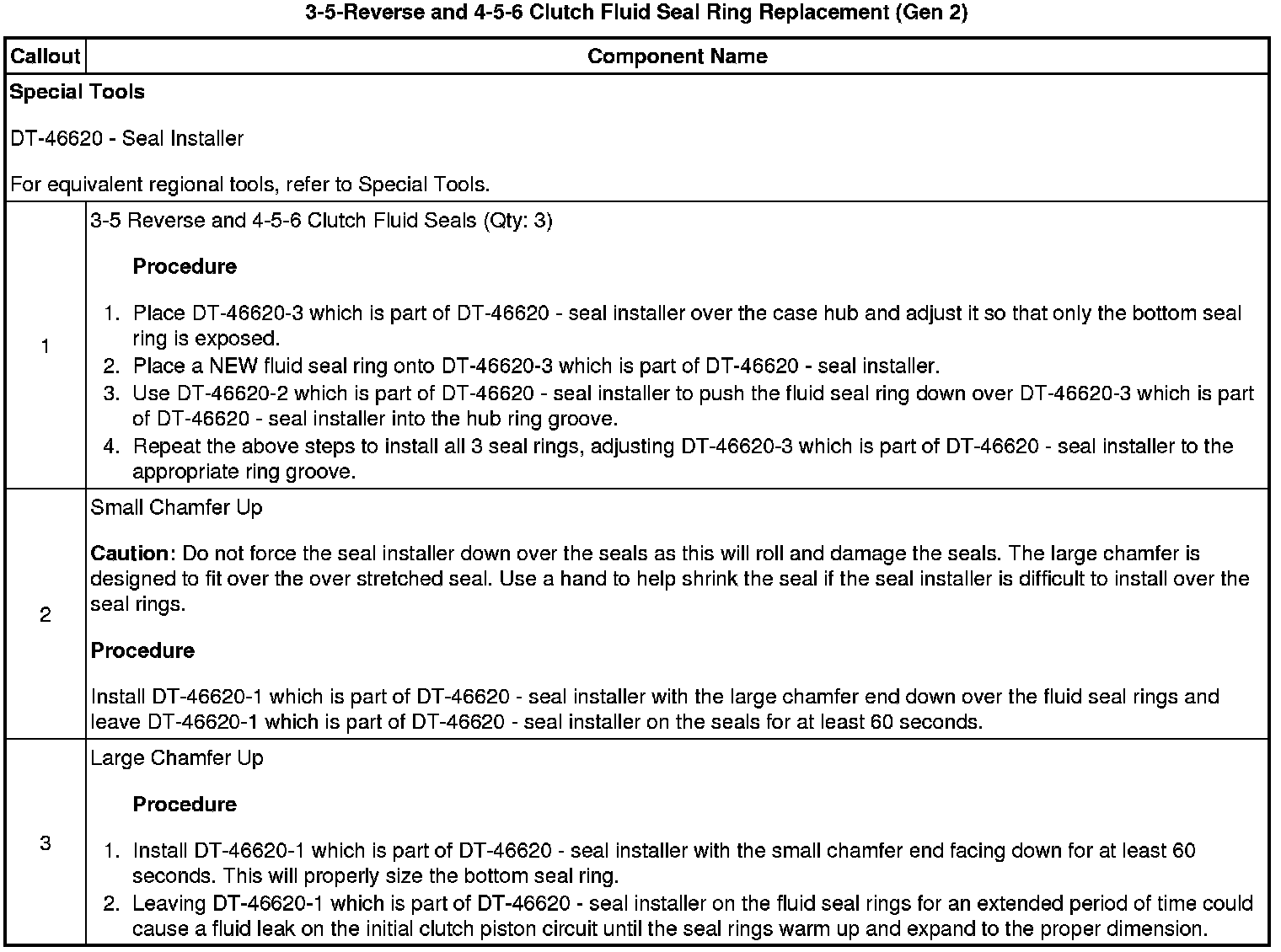

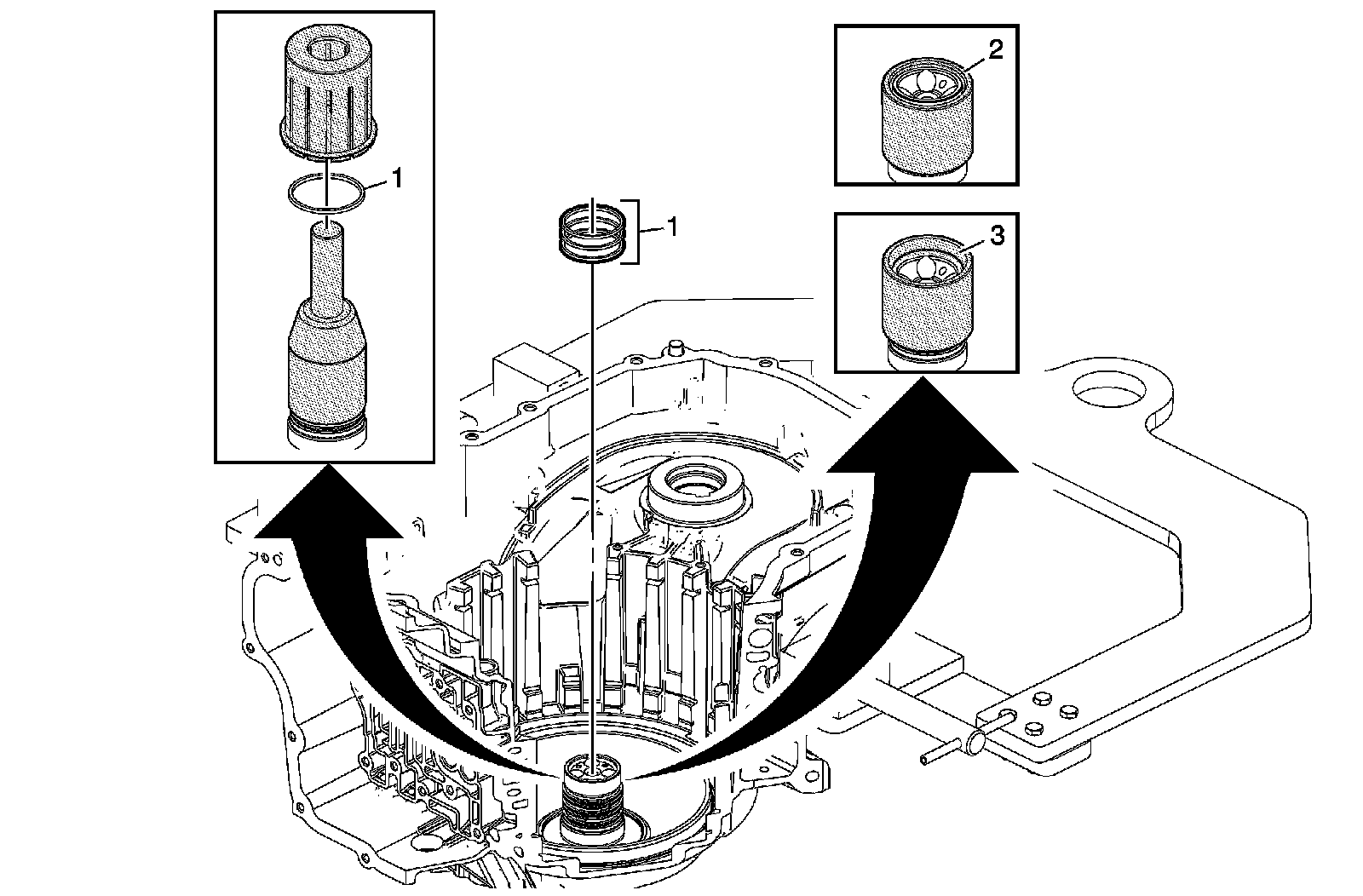

13. 3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement (Gen 2)




3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement (Gen 2)
