Ignition Coil Replacement - Bank 1

Ignition Coil Replacement - Bank 1

Removal Procedure

1. Remove the intake manifold. Refer to Intake Manifold Replacement Intake Manifold Replacement.

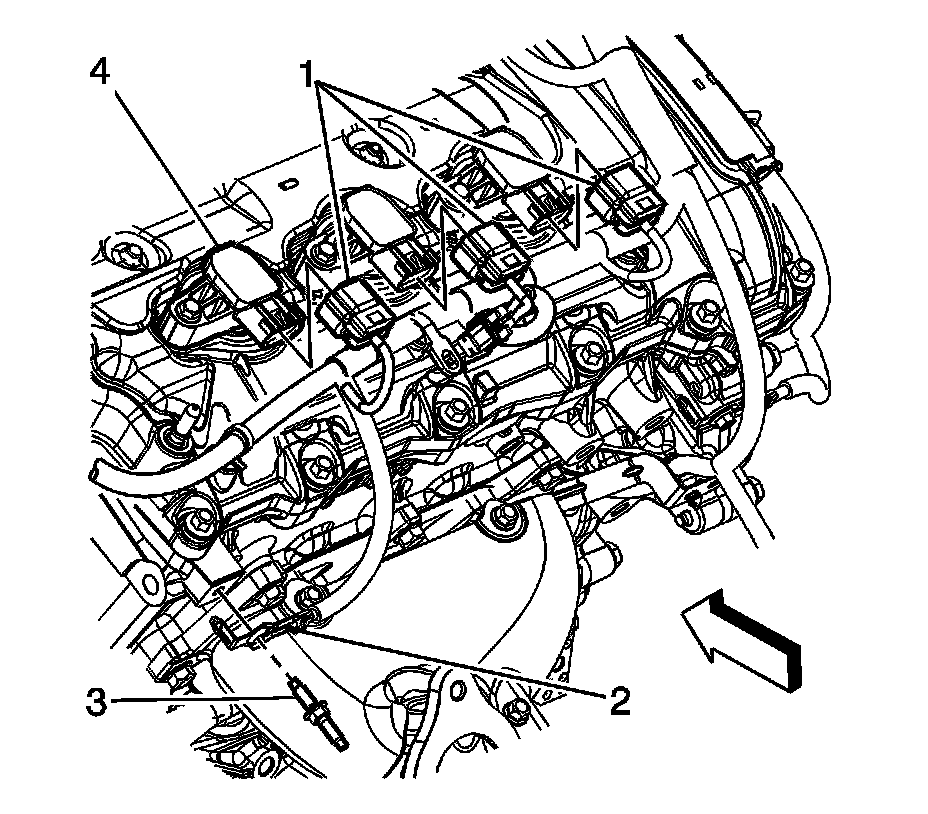

2. Disconnect the engine wiring harness electrical connector(s) (1) from the ignition coil(s) (4).





3. Remove the ignition coil bolt(s).

4. Remove the ignition coil(s).

Installation Procedure





1. Install the ignition coil(s).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the ignition coil bolt(s).

Tighten the bolt(s) to 10 Nm (89 lb in).





3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s) (4).

4. Install the intake manifold. Refer to Intake Manifold Replacement Intake Manifold Replacement.
