G403




Ground Views

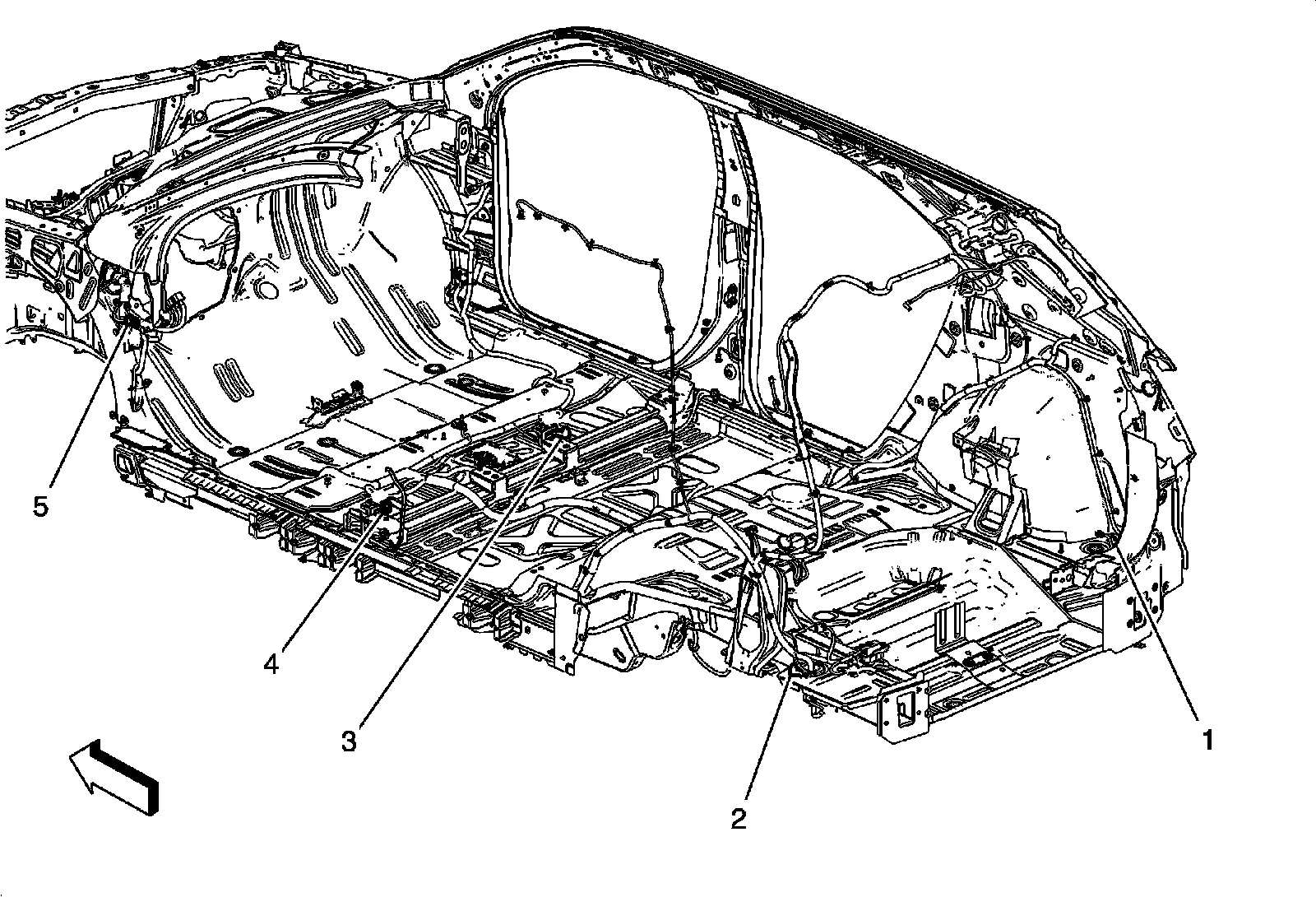

G205, G301, G311, G401 and G403





1 - G403

2 - G401

3 - G311

4 - G301

5 - G205
