6T30/6T40/6T45/6T50 - Automatic Transmission




Automatic Transmission Controls Schematics

Module Power, Ground, and Serial Data (MH7 or MHC)

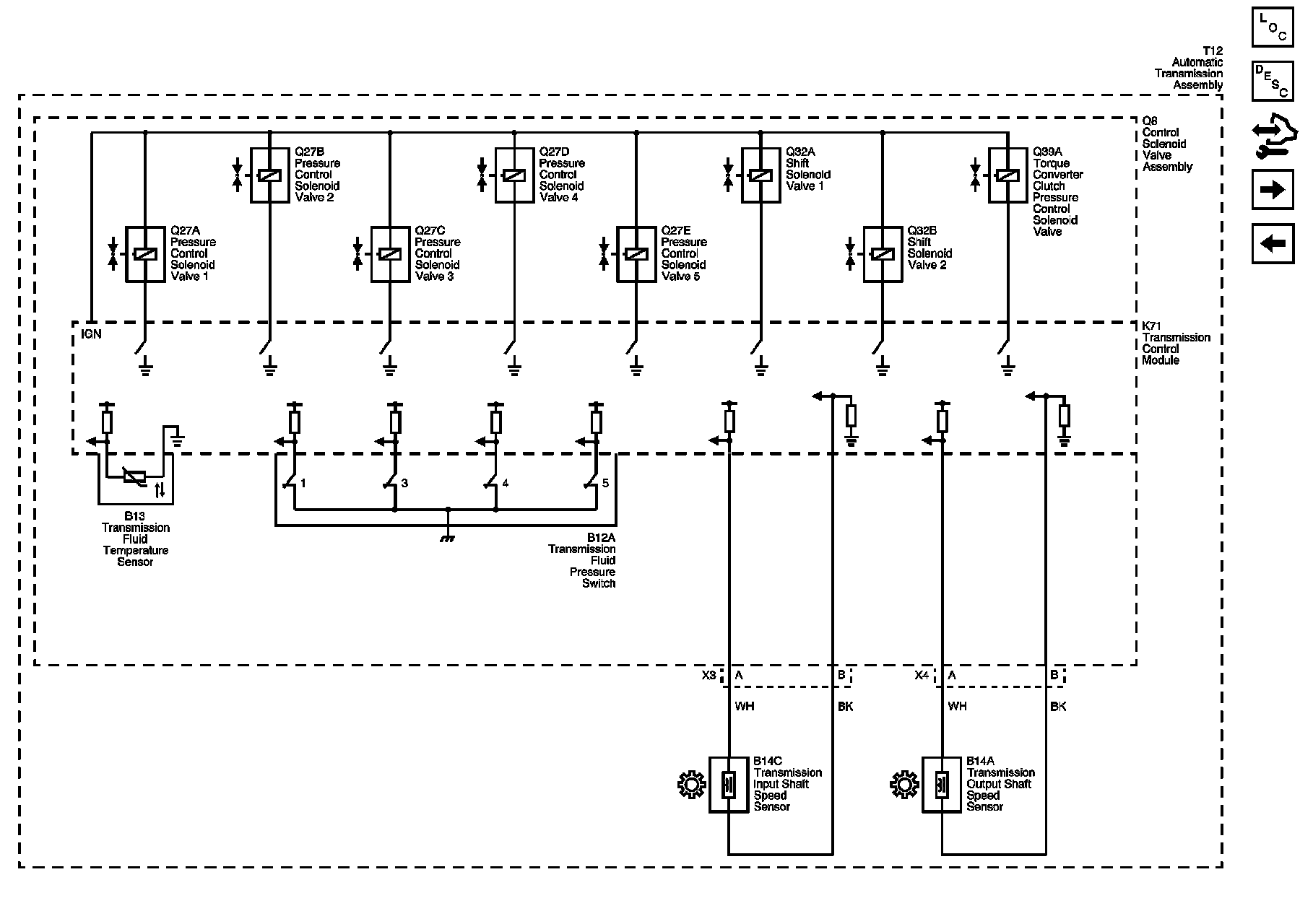

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls (MH7 or MHC)






Internal Mode Switch and Tap Up/Tap Down Switches (MH7 or MHC)
