GMC
>>
2012
>>
Terrain FWD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
System Diagram
>>
Radio X1
Radio X1
Component Connector End Views

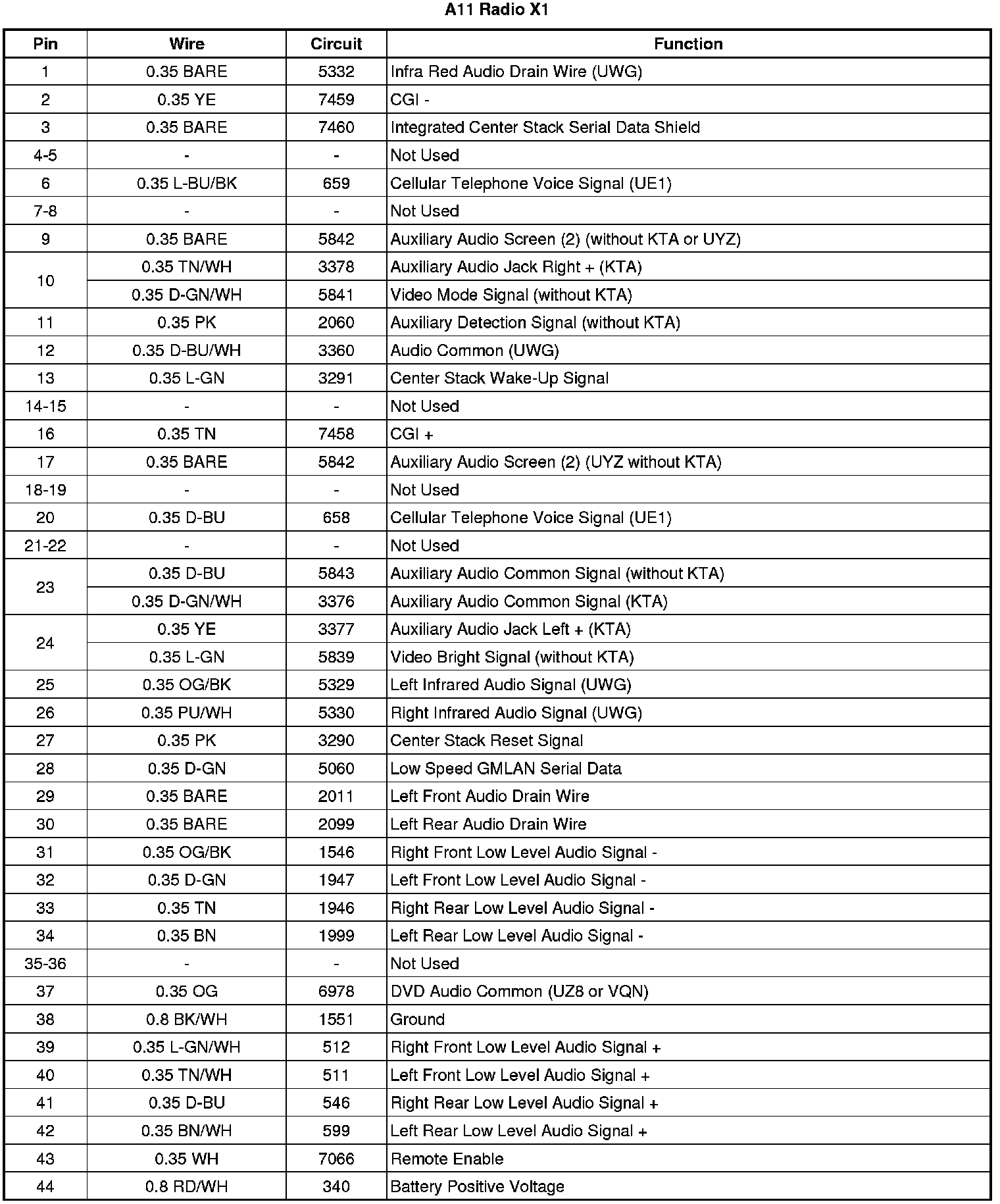

A11 Radio X1
