Outside Rearview Mirror - Passenger
Outside Rearview Mirror - Passenger
Component Connector End Views

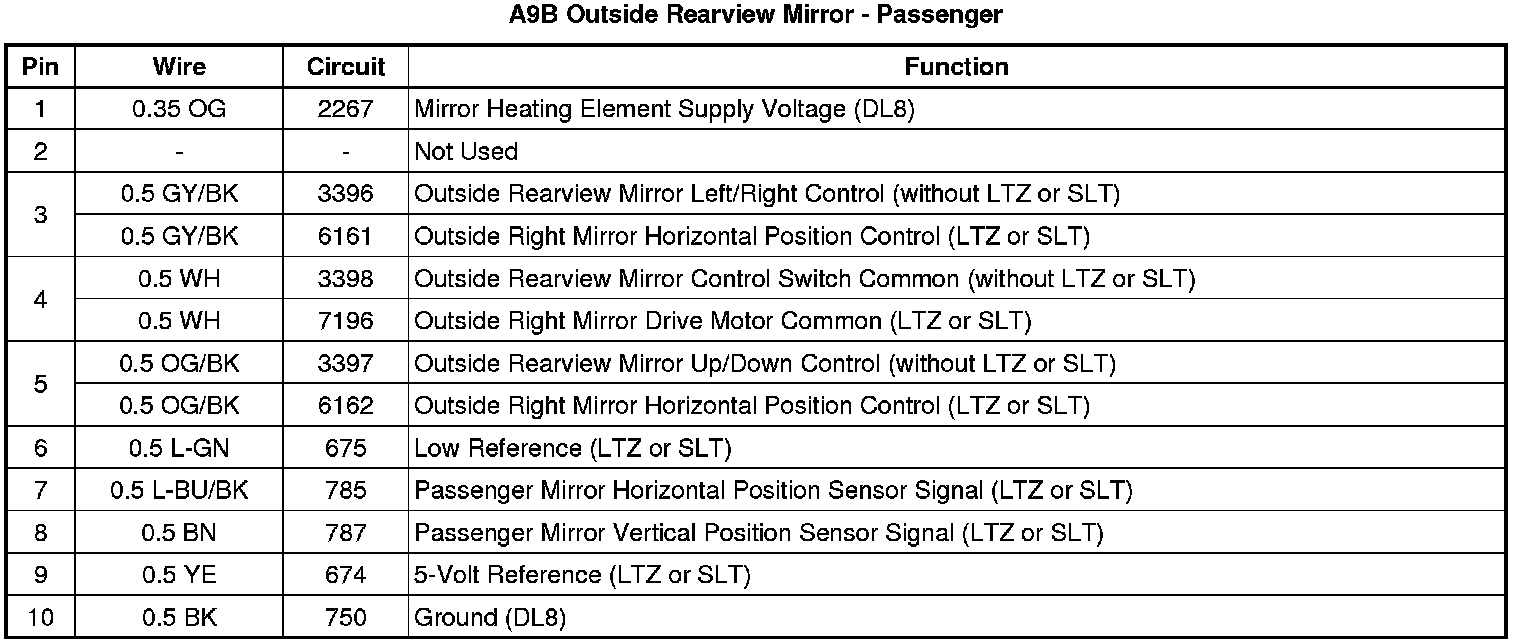

A9B Outside Rearview Mirror - Passenger
