Outside Rearview Mirror - Driver
Outside Rearview Mirror - Driver
Component Connector End Views

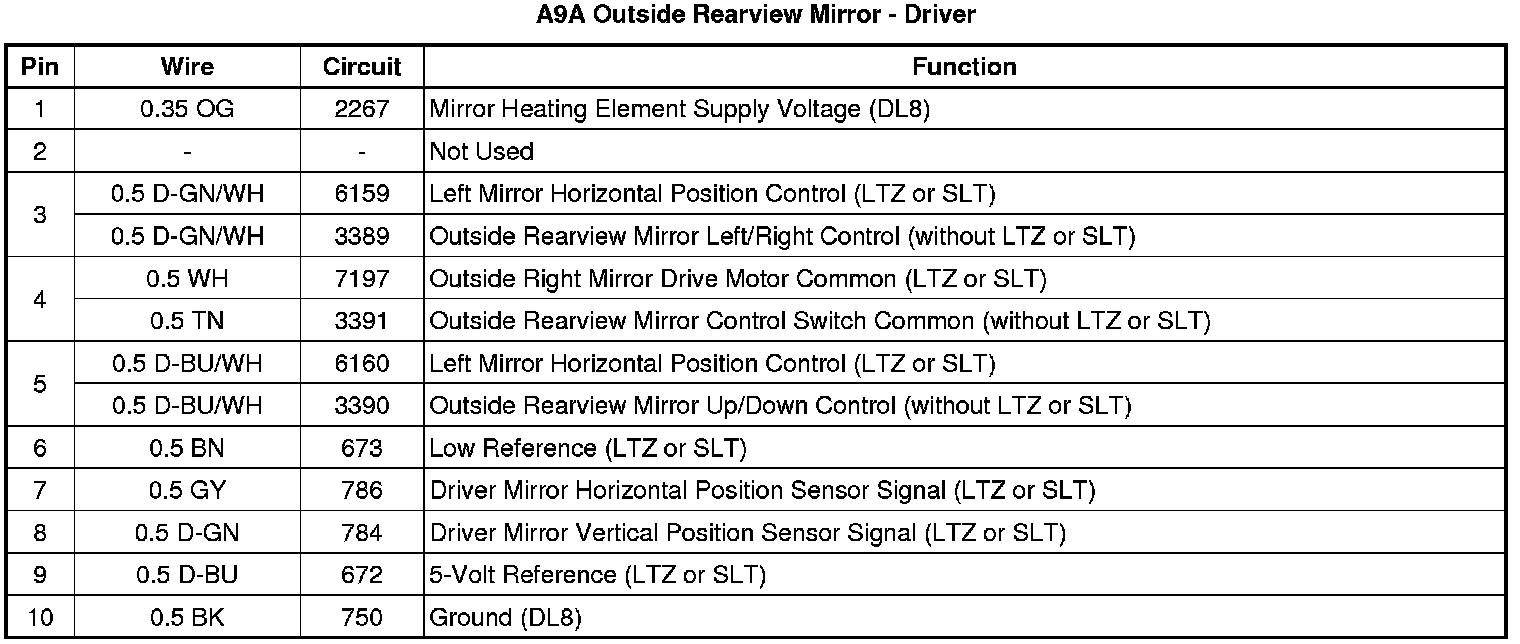

A9A Outside Rearview Mirror - Driver
