16. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

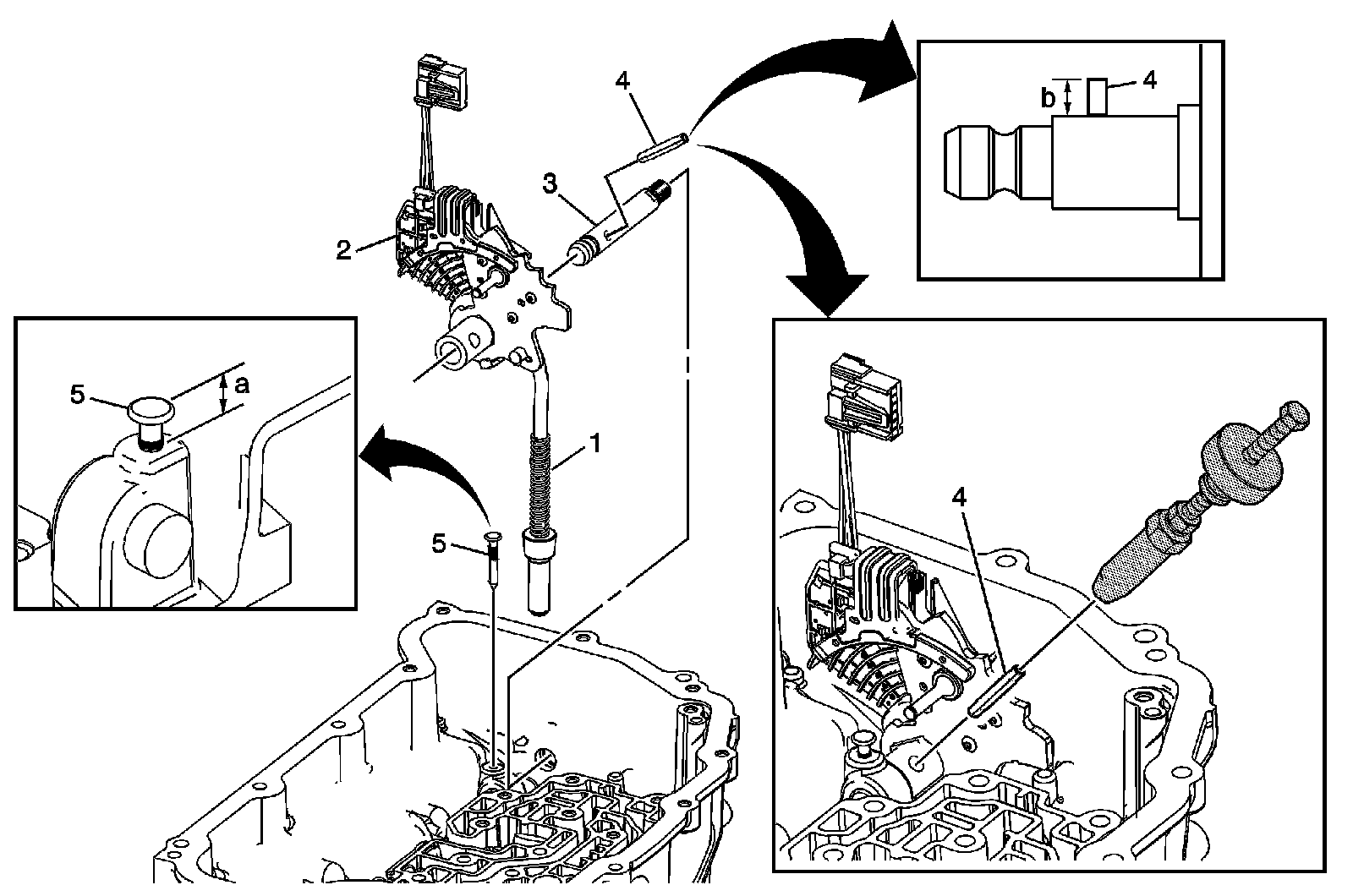

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

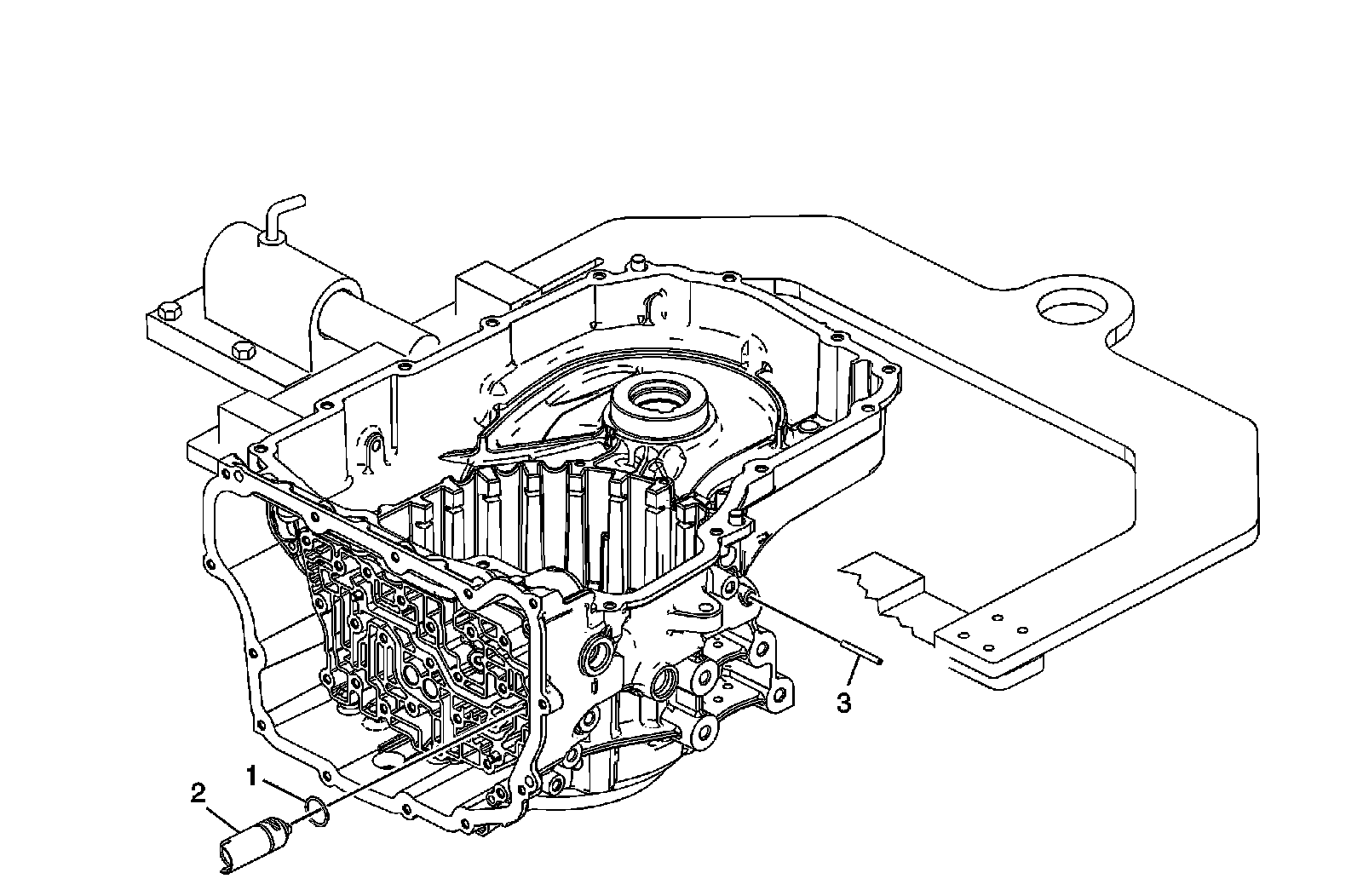

Park Pawl Actuator Guide Installation

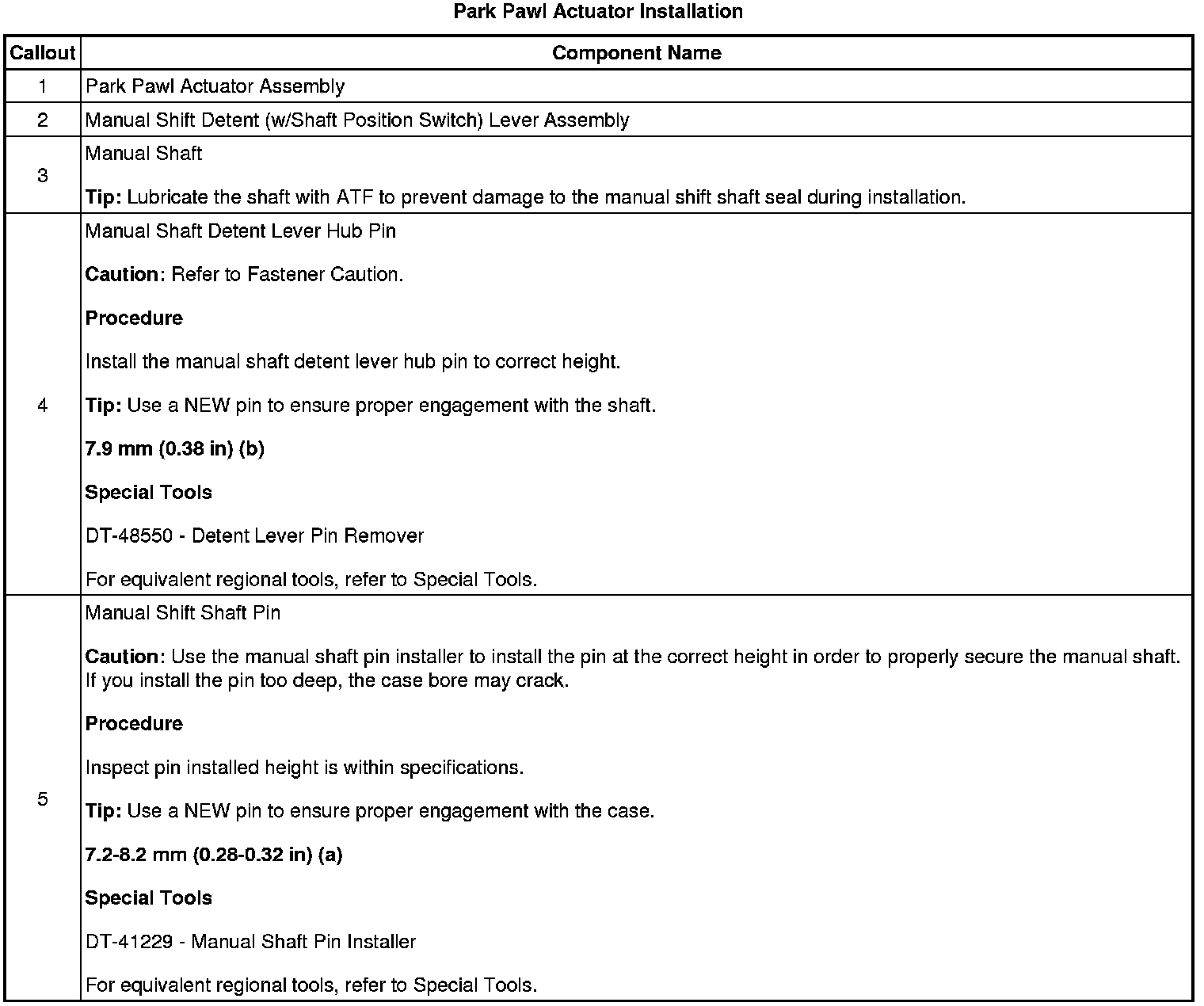

Park Pawl Actuator Installation
