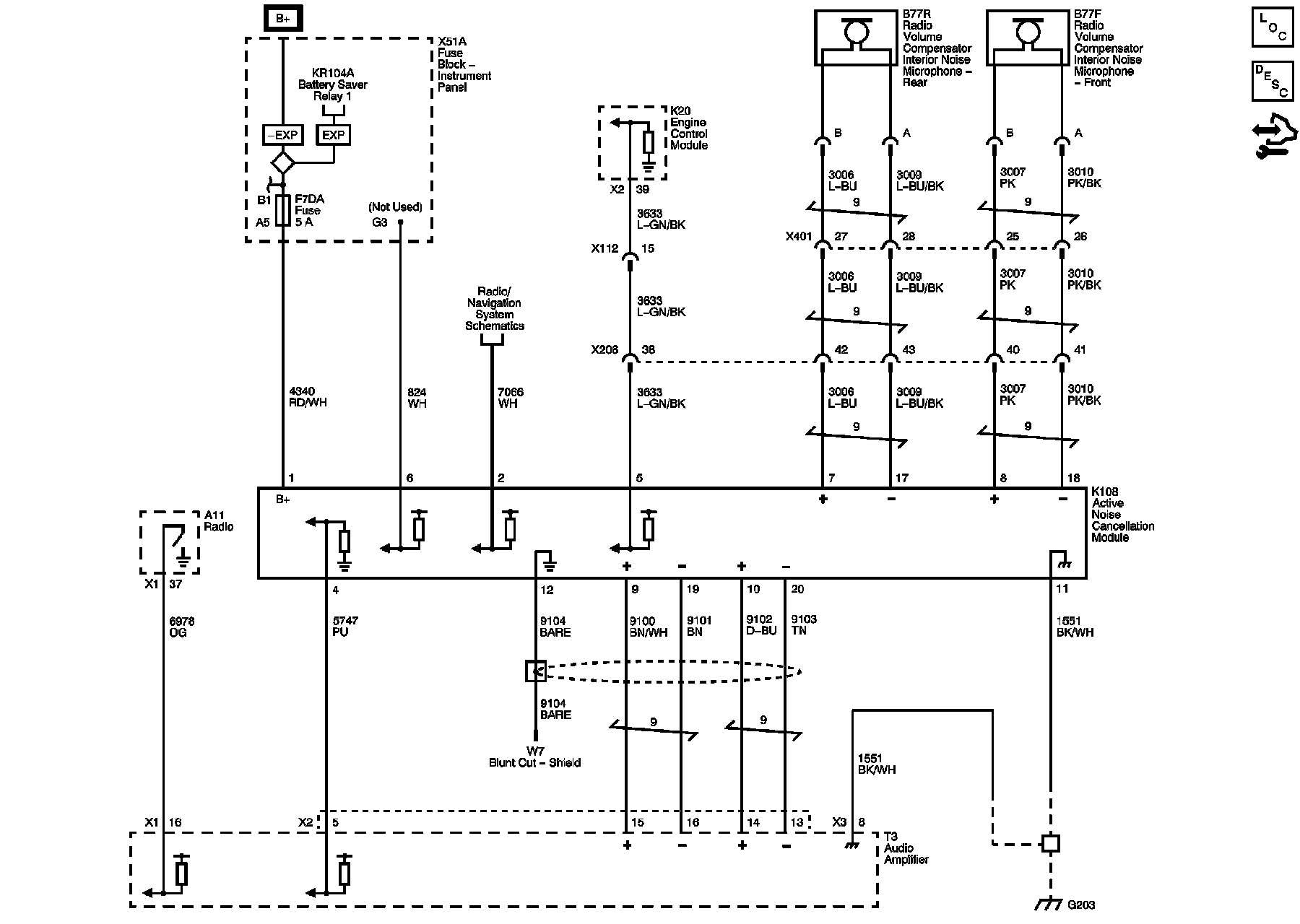

Active Noise Cancellation Schematics




Active Noise Cancellation Schematics

VQN





Master Electrical Component List
10 Equinox Active Noise Cancellation Description and Operation
Control Module References
F5DA, F7DA, F9DA, F11DA, and F19DA Fuses
Remote Device Enable
Master Electrical Schematic Icons
G203
