86. Oil Pump Suction Pipe and Screen Assembly Installation

Oil Pump Suction Pipe and Screen Assembly Installation




1. Install a new oil pump pipe gasket.

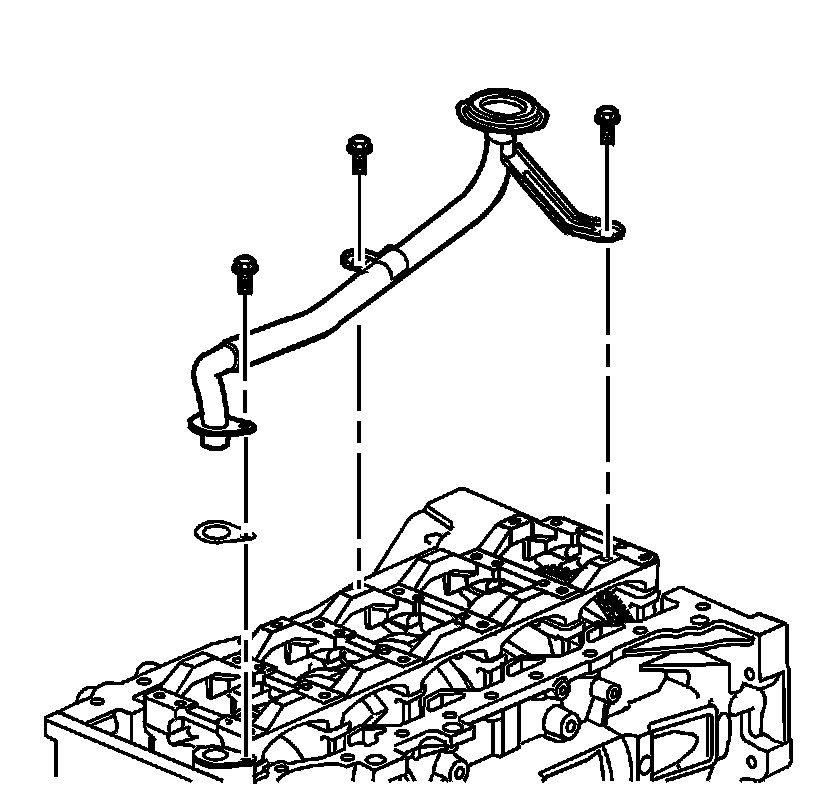

2. Install the oil pump pipe and screen assembly.
3. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the oil pump pipe bolt threads.

Caution: Refer to Fastener Caution Fastener Caution.

4. Install the oil pump pipe and screen assembly bolts. Tighten the oil pump pipe and screen assembly bolts to 10 Nm (89 lb in).
