Window Motor - Right Rear (Crew Cab)
Window Motor - Right Rear (Crew Cab)

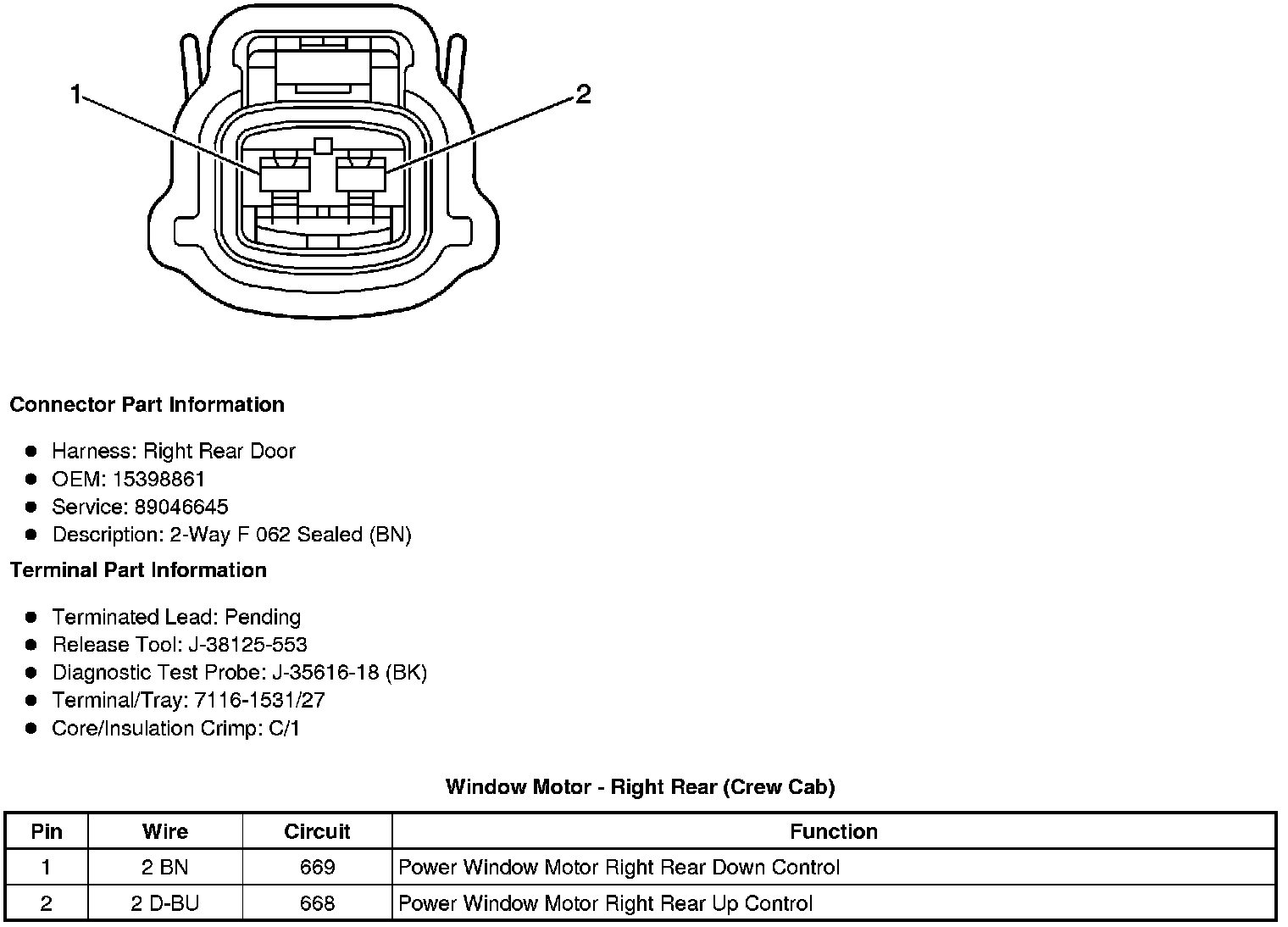

Component Connector End Views
Window Motor - Right Rear (Crew Cab)
