4. Counter Gear Shaft Disassemble

Counter Gear Shaft Disassemble

Tools Required

J 22912-B Split-Plate Bearing Puller




1. Inspect the countershaft front bearing for being faulty. Refer to Bearings and Spacers Cleaning and Inspection 10. Bearings and Spacers Cleaning and Inspection.
2. If the bearing is faulty, remove the countershaft front bearing retaining ring.

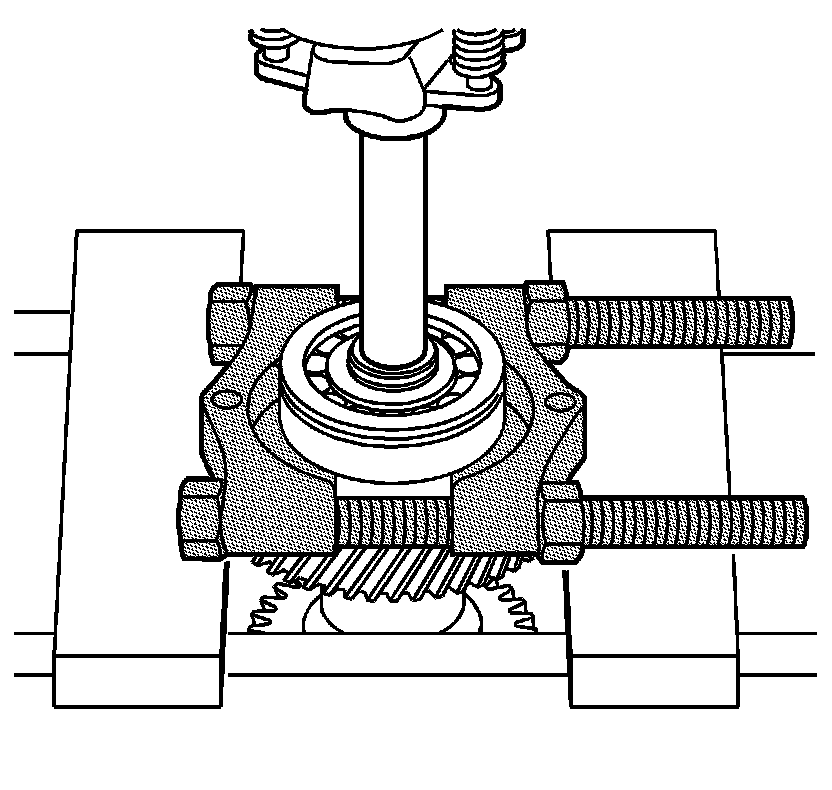

3. Using a hydraulic press and J 22912-B , remove the front bearing from the countershaft.
4. Remove the bearing collar race from the countershaft.
5. Discard the bearing. Do not use the bearing after removal.
