Drive/Propeller Shaft: Locations

Driveline Disassembled Views

Front Drive Propeller Shaft




1 - Universal Joint Spider Assembly
2 - Propeller Shaft Tube Assembly

One-Piece Propeller Shaft




1 - Propeller Shaft Slip Yoke
2 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3 - Propeller Shaft Universal Joint
4 - Propeller Shaft Tube
5 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring
6 - Propeller Shaft Universal Joint
7 - Propeller Shaft Bearing Retainer
8 - Propeller Shaft Bearing Retainer Bolt

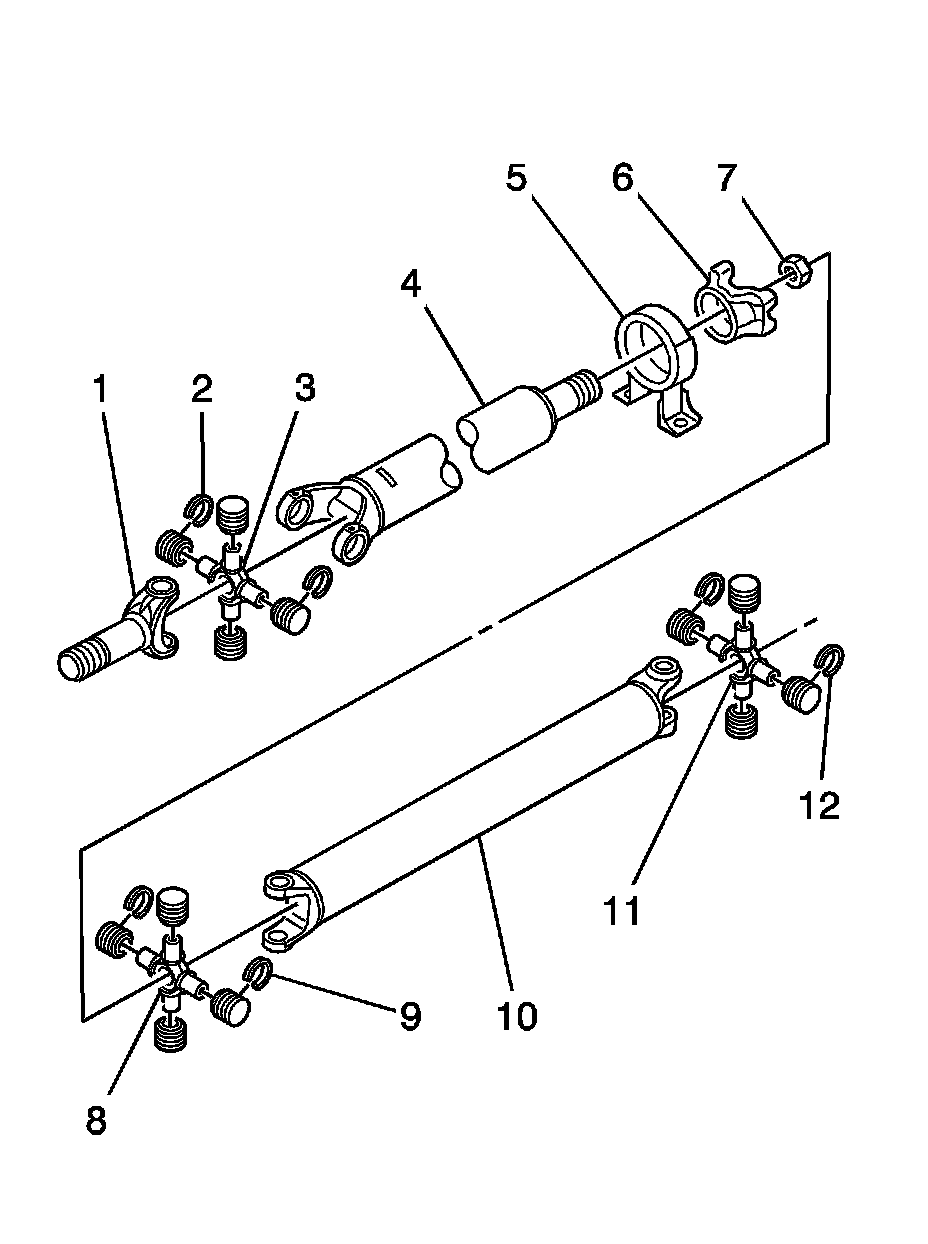

Two-Piece Propeller Shaft




1 - Propeller Shaft Slip Yoke
2 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring
3 - Propeller Shaft Universal Joint and Bearing
4 - Propeller Shaft Tube
5 - Propeller Shaft Center Bearing
6 - Propeller Shaft Yoke
7 - Propeller Shaft Yoke Retaining Nut
8 - Propeller Shaft Universal Joint and Bearing
9 - Propeller Shaft Universal Joint Bearing Retaining Ring
10 - Propeller Shaft Tube
11 - Propeller Shaft Universal Joint and Bearing
12 - Propeller Shaft Universal Joint Bearing Retaining Ring
