Transmission Mount Replacement (4WD)

Transmission Mount Replacement (4WD)

Removal Procedure

1. Remove the transmission support.

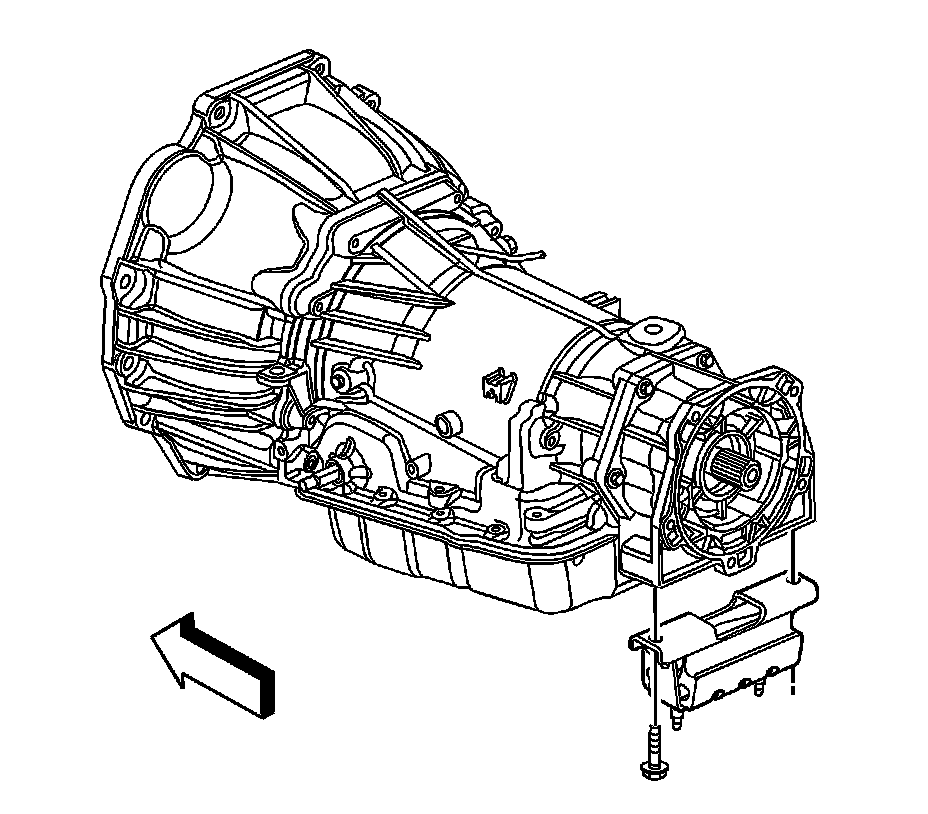

2. Remove the transmission mount bolts.
3. Remove the transmission mount from the vehicle.

Installation Procedure




1. Install the transmission mount to the vehicle.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the bolts and tighten to 55 Nm (41 lb ft).
3. Install the transmission support.
