81. Transmission Fluid Pan Installation




Transmission Fluid Pan Installation

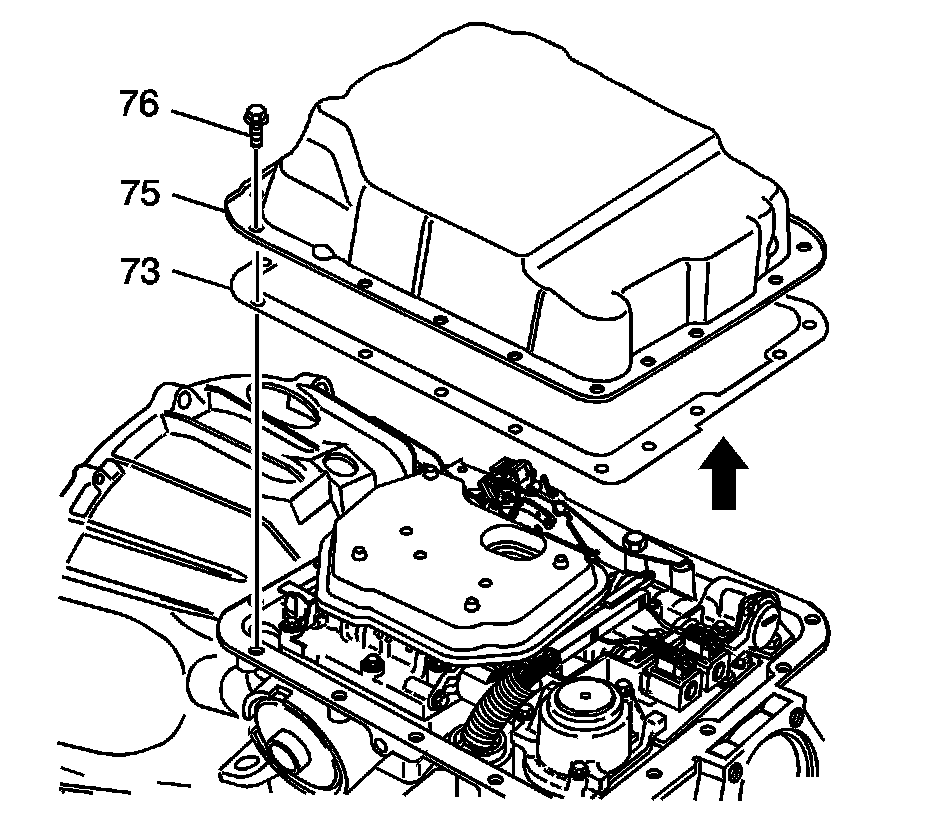

1. Place the transmission oil pan gasket (73) on the case.
2. Place the transmission oil pan (75) on the case.

Caution: Refer to Fastener Caution Fastener Caution.

3. Install all of the transmission oil pan screws (76). Tighten the screws to 16 Nm (11.8 lb ft).
